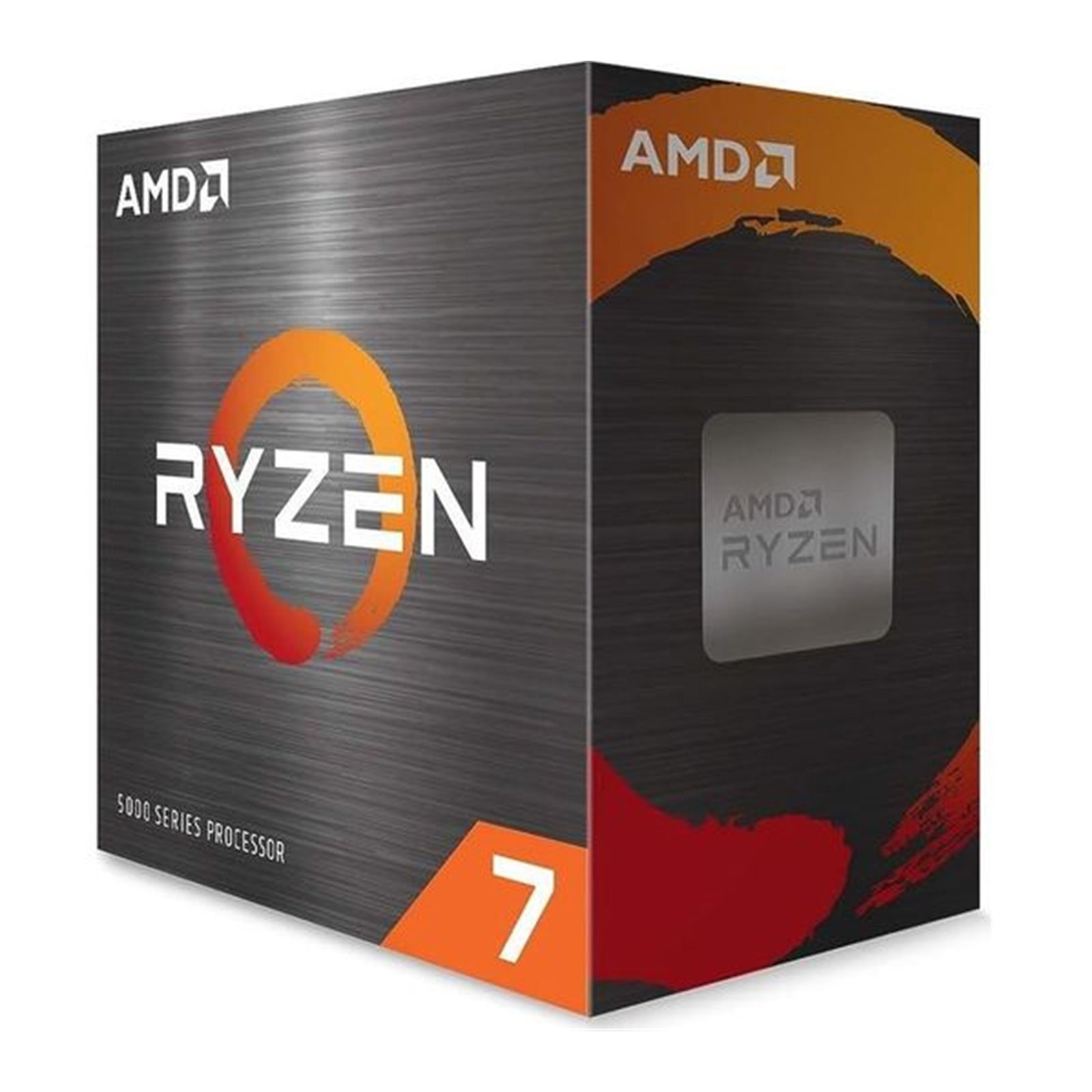

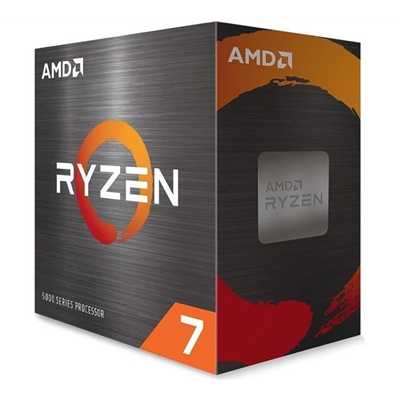

AMD Ryzen 7 5800XT
Specifications
Name
AMD Ryzen 7 5800XT
Family
Ryzen
Series
Ryzen 5000 Series
Form Factor
Boxed Processor , Desktops
Former Codename
Vermeer
Processor Architecture
Zen 3
# of CPU Cores
8
Multithreading (SMT)
Yes
# of Threads
16
Max. Boost Clock
Up to 4.8 GHz
Base Clock
3.8 GHz
L1 Cache
512 KB
L2 Cache
4 MB
L3 Cache
32 MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Processor Technology for I/O Die
12nm (Globalfoundries)
CPU Compute Die (CCD) Size
74mm²
I/O Die (IOD) Size
125mm²
Package Die Count
2
Unlocked for Overclocking
Yes
CPU Socket
AM4
Supporting Chipsets
X570 , B550 , A520 , X470 , B450
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax)
90°C
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 3.2 Gen 1 (5Gbps)
0
Native USB 2.0 (480Mbps)
0
Native SATA Ports
2
PCI Express Version
PCIe 4.0
Native PCIe Lanes (Total/Usable)
24 , 20
Additional Usable PCIe Lanes from Motherboard
amd_x570 16x Gen 4
amd_x470 2x Gen 3, 8x Gen 2
NVMe Support
Boot , RAID0 , RAID1 , RAID10
System Memory Type
DDR4
Memory Channels
2
Max. Memory
128 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Graphics Model
Discrete Graphics Card Required
Supported Technologies
AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium
Warranty:
AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.
Coverage
Year 1: Return to Target or AMD for warranty service.
Years 2-3: Warranty service provided directly by AMD
AMD Warranty Support
AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html
Please Note: First-time users must create an AMD account to access warranty services.
AMD Help & Support:
https://www.amd.com/en/support.html
Required Documentation for AMD Warranty Claims
- 1. Product details including serial number and model number.
- 2. Clear explanation of the problem you're experiencing
- 3. Proof of purchase (receipt or invoice).
There are currently no data sheets available for this product.
