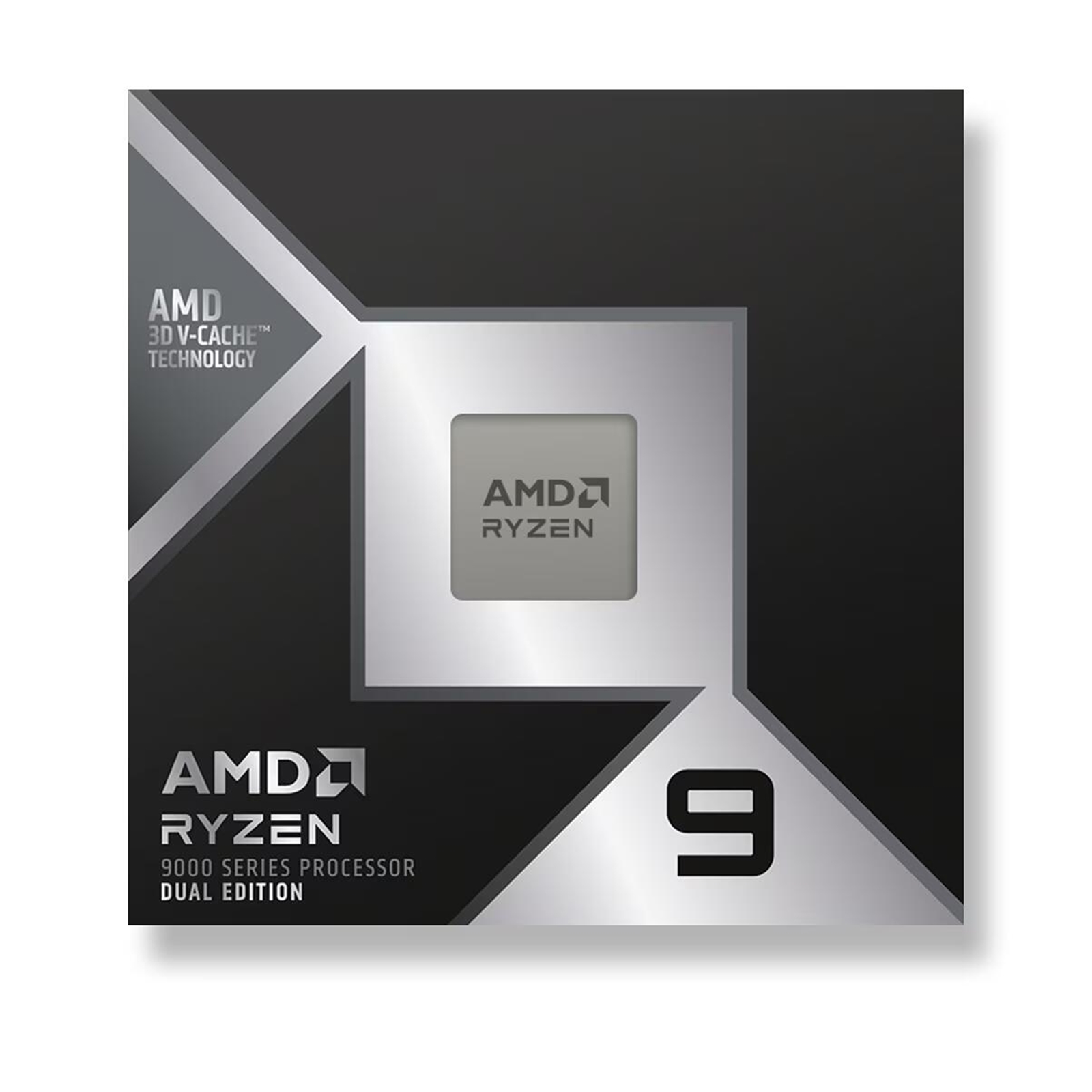

AMD Ryzen 9 9950X3D2 Dual Edition with Radeon Graphics, 16 Core AM5 Processor, 32Threads, 4.3GHz up to 5.6GHz Boost, 192MB Cache, 200W, No Fan, Radeon Graphic 9

PRAMD-9950X3D2
Key Specifications
SocketAM5
On-Chip GraphicsRyzen
Speed5.6GHz
Core Quantity16
PrefixRyzen 9
/productImages/80/PRAMD-9950X3D2.JPG
/productImages/80/214417.JPG
/productImages/80/214418.JPG
Manufacturer : AMD
EAN : 0730143318327
Manufacturer Part Code : 100-100001978WOF
Weight : 0.1 kg
Login For Pricing

Key Specifications
SocketAM5
On-Chip GraphicsRyzen
Speed5.6GHz
Core Quantity16
PrefixRyzen 9
Manufacturer :
AMD

EAN :
0730143318327

Manufacturer Part Code :
100-100001978WOF

Weight :
0.1 kg
Recommended Products
1289Motherboards
See details
1287Air Cooling
See details
1451Liquid Cooling
See details
1288Paste
See details

AMD Ryzen 9 9950X3D2 Dual Edition

The World's First Dual AMD 3D V-Cache Technology-Based Processor to Unlock a New Future of Computing for Developers and Creators

General Specifications

Name
AMD Ryzen 9 9950X3D2 Dual Edition

Family
Ryzen

Series
Ryzen 9000 Series

Form Factor
Desktops , Boxed Processor

Market Segment
Enthusiast Desktop

Regional Availability
Global

Former Codename
Granite Ridge AM5

Processor Architecture
Zen 5

# of CPU Cores
16

Multithreading (SMT)
Yes

# of Threads
32

Max. Boost Clock
Up to 5.6 GHz

Base Clock
4.3 GHz

L1 Cache
1280 KB

L2 Cache
16 MB

L3 Cache
192 MB

Default TDP
200W

Processor Technology for CPU Cores
TSMC 4nm FinFET

Processor Technology for I/O Die
TSMC 6nm FinFET

Package Die Count
3

Unlocked for Overclocking
Yes

AMD EXPO Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Curve Optimizer Voltage Offsets
Yes

AMD Ryzen Master Support
Yes

CPU Socket
AM5

Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64

Thermal Solution (PIB)
Not Included

Recommended Cooler
Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
95°C

*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps)
4

Native USB 2.0 (480Mbps)
1

PCI Express Version
PCIe 5.0

Native PCIe Lanes (Total/Usable)
28 , 24

NVMe Support
Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type
DDR5

Memory Channels
2

Max. Memory
256 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600

ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model
AMD Radeon Graphics

Graphics Core Count
2

Graphics Frequency
2200 MHz

USB Type-C DisplayPort Alternate Mode
Yes

Security

AMD Secure Processor
Yes

AMD Platform Secure Boot
Yes

Windows Secure Boot
Yes

UEFI Secure Boot
Yes

Windows Device Guard
Yes

Supervisor Mode Execution Prevention (SMEP)
Yes

Guest Mode Execution (GMET) Trap
Yes

Virtualization-Based Security (VBS)
Yes

Windows Secured-Core PC
Yes

Firmware TPM
Yes

AMD-V (SVM)
Yes

AMD AVIC (Interrupt Virtualization)
Yes

AMD-Vi (I/O MMU Virtualization)
Yes

Second Level Address Translation (SLAT)
Yes

Advanced Encryption Standard New Instructions (AES-NI)
Yes

AMD Enhanced Virus Protection (NX bit)
Yes

AMD Shadow Stack
Yes
Manufacturer's Website:
www.amd.co.uk
Warranty:

AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.

Coverage

Year 1: Return to Target or AMD for warranty service.

Years 2-3: Warranty service provided directly by AMD

AMD Warranty Support

AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html

Please Note: First-time users must create an AMD account to access warranty services.

AMD Help & Support: https://www.amd.com/en/support.html

Required Documentation for AMD Warranty Claims

  • 1. Product details including serial number and model number.
  • 2. Clear explanation of the problem you're experiencing
  • 3. Proof of purchase (receipt or invoice).
  • 4. Photo of the CPU
FEATURES
Compatible operating systems Windows 10/11 x64, RHEL x86 64-bit, Ubuntu x86 64-bit
Supported instruction sets AES, AVX-512, AVX 2.0, AVX, FMA3, SSE2, SSE4.2, SSE4.1, SSE3, SSE, SSSE3
PCI Express slots version 5.0
Maximum number of PCI Express lanes 28
Market segment Desktop
GRAPHICS
On-board graphics card model AMD Radeon Graphics
Discrete graphics card model Not available
On-board graphics card Yes
On-board graphics card base frequency 2200 MHz
Discrete graphics card No
I/O CONFIGURATION
USB version 2.0/3.2 Gen 2 (3.1 Gen 2)
USB ports quantity 5
MEMORY
ECC Yes
Memory channels Dual-channel
Maximum internal memory supported by processor 256 GB
Memory types supported by processor DDR5-SDRAM
Memory clock speeds supported by processor 5600,3600 MHz
PACKAGING DATA
Package type Box
PROCESSOR
Processor model 9950X3D2
Processor manufacturer AMD
Processor lithography 4 nm
Processor family AMD Ryzen™ 9
Processor socket Socket AM5
Package type Box
Processor cores 16
Processor threads 32
Compatible chipsets AMD A620, AMD X670E, AMD X670, AMD B650E, AMD B650, AMD X870, AMD X870E, AMD B840, AMD B850
Processor operating modes 64-bit
Processor boost frequency 5.6 GHz
Processor cache 192 MB
Thermal Design Power (TDP) 200 W
Processor codename Granite Ridge AM5
Processor cache type L3
Cooler included No
Processor base frequency 4.3 GHz
Processor generation AMD Ryzen 9000 Series
