| Socket | 1851 |
| On-Chip Graphics | Yes |
| Speed | 3.2GHz |
| Core Quantity | 24 |
| Prefix | Core i7 |
| Socket | 1851 |
| On-Chip Graphics | Yes |
| Speed | 3.2GHz |
| Core Quantity | 24 |
| Prefix | Core i7 |
| FEATURES | |
|---|---|
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| PCI Express slots version | 4.0, 5.0 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Scalability | 1S |
| Embedded options available | No |
| Thermal solution specification | PCG 2020A |
| Maximum number of PCI Express lanes | 24 |
| Market segment | Desktop |
| Use conditions | Workstation, PC/Client/Tablet |
| Direct Media Interface (DMI) Revision | 4.0 | GRAPHICS |
| On-board graphics card model | Intel® Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 2000 MHz |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card ID | 0x7D67 |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| Discrete graphics card | No |
| Hardware encode/decode codecs supported | H.264, H.265 (HEVC) |
| Xe-cores | 4 |
| AI software frameworks supported by GPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebGPU |
| AV1 encode/decode | Yes | MEMORY |
| ECC | Yes |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 256 GB | NEURAL PROCESSOR UNIT (NPU) |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| Neural processor unit (NPU) | Intel AI Boost |
| GPU performance up to | 8 TOPs | OPERATIONAL CONDITIONS |
| Maximum operating temperature | 105 °C | OTHER FEATURES |
| Maximum internal memory | 256 GB |
| L2 cache | 40960 KB |
| Graphics output | eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL | PACKAGING DATA |
| Package type | Box | PROCESSOR |

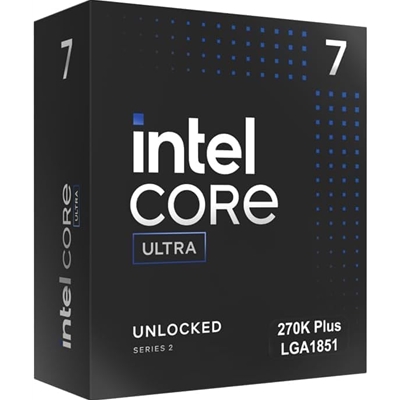

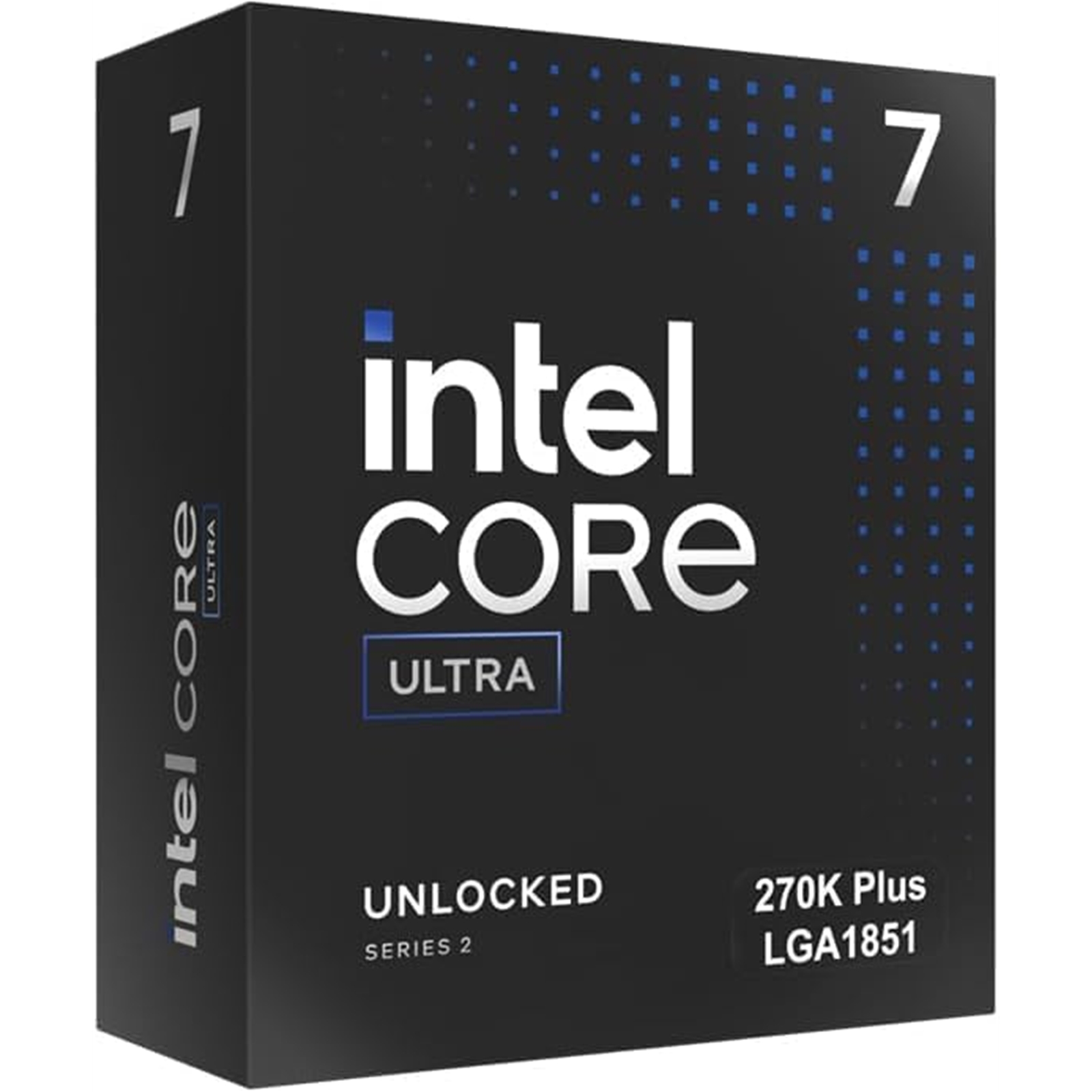

| Processor model | 270K Plus |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor socket | LGA 1851 (Socket V1) |
| Package type | Box |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 5.5 GHz |
| Processor cache | 36 MB |
| Processor codename | Arrow Lake |
| Processor cache type | Smart Cache |
| Processor ARK ID | 245692 |
| Efficient cores | 16 |
| Performance cores | 8 |
| Maximum number of DMI lanes | 8 |
| Processor base power | 125 W |
| Maximum turbo power | 250 W |
| Efficient-core base frequency | 3.2 GHz |
| Efficient-core boost frequency | 4.7 GHz |
| Performance-core base frequency | 3.7 GHz |
| Performance-core boost frequency | 5.4 GHz |
| Processor generation | Intel Core Ultra (Series 2) |
| Low Power Efficient-cores | 0 |
| AI software frameworks supported by CPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN | PROCESSOR SPECIAL FEATURES |
| IntelŽ Hyper Threading Technology (IntelŽ HT Technology) | No |
| IntelŽ Turbo Boost Technology | 2.0 |
| IntelŽ Quick Sync Video Technology | Yes |
| IntelŽ AES New Instructions (IntelŽ AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| IntelŽ Active Management Technology (IntelŽ AMT) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| IntelŽ Secure Key | Yes |
| Intel 64 | Yes |
| IntelŽ OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| IntelŽ Speed Shift Technology | Yes |
| IntelŽ Boot Guard | Yes |
| IntelŽ vPro? Platform Eligibility | Yes |
| Mode-based Execute Control (MBE) | Yes |
| IntelŽ Deep Learning Boost (IntelŽ DL Boost) | Yes |
| IntelŽ Volume Management Device (VMD) | Yes |
| IntelŽ Control-flow Enforcement Technology (CET) | Yes |
| IntelŽ Turbo Boost Max Technology 3.0 frequency | 5.5 GHz |
| IntelŽ Thunderbolt 4 | Yes |
| IntelŽ Thread Director | Yes |
| Intel vProŽ Enterprise Platform Eligibility | Yes |
| IntelŽ Threat Detection Technology (TDT) | Yes |
| IntelŽ Standard Manageability (ISM) | Yes |
| IntelŽ One-Click Recovery | Yes |
| IntelŽ Total Memory Encryption - Multi Key | Yes |
| IntelŽ Virtualization Technology with Redirect Protection (VT-rp) | Yes |
| Intel vProŽ Essentials Platform Eligibility | Yes |
| IntelŽ Stable IT Platform Program (SIPP) | Yes |
| IntelŽ Remote Platform Erase (RPE) | Yes |
| IntelŽ Deep Learning Boost (IntelŽ DL Boost) on GPU | Yes | TECHNICAL DETAILS |
| OpenCL version | 3.0 |
| Status | Launched |
| Launch date | Q1''26 | WEIGHT & DIMENSIONS |
| Processor package size | 45 x 37.5 mm |
