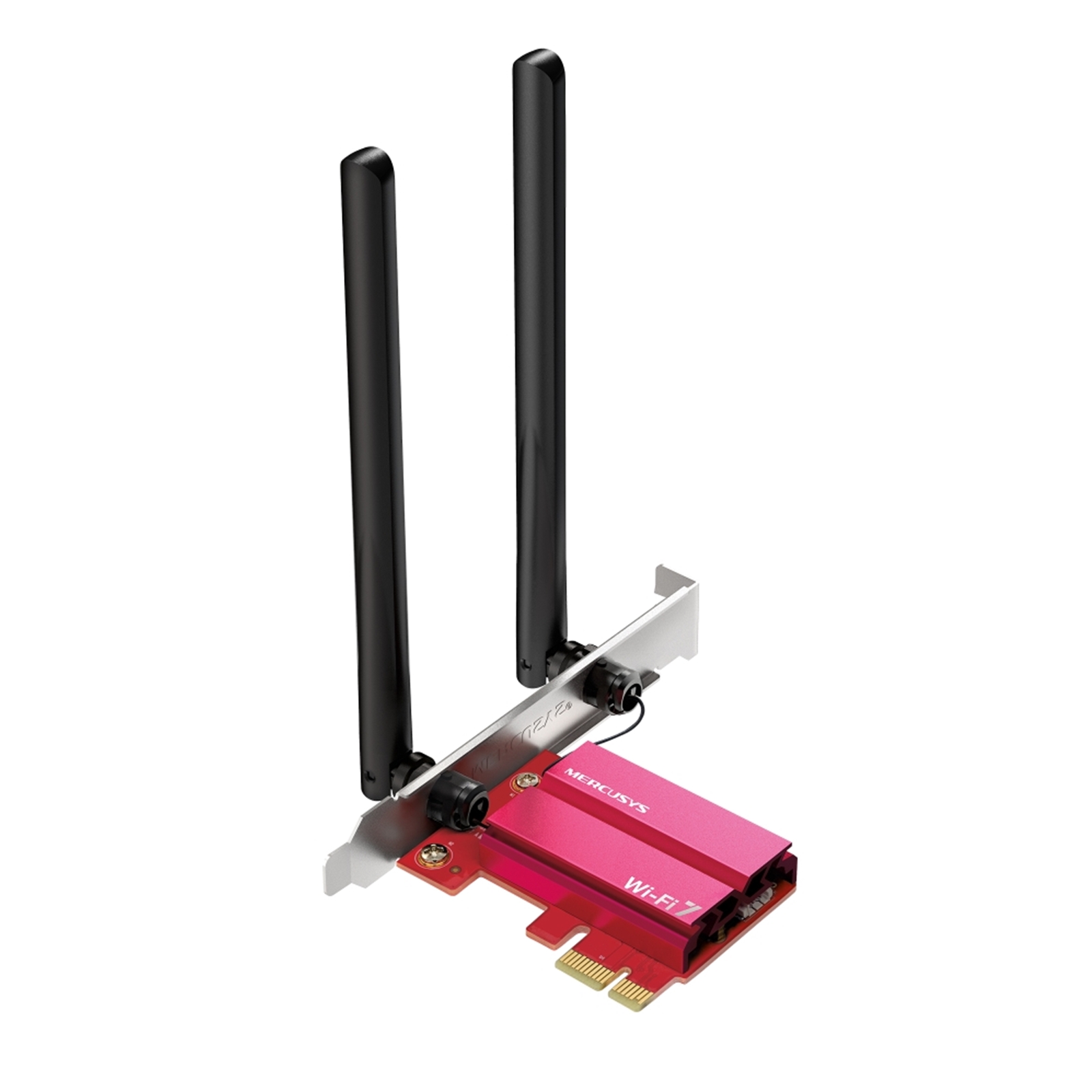

Mercusys MA37BE BE6500 WiFi 7 Bluetooth 5.4 PCIe Adapter
Unparalleled Tri-Band Speed
Boost your overall speeds up to 2882 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
Wi-Fi 7 Standard
Upgrade your PC with cutting-edge Wi-Fi 7 technology
Better Performance
More devices, lower latency, and less congestion
Bluetooth 5.4
Improved speed, range, security, and reliability over the previous generation
Broader Coverage
Two high-performance omnidirectional antennas ensure stronger signal transmissions and reception
Improved Security
The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Supported Operating Systems
Windows 11 only
Please note: MA37BE is not compatible with the low-profile bracket because of the fixed antennas.
Specifications
Wireless
Wireless Standards
IEEE 802.11 ax/be 6 GHz
IEEE 802.11 a/n/ac/ax/be 5 GHz
IEEE 802.11 b/g/n/ax/be 2.4 GHz
WiFi Speeds
2882 Mbps on 6 GHz
2882 Mbps on 5 GHz
688 Mbps on 2.4 GHz
Reception Sensitivity
6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE
Hardware
Dimensions
228 x 120.8 x 21.5 mm (9.0 x 4.8 x 0.85 in )
Antenna Type
2x Fixed High-Performance Omni-Directional Antennas
Others
Package Contents
BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (MA37BE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
System Requirements
Compatible with Windows 11(64-bit)
Warranty:
3 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
DESIGN
|
| Internal |
No |
| Antenna |
Yes |
| Component for |
PC |
| Antenna design |
External |
NETWORKING
|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms |
WPA-PSK, WPA2-PSK, WPA3-SAE |
| Bluetooth version |
5.4 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Bluetooth |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
PACKAGING CONTENT
|
| Quick installation guide |
Yes |
| Resource CD |
Yes |
PORTS & INTERFACES
|
| Interface |
WLAN / Bluetooth |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
SYSTEM REQUIREMENTS
|
| Windows operating systems supported |
Windows 11 x64 |
WEIGHT & DIMENSIONS
|
| Height |
21.5 mm |
| Width |
228 mm |
| Depth |
120.8 mm |
