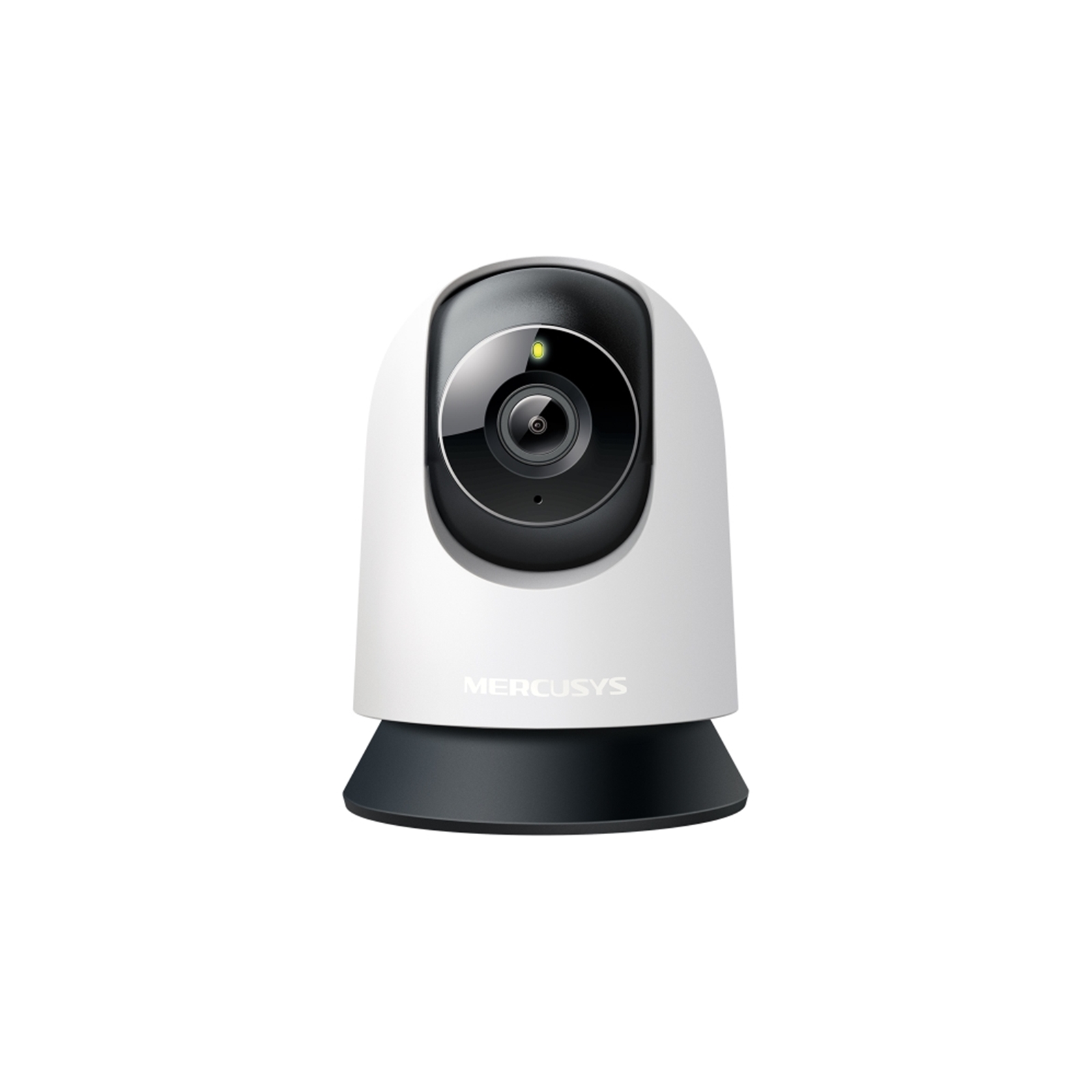

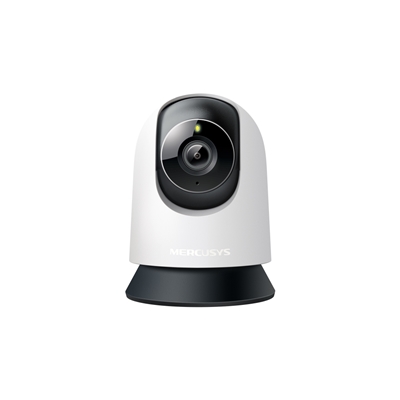

Mercusys MC210 Pan/Tilt Home Security Wi-Fi Camera

High-Definition Video
Features 2K 3MP high-definition video, providing users with clear and detailed footage.

Pan and Tilt
Offers 360 degrees horizontal, enabling complete coverage of the area.

Smart Detection
Smartly tracks motion 24/7, ensuring subjects stay in view, even in complete darkness with night vision. Receive instant alerts for detected motion, people, or a baby's cries.

Night Vision
With advanced night vision up to 40 ft, MC210 allows users to monitor their homes around the clock.

Two-Way Audio
Hear and respond in real time through a built-in microphone and speaker. Interact with your family and pets at any time.

Free Local Storage
Supports microSD card up to 512 GB for local storage, providing a secure and cost-effective way to store footage.

Cloud Storage Supported
Store videos with MERCUSYS cloud storage services.

Customizable Block Zone
Tailor your privacy zone to block unwanted views with ease.

Voice Control
Compatible with Google Assistant and Amazon Alexa, offering hands-free control for users.

Specifications

Camera

Image Sensor
1/3"Progressive Scan CMOS Not Starlight Sensor

Lens
Focal Length: 4 mm
Aperture: F2.0
Field of View: 87 degrees (Diagonal), 74 degrees(Horizontal), 40 degrees(Vertical)

Motion Range
Pan Mechanical Range: 340 degrees (360 degrees Pan Coverage)
Tilt Mechanical Range: 70 degrees (110 degrees Tilt Coverage)

Night Vision
850 nm IR LED (40 ft / 12 m)

Interface & Button
1x RESET Button
1x MicroSD Card Slot (Up to 512 GB)

Video & Audio

Maximum Resolution
2304 x 1296 px

Frame Rate
15/20/25/30 fps ( 15fps by default)

Digital Zoom
Supports 10.8x zoom

Video Compression
H.264

Live View
Yes

Image Enhancement
NO

Audio Input & Output
Built-in microphone and speaker

Audio Communication
2-way audio

Siren Volume
88dB (Level measured at 4-inch/10-cm distance)

Storage

Local Storage
Micro SD card slot
(Supports up to 512GB)

Cloud Storage
MERCUSYS Camera Care Cloud Storage Services (Subscription required)

Software
Security

Detection & Notifications

Sensor
NO

AI Detection
Motion detection
Person Detection
Baby Crying Detection

Activity Zones
Yes
*Only works with Motion Detection.

Output Notification
System Notification

Network
Network Connectivity
Connect via Wi-Fi

Wireless Connectivity
11Mbps(802.11b)
54Mbps(802.11g)
72.2Mbps(802.11n)

Max. Distance Between Hub and Camera/Doorbell
NO

RTSP
Yes

ONVIF
Yes

Power

Power Source
9V DC Power Adapter

Input Voltage
100-240VAC, 50/60Hz, 0.3A

Output Voltage
9.0V/0.6A

General
Smart Integration
Google Assistant, Amazon Alexa

Weather Resistance
NO

Mounting Options
Tabletop
Ceiling-Mounted

Operating Temperature
0 oC ~ 40 oC (32°F ~ 104°F )
Storage Temperature
-40°C~60°C (-40°F~140°F)
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
0%~90%RH, Non-condensing

Charging Temperature
NO

Dimensions ( W x D x H )
78.4 x 78.4 x 105.6 mm
(3.09 x 3.09 x 4.16 in)

Others

Certifications
CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Package Contents
Pan/Tilt Home Security Wi-Fi Camera (MC210) x 1
Power Adapter x 1
Mounting Anchors x 2
Mounting Screws x 2
Mounting Template Sticker x 1
Quick Start Guide
