A New Era of Home WiFi

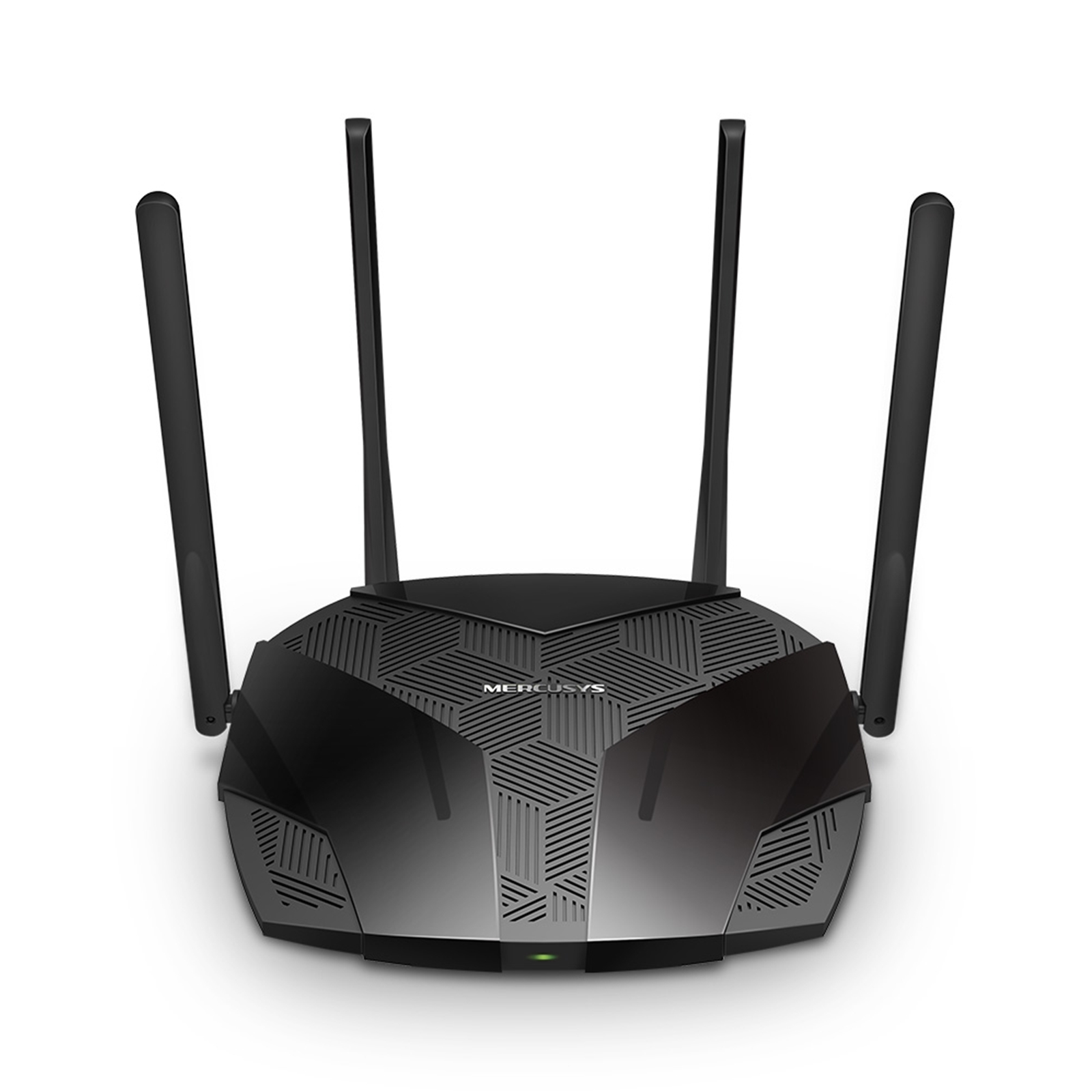

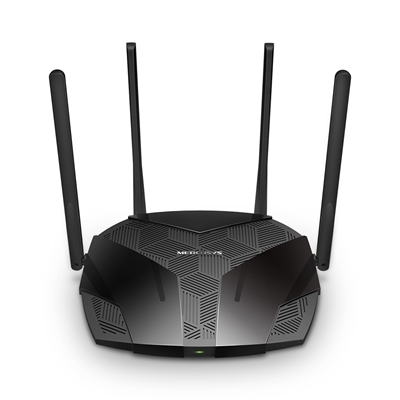

AX3000 Dual-Band Wi-Fi 6 Router

Gigabit WiFi Connectivity, Always Up-to-Date
Doubling the bandwidth with 160 MHz channels,1 MR80X unlocks the limits of the previous channel width and provides next-level speeds for your devices. With WiFi 6 speeds up to 3 Gbps,2 finish large-file downloads in minutes and experience stunning 4K streaming without lag.

Connect 4x More Devices, All Simultaneously
Streaming or gaming on multiple devices brings more fun without dragging down performance. MR80X supports OFDMA and MU-MIMO1 to power up your WiFi by allowing multiple clients to transmit at the same time. This delivers 4x greater network capacity and efficiency in traffic-dense environments.

Reduce the Interference from Your Neighbors' WiFi
Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your neighbors. MR80X supports BSS Coloring to mark the data frames from different APs. This helps minimize the signal interference from your neighbors to improve transmission efficiency.

Eco-Friendly Power Saving
Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices' battery life.

More Targeted Signals that Penetrate Walls
Four external high-gain antennas armed with integrated signal amplifiers provide strong WiFi signals that reach farther. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.

The Latest WPA3 Protects Your Personal Network
The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks4.

Protect Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password

Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session's secret keys

Unbreakable 128-Bit Encryption
Creates an active defense against security threats and intruders

Smart Connect
Assigns Devices to the Best Band Automatically
Smart Connect allows each of MR80X's wireless bands to use the same wireless settings. MR80X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.

Powerful Qualcomm Chipset Minimizes Buffering and Lag
Powered by a highly integrated Qualcomm WiFi 6 chipset that combines a 64-bit dual-core CPU and an advanced 12-thread programmable network processor, MR80X enables stable connections for up to 256 devices.5 Your network can now handle massive data throughput, allowing numerous bandwidth-intensive tasks to run smoothly at the same time.

Specifications

Wireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

WiFi Speeds
2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Wireless Security
WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal

Wireless Functions
Enable/Disable Wireless Radio, WMM

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

VPN Server
OpenVPN, PPTP supported

Dimensions
8.2 x 6.8 x 1.6 in
(208.8 x 171.6 x 41.7 mm)

Interfaces
1x Gigabit WAN Port + 3x Gigabit LAN Ports

Button
Reset/WPS Button

Antenna Type
4x 5 dBi Fixed Omni-Directional Antennas

Package Contents
AX3000 Wi-Fi 6 Router MR80X
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
