Target Components

Supports 3rd-Party Drives: lease check our compatibility list for full details.
UGREEN NASync is widely compatible with third-party hard drives, including those from Western Digital, Seagate, Toshiba, and more.

Dual 10GbE Network Ports:
Two 10GbE high-speed network ports that can be aggregated into 20G bandwidth for download speeds of up to 2500MB/s.

12th Gen 10-core Intel Core Processor:
With a 12th Gen, 10-core 12-thread Intel Core i5 Processor, processing performance is improved by leaps and bounds compared to previous processors.

6-Bay, 196TB Massive Data Storage:
Equipped with six SATA and two M.2 NVMe drive bays, the NASync DXP6800 Pro has a maximum storage capacity of up to 196TB. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels. Store thousands of HD movies, pictures, and documents, Making NASync a movie library, photo album, and file storage space all in one.

One, All-Inclusive App:
Rather than downloading individual applications for specific functions, the NAS App incorporates these functions into one place. Access Storage Manager, Files, Photos and more, all from one convenient location.

Expandable 8GB DDR5 Memory:
8GB DDR5 4800MHz provide the latest in processing speeds and improved software and system performance.

AI Photo Album:
Automatically organizes your photos by recognizing faces, scenes, objects, and locations. It can also instantly remove duplicates, freeing up storage space and saving you time.

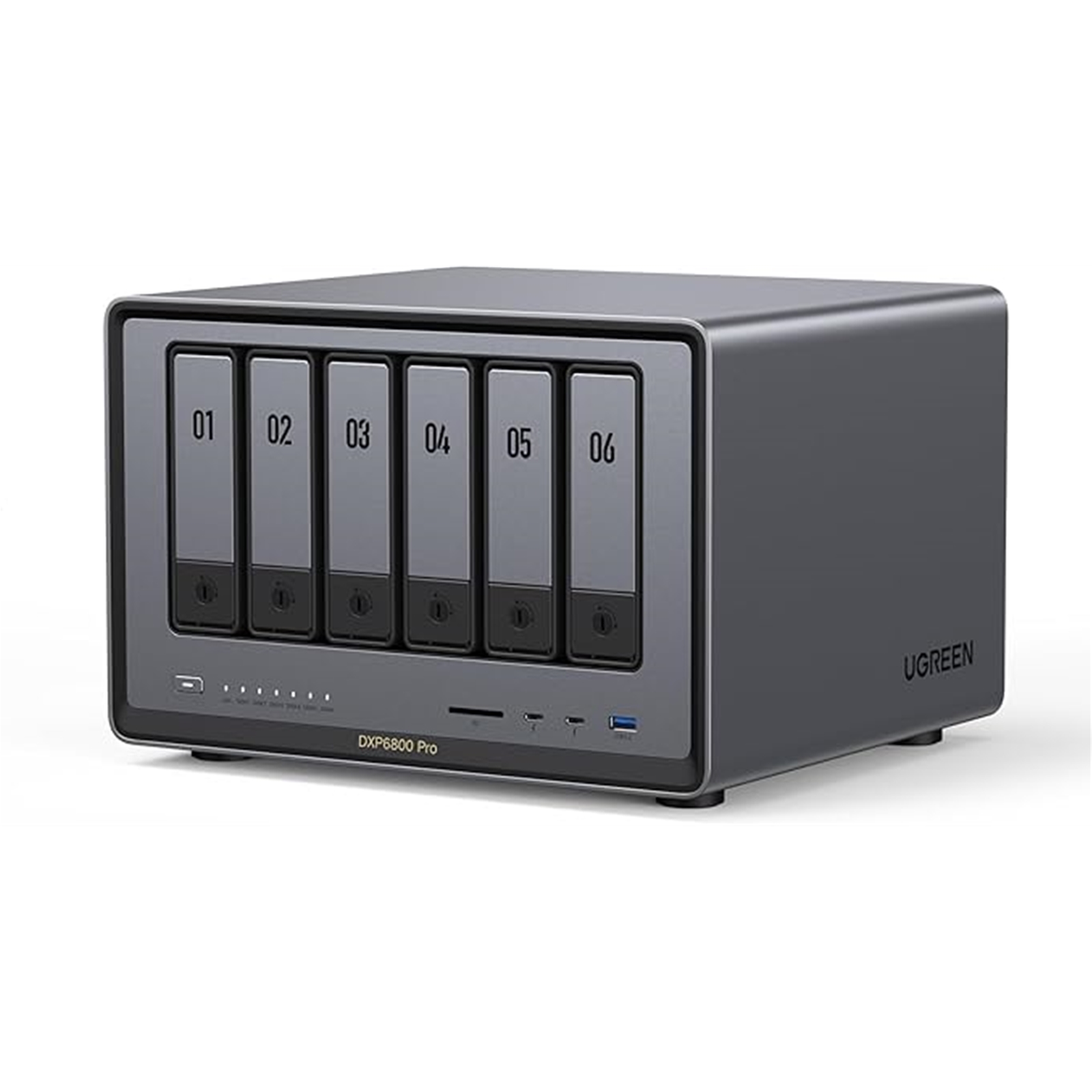

Model
DXP6800 Pro

Supported Language
English, Deutsch, Francais, Espanol, Portugues, Italiano

Drive Bays
6-Bay (SATA)

Operating System
UGOS Pro

CPU Model
1235u

CPU Brand & Architecture
Intel X86 12th Generation Intel Core i5 10 Cores 12 Threads

Memory (RAM)
8GB DDR5

ODECC
Supported

Expandable RAM (Max)
64GB

Flash Memory (System Disk)
SSD 128GB

SATA Drive Bays
6

M.2 SSD Drive Slots
2

RAID
JBOD/Basic/0/1/5/6/10

Maximum Storage
196TB (6x 30TB + 2x 8TB)

LAN Ports (RJ45)
2x 10GbE

PCIe Expansion
1x PCIe x4

Thunderbolt™ 4 Ports
2

High-Speed USB Ports (Front Panel)
2x Thunderbolt 4 (40Gb/s)

High-Speed USB Ports (Rear Panel)
2x USB-A (10Gb/s)

USB 2.0 (Rear Panel)
2x USB-A (480Mb/s)

SD Card Reader
SD 4.0

HDMI
8K

Wi-Fi
None

Product Dimensions
L11.54 x W10.16 x H7.87 inches

Power Consumption
43.07 W (drive access)
24.91 W(drive hibernation)
