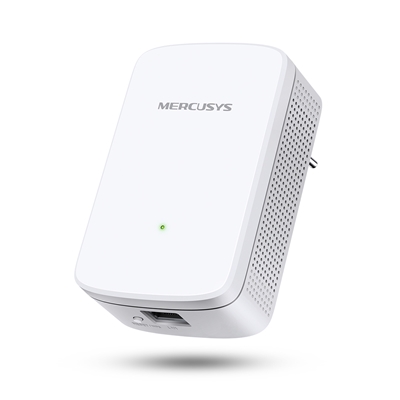

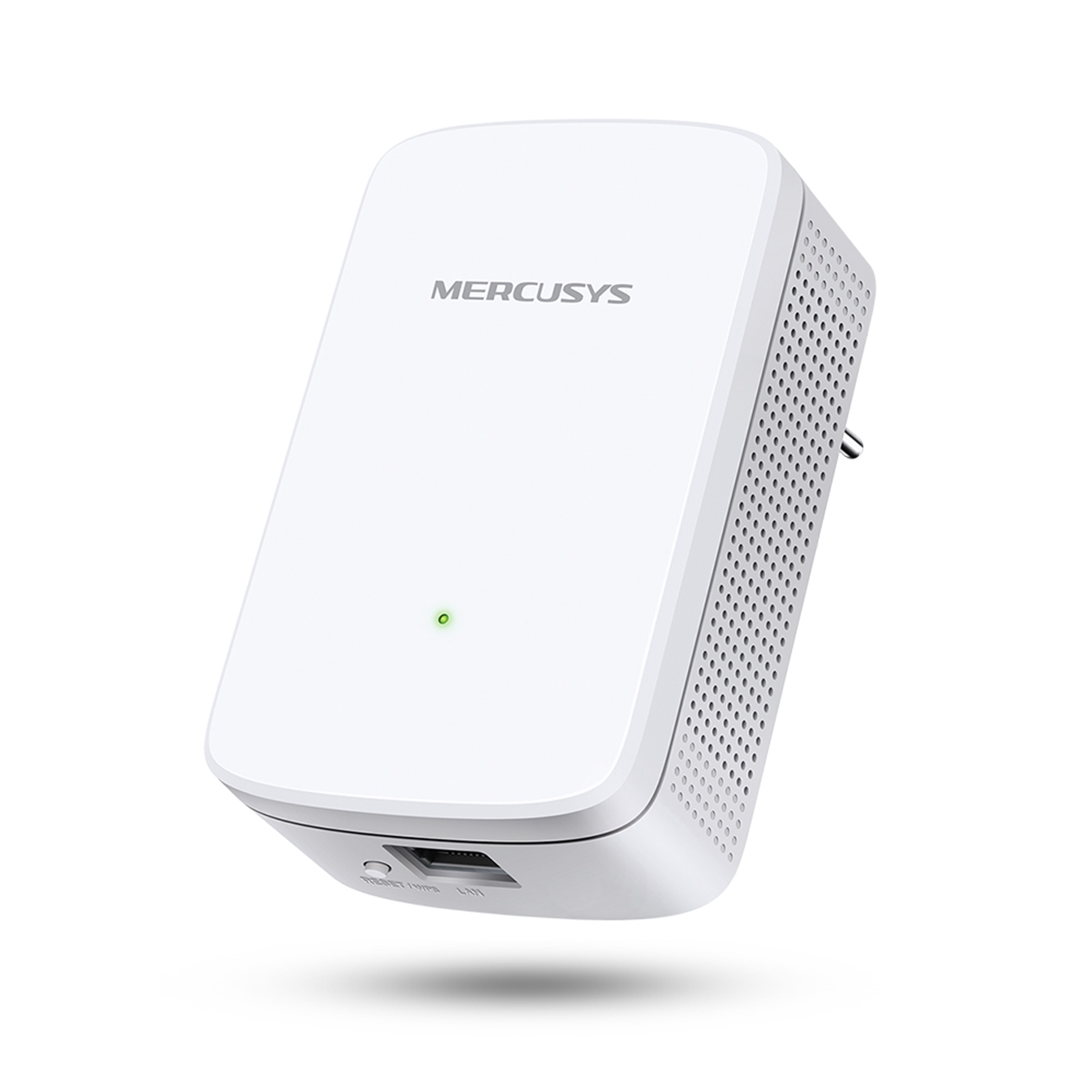

Mercusys 300 Mbps Wi-Fi Range Extender

Eliminate WiFi Dead Zones
Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly

300 Mbps Daily WiFi
Enjoy a fast and stable extended WiFi anywhere up to 300 Mbps, meeting the needs of your daily life

Easy One-Touch Setup
Simply press the WPS button to expand your WiFi coverage in seconds

Signal Indicator
Multicolor LED helps you find the right location for your range extender for the best WiFi extension

Fast 10/100 Mbps Port
Provides speedy wired connections for PCs, IPTVs, and game consoles
Works with Any Router or Wireless Access Point

Specifications

Wireless

Wireless Standards
IEEE 802.11b/g/n 2.4 GHz

Frequency
2.4 - 2.5 GHz

WiFi Speeds
Up to 300 Mbps

Reception Sensitivity
2.4GHz:
11B 1M < -94 dBm
11N HT40 MCS7 < -72 dBm

Transmission Power
= 20 dBm

Wireless Security
WPA-PSK/WPA2-PSK

Hardware

Dimensions
101 x 60 x 36 mm

Interfaces
10/100Mbps RJ45 Port

Button
RESET/WPS Button

Power
= 3.2 W

Others
Certifications
CE, RoHS

Package Contents
Wi-Fi Range Extender (ME10)
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing

Manufacturer's Website:

www.mercusys.com

Warranty:

3 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

DESIGN
Product colour	White
Reset button	Yes
ENERGY MANAGEMENT
Power consumption (typical)	3.2 W
NETWORKING
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA-PSK, WPA2-PSK
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	300 Mbit/s
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
PACKAGING CONTENT
Quick start guide	Yes
PERFORMANCE
Type	Network repeater
Data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
WPS push button	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
WEIGHT & DIMENSIONS
Height	101 mm
Width	60 mm
Depth	36 mm
