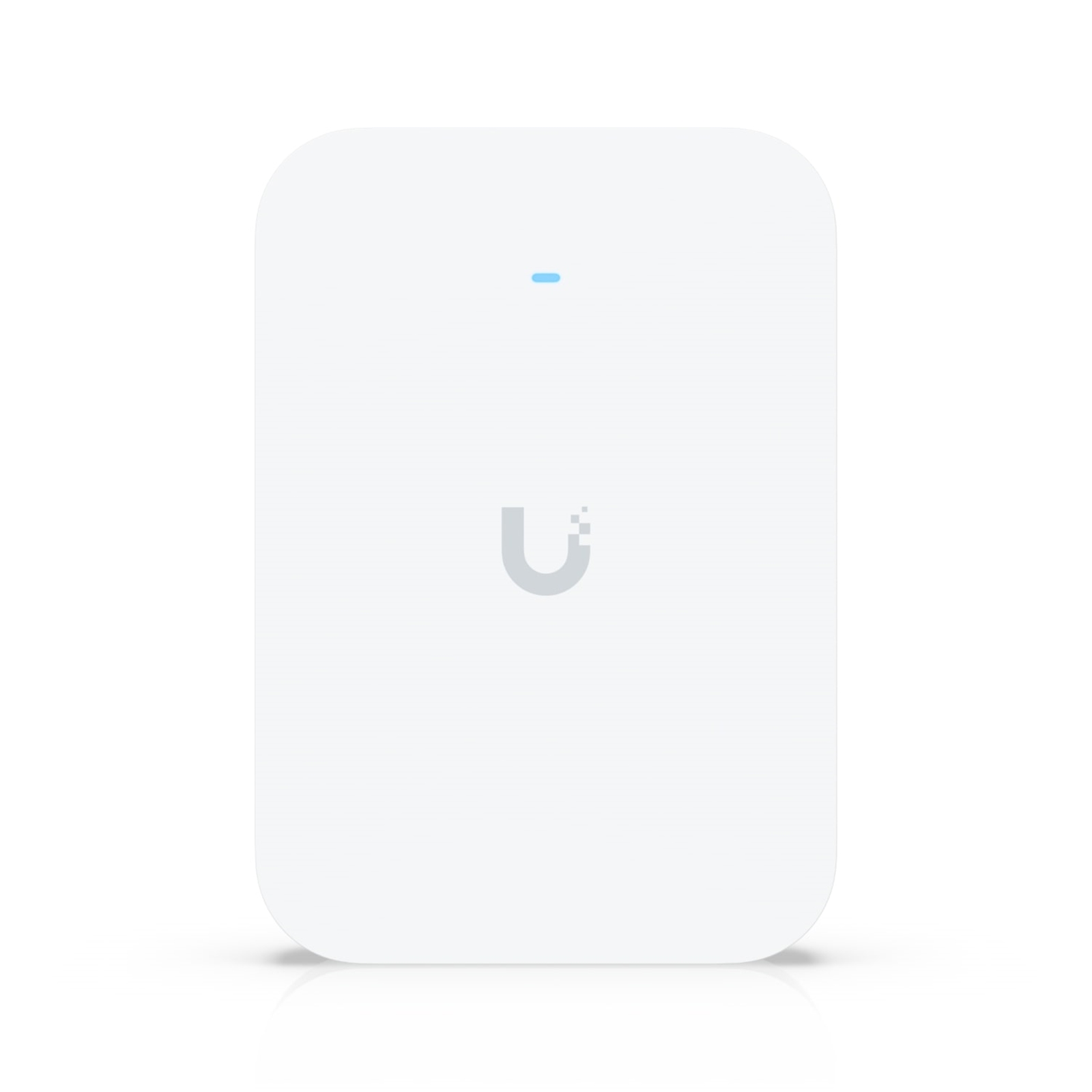

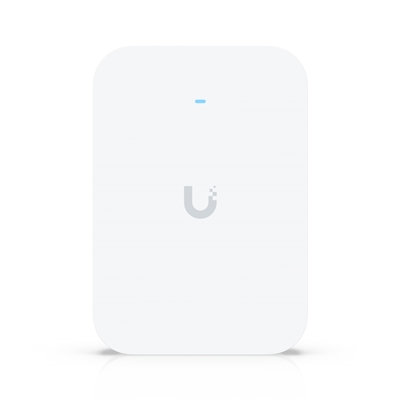

Ubiquiti Unifi (U7-Pro-XG-Wall) 6GHz-ready, WIFI 7 Access Point with 10Gbe support

NPUBI-U7PROXGW
Key Specifications
Connection TypeAccess Point
Speed688Mbps
Access PointYes
/productImages/80/NPUBI-U7PROXGW.JPG
/productImages/80/212694.JPG
/productImages/80/212695.JPG
/productImages/80/212696.JPG
/productImages/80/212697.JPG
/productImages/80/212698.JPG
/productImages/80/212699.JPG
Manufacturer : UBIQUITI
EAN : 810177162124
Manufacturer Part Code : U7-Pro-XG-Wall
Weight : 0 kg
Login For Pricing

Key Specifications
Connection TypeAccess Point
Speed688Mbps
Access PointYes
Manufacturer :
UBIQUITI

EAN :
810177162124

Manufacturer Part Code :
U7-Pro-XG-Wall

Weight :
0 kg
Recommended Products
1328Homeplugs
See details
1330NAS
See details
1326Routers & Access Points
See details
1335Network Cables
See details

Ubiquiti Unifi 6GHz-ready, WIFI 7 Access Point with 10Gbe support

Specifications

Overview

Dimensions
155 x 108 x 33.5 mm
(6.1 x 4.3 x 1.3'')

WiFi Standard
WiFi 7

Spatial Streams
6

Coverage Area
140 m² (1,500 ft²)

Max. Client Count
300+

Uplink
10 GbE

Mounting
Wall

Power Method
PoE+

Performance

MIMO
6 GHz - 2 x 2 (DL/UL MU-MIMO)
5 GHz - 2 x 2 (DL/UL MU-MIMO)
2.4 GHz - 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz - 5.8 Gbps (BW320)
5 GHz - 4.3 Gbps (BW240)
2.4 GHz - 688 Mbps (BW40)

Antenna Gain
6 GHz - 6 dBi
5 GHz - 6 dBi
2.4 GHz - 4 dBi

Max. TX Power
6 GHz - 24 dBm
5 GHz - 26 dBm
2.4 GHz - 23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates

802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Custom Branding Landing Page - Yes
Voucher Authentication - Yes
Payment-Based Authentication - Yes
External Portal Server Support - Yes
Password Authentication - Yes
Guest Network Isolation - Yes
Private Pre-Shared Key (PPSK) - Yes
WiFi Speed Limiting - Yes
Client Device Isolation - Yes
WiFi Schedules - Yes

Hardware

Max. Power Consumption
22W

Supported Voltage Range
42.5–57V DC

Networking Interface
(1) 10 GbE RJ45 port

Weight
505 g (1.1 lb)

Management
Ethernet

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Aluminum alloy

LEDs
System
W/B

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant
Yes

Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40 C (-22 to 104 F)

Ambient Operating Humidity
5 to 95% noncondensing

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Software

Application Requirements

UniFi Network
Version 10.0 and later

Mobile App
iOS version 10.29.3 and later
Android version 10.31.1 and later

Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna type Internal
Antenna gain level (max) 6 dBi
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
DESIGN
LED indicators Status
Product colour White
Reset button Yes
Housing material Metal, Polycarbonate (PC)
Placement Ceiling, Wall
ENERGY MANAGEMENT
Power over Ethernet (PoE) Yes
DC voltage range 42.5 - 57 V
Power consumption (max) 22 W
Power over Ethernet (PoE) type supported PoE+
FEATURES
Maximum data transfer rate 5800 Mbit/s
Frequency band 2.4, 5, 6 GHz
Number of users 300 user(s)
Networking standards IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Rate limiting Yes
Ethernet LAN data rates 1000,2500,5000,10000 Mbit/s
VLAN support Yes
2.4 GHz Yes
5 GHz Yes
MIMO Yes
Fast roaming Yes
Band steering Yes
MIMO type Multi User MIMO
Maximum data transfer rate (2.4 GHz) 688 Mbit/s
Maximum data transfer rate (5 GHz) 4300 Mbit/s
Fit AP mode features Hotspot 2.0
6 GHz Yes
Maximum data transfer rate (6 GHz) 5800 Mbit/s
Maximum Tx power (2.4 GHz) 23 dBmW
Maximum Tx power (5 GHz) 26 dBmW
Spatial streams 6
Coverage area 140 m²
Maximum Tx power (6 GHz) 24 dBmW
Wireless meshing Yes
LOGISTICS DATA
Quantity per pack 1 pc(s)
MANAGEMENT FEATURES
Access point management Wi-Fi schedule
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 40 °C
PACKAGING CONTENT
Mounting kit Yes
Quantity per pack 1 pc(s)
PACKAGING DATA
Mounting kit Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
SECURITY
Security algorithms PPSK
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight 505 g
Height 33.5 mm
Width 155 mm
Depth 108 mm
