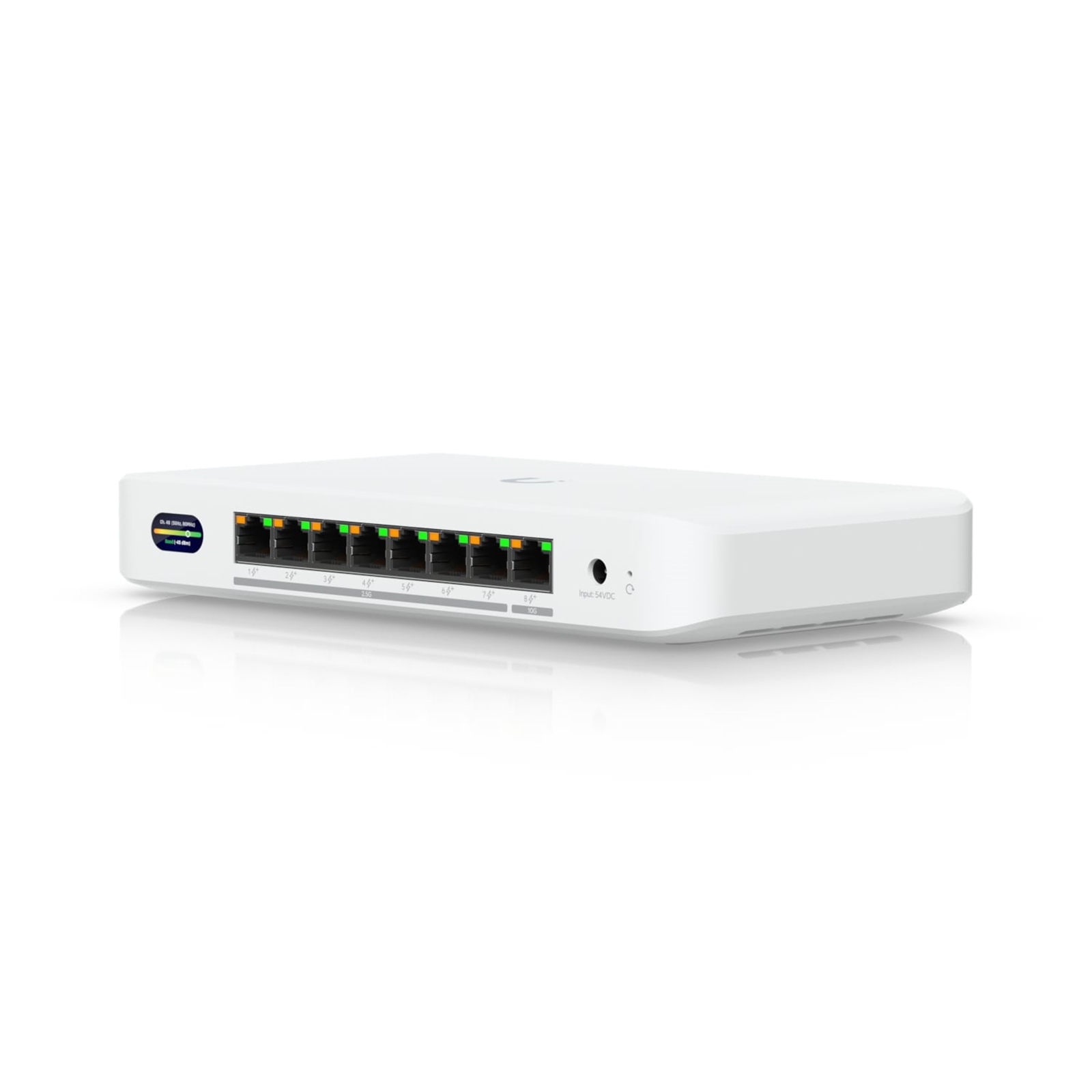

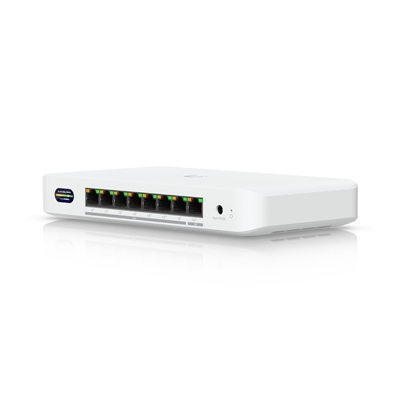

Ubiquiti Unifi Compact PoE+ switch
Specifications
Overview
Dimensions
212.9 x 113 x 32.5 mm
(8.4 x 4.4 x 1.3")
WiFi Standard
WiFi 7
Spatial Streams
4
Mounting Locations
Desktop, wall
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Performance
MIMO
6 GHz - 2 x 2
5 GHz - 2 x 2
Max. Data Rate
6 GHz - 5.8 Gbps (BW320)
5 GHz - 4.3 Gbps (BW240)
Antenna Gain
6 GHz - 8 dBi
5 GHz - 8 dBi
Max. TX Power
6 GHz - 23 dBm
5 GHz - 26 dBm
Max. Conducted TX Power
26 dBm (Combined)
Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security
WPA3 SAE (Always On)
Hardware
Max. Power Consumption
25W (Excluding PoE output)
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port
(7) 2.5 GbE RJ45 ports
PoE Interface
(8) PoE+ ports
Max. PoE Wattage per PortM
30W
Total PoE Availability
60W AC adapter input: 35W
210W AC adapter input: 185W
Antennas
(1) Internal
Management
Ethernet
WiFi
Channel Bandwidth
20/40/80/160/240/320 MHz
Weight
Device: 548 g (1.21 lb)
With mount: 563 g (1.24 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LCM Display
0.96" status display
Button
(1) Factory-reset
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Operating Frequency
Worldwide:
5150—5875 MHz
5945—7125 MHz
Ambient Operating Temperature
-30 to 40 C (-22 to 104 F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 10.0.156 or later.
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
CERTIFICATION
|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
DESIGN
|
| Product colour |
White |
ENERGY MANAGEMENT
|
| Power source |
DC/PoE |
| DC input voltage |
54 V |
| Power consumption (max) |
25 W |
| Power supply included |
Yes |
NETWORKING
|
| Networking standards |
IEEE 802.11a, IEEE 802.11n, IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac |
| 10G support |
Yes |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 40 °C |
PORTS & INTERFACES
|
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
7 |
| 10G Ethernet (copper) ports quantity |
1 |
POWER OVER ETHERNET (POE)
|
| Power over Ethernet (PoE) |
Yes |
| Total Power over Ethernet (PoE) budget |
185 W |
| Power over Ethernet (PoE) power per port |
30 W |
TECHNICAL DETAILS
|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
WEIGHT & DIMENSIONS
|
| Height |
32.5 mm |
| Width |
212.9 mm |
| Depth |
113 mm |
