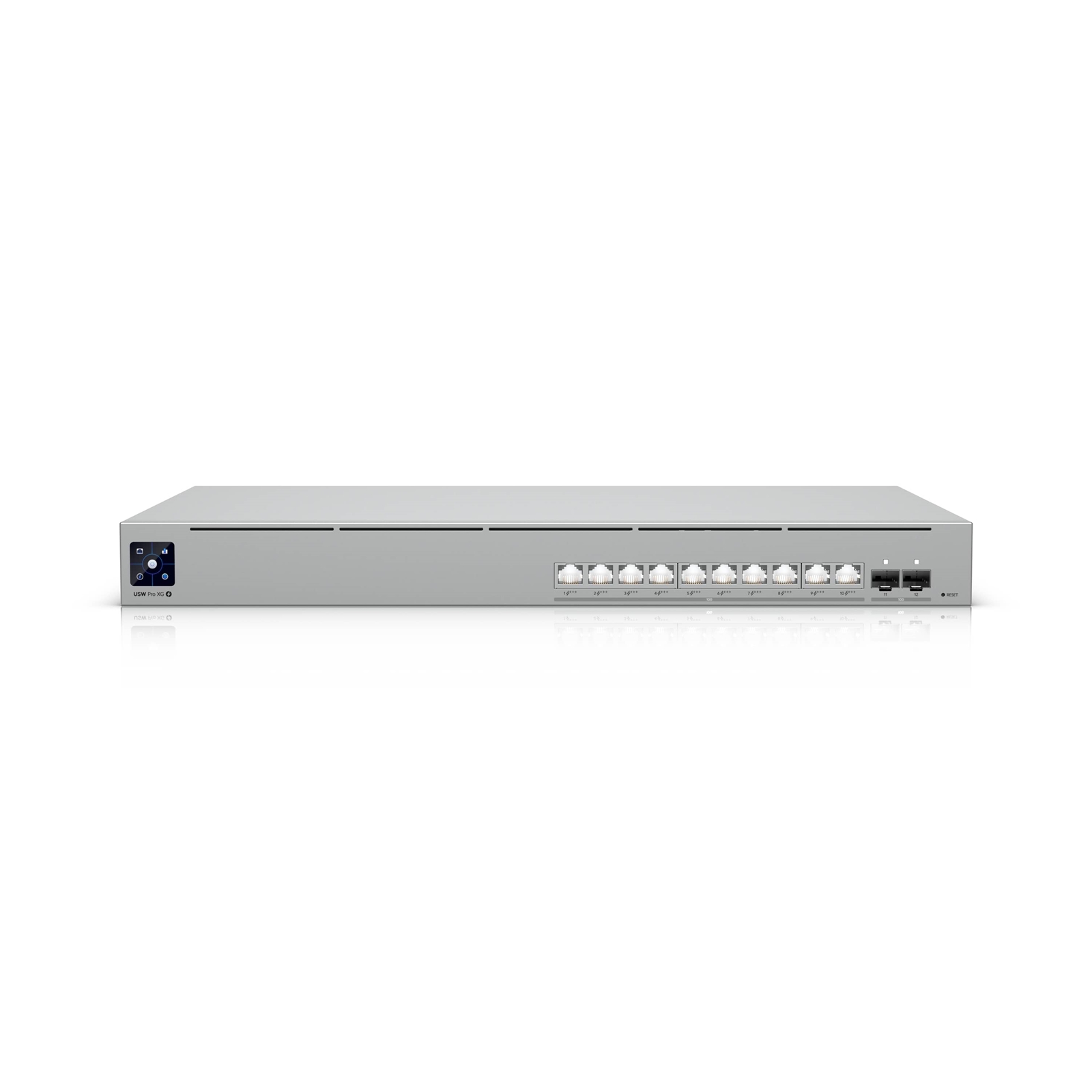

Ubiquiti USW-Pro-XG-10-PoE UniFi Switch Pro XG 10 Port 400W POE++ Switch

NPUBI-USWPXG10P
Key Specifications
Ports10
Managed/UnmanagedManaged
Speed10/100/1000
Manufacturer : UBIQUITI
EAN : 0810177160137
Manufacturer Part Code : USW-Pro-XG-10-PoE
Weight : 5.75 kg
Login For Pricing

Key Specifications
Ports10
Managed/UnmanagedManaged
Speed10/100/1000
Manufacturer :
UBIQUITI

EAN :
0810177160137

Manufacturer Part Code :
USW-Pro-XG-10-PoE

Weight :
5.75 kg
Recommended Products
1032Cables
See details
1024Modem
See details
950Rackmount
See details

Ubiquiti 1U, professional-grade 10-port, Layer 3 Etherlighting PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.

Overview

Dimensions
442.4 x 285 x 44 mm
(17.4 x 11.2 x 1.7")

Port Layout
10 GbE RJ45
10 (All PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+
2
(10G/1G)

Max. PoE Output
Up to PoE+++

Total PoE Availability
400W

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
Yes

Performance

Switching Capacity
240 Gbps

Total Non-Blocking Throughput
120 Gbps

Forwarding Rate
179 Mpps

Supported VLANs
1,000

MAC Address Table Size
32,000

L3 Table Size
ARP Entries
12,000
IPv4 Routes
12,000

Packet Buffer Size
2 MB

Access Lists
IPv4
128
MAC
128

Layer 3 Features
DHCP Server (Local Networks) - Yes
DHCP Relay - Yes
Inter-VLAN Routing (Local Networks) - Yes
Static Routing (Local Networks) - Yes

Layer 2 Features
LACP Port Aggregation - Yes
STP & RSTP - Yes
QoS (DSCP) - Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) - Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) - Yes
IGMP Snooping - Yes
802.1X Control - Yes
MAC-Based ACLs & Device Isolation - Yes
DHCP Snooping & Guarding - Yes
Egress Rate Limit - Yes
Flow Control - Yes
Storm Control - Yes
Multicast & Broadcast Rate Limiting - Yes
MAC Address Blocking - Yes
IP-Based ACLs & Network Isolation - Yes
MAC-Based Port Restriction - Yes
Port Isolation - Yes
Port Mirroring - Yes
Jumbo Frames - Yes
LLDP-MED - Yes
Voice VLAN - Yes
Loop Protection - Yes

Hardware

PoE Ports
PoE+++
10

Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W

Max. Power Consumption
65W (Excluding PoE output)
520W (Including PoE output)

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 550W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Weight
Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

Supported Rack Depth
400~1200 mm
(15.7-47.2"")

LCM Display
1.3" touchscreen

ESD Protection
Air: ± 30kV, contact: ± 30kV

Ambient Operating Temperature
-5 to 40 C (23 to 104 F)

Ambient Operating Humidity
10 to 90% noncondensing

Etherlighting
Ethernet - Yes
SFP+ - Yes

LEDs
RPS - Yes
System - Yes

NDAA Compliant
Yes

Certifications
CE, FCC, IC, Anatel: 05660-25-08356

Software

Application Requirements
UniFi Network
Version 9.1.120 and later
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
DATA TRANSMISSION
MAC address table 32000 entries
Switching capacity 240 Gbit/s
Jumbo frames support Yes
Forwarding rate 179 Mpps
Packet buffer memory 2 MB
Static route Yes
Throughput 120 Gbit/s
DESIGN
Rack mounting Yes
Form factor 1U
LED indicators System
Backlight display Yes
Product colour Grey
Stackable Yes
Reset button Yes
Housing material SGCC
Display type LCM
ENERGY MANAGEMENT
Power source AC/DC
Redundant power supply (RPS) support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 520 W
Power supply included Yes
MANAGEMENT FEATURES
Switch layer L2/L3
Quality of Service (QoS) support Yes
Switch type Managed
MULTICAST FEATURES
Multicast support Yes
NETWORKING
Flow control support Yes
Port mirroring Yes
Broadcast storm control Yes
Rate limiting Yes
Number of VLANs 1000
VLAN support Yes
10G support Yes
Virtual LAN features Interface-based VLAN, Voice VLAN
IPv4 routes 12000
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 40 °C
PACKAGING CONTENT
Cables included Power
Manual Yes
Rack mount kit Yes
PACKAGING DATA
Cables included Power
Manual Yes
Rack mount kit Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity 10
SFP+ module slots quantity 2
Power connector AC/DC
10G Ethernet (copper) ports quantity 10
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 400 W
Power over Ethernet (PoE) power per port 15.4 W
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
SECURITY
IGMP snooping Yes
Loop protection Yes
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight 4.6 kg
Height 44 mm
Width 442.4 mm
Depth 285 mm
