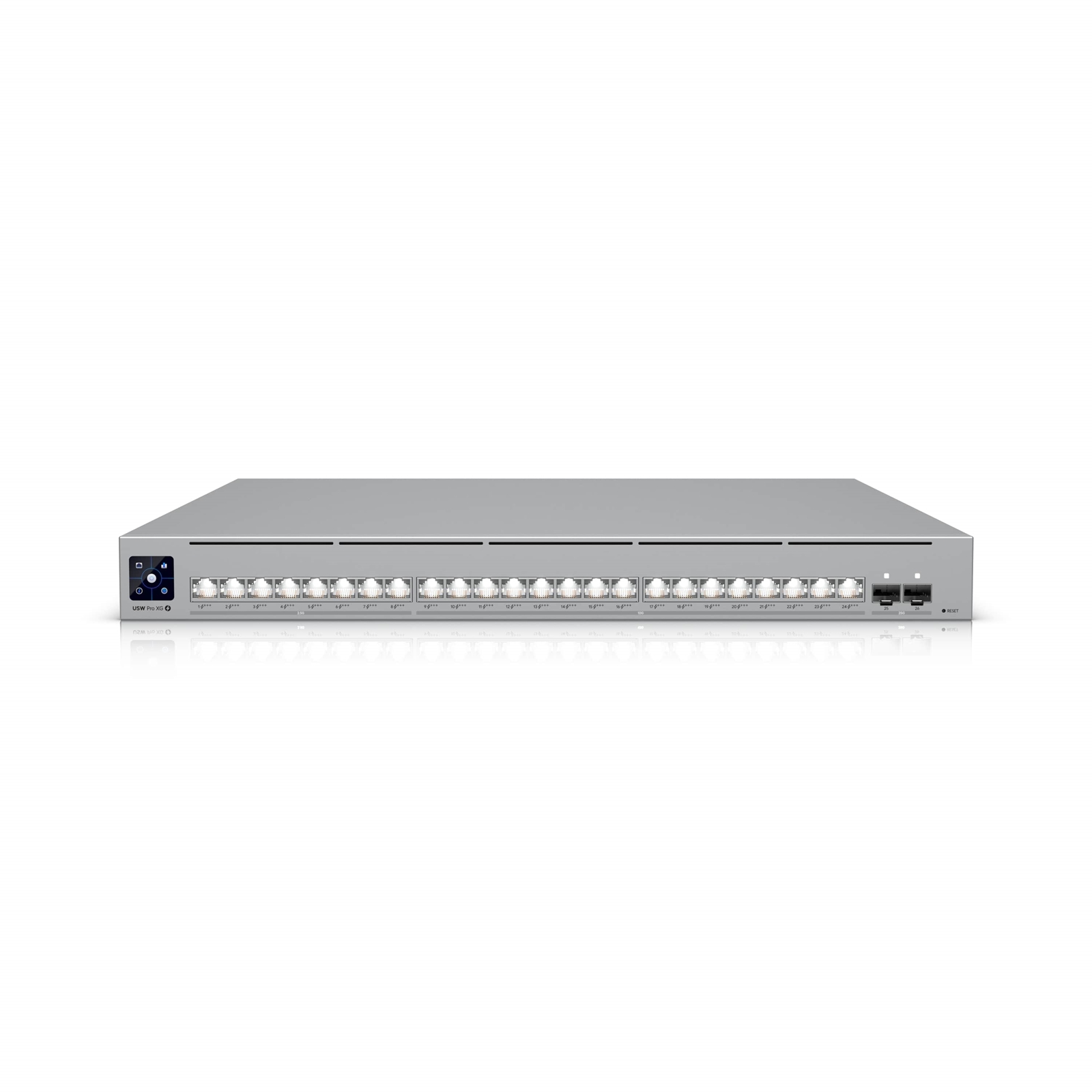

Ubiquiti USW-Pro-XG-24-PoE UniFi Switch 24 Port Gigabit Managed Switch with 16 x 10 GbE ports and 8 x 2.5 GbE ports

NPUBI-USWPXG24P
Key Specifications
Ports24
Managed/UnmanagedManaged
Speed10/100/1000
/productImages/80/NPUBI-USWPXG24P.JPG
/productImages/80/211434.JPG
/productImages/80/211435.JPG
/productImages/80/211436.JPG
/productImages/80/211437.JPG
/productImages/80/211438.JPG
/productImages/80/211439.JPG
Manufacturer : UBIQUITI
EAN : 810177160663
Manufacturer Part Code : USW-Pro-XG-24-PoE
Weight : 5.05 kg
Login For Pricing

Key Specifications
Ports24
Managed/UnmanagedManaged
Speed10/100/1000
Manufacturer :
UBIQUITI

EAN :
810177160663

Manufacturer Part Code :
USW-Pro-XG-24-PoE

Weight :
5.05 kg
Recommended Products
1032Cables
See details
1024Modem
See details
950Rackmount
See details

Ubiquiti USW-Pro-XG-24-PoE UniFi Switch

Specifications

Overview

Dimensions
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7")

Port Layout
2.5 GbE RJ45
8 (All PoE+++)
(2.5G/1G/100M/10M)
10 GbE RJ45
16 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)
25G SFP28
2
(25G/10G/1G)

Max. PoE Output
Up to PoE+++

Total PoE Availability
720W

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
Yes

Performance

Switching Capacity
460 Gbps

Total Non-Blocking Throughput
230 Gbps

Forwarding Rate
342 Mpps

Supported VLANs
1,000

MAC Address Table Size
128,000

L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000

Packet Buffer Size
8 MB

Access Lists
IPv4
256
MAC
256

Layer 3 Features
DHCP Server (Local Networks) - Yes
DHCP Relay - Yes
Inter-VLAN Routing (Local Networks) - Yes
Static Routing (Local Networks) - Yes

Layer 2 Features
LACP Port Aggregation - Yes
STP & RSTP - Yes
QoS (DSCP) - Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)- Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) - Yes
IGMP Snooping - Yes
802.1X Control - Yes
MAC-Based ACLs & Device Isolation - Yes
DHCP Snooping & Guarding - Yes
Egress Rate Limit - Yes
Flow Control- Yes
Storm Control - Yes
Multicast & Broadcast Rate Limiting - Yes
MAC Address Blocking - Yes
IP-Based ACLs & Network Isolation - Yes
MAC-Based Port Restriction - Yes
Port Isolation - Yes
Port Mirroring - Yes
Jumbo Frames - Yes
LLDP-MED - Yes
Voice VLAN - Yes
Loop Protection - Yes

Hardware

PoE Ports
PoE+++
24

Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W

Max. Power Consumption
150W (Excluding PoE Output)
870W (Including PoE Output)

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 870W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Weight
Without mounting brackets: 7.9 kg (17.4 lb)
With mounting brackets: 8 kg (17.6 lb)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42")

LCM Display
1.3" touchscreen

ESD Protection
Air: ± 30kV, contact: ± 20kV

Ambient Operating Temperature
-5 to 40° C (23 to 104° F)

Ambient Operating Humidity
10 to 90% noncondensing

Etherlighting
Ethernet - Yes
SFP28 - Yes
LEDs
RPS - Yes
NDAA Compliant - Yes

Certifications
CE, FCC, IC, Anatel

Software
Application Requirements
UniFi Network
Version 9.1.120 and later
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
DATA TRANSMISSION
MAC address table 128000 entries
Switching capacity 460 Gbit/s
Jumbo frames support Yes
Forwarding rate 342 Mpps
Packet buffer memory 8 MB
Static route Yes
Throughput 230 Gbit/s
DESIGN
Rack mounting Yes
Form factor 1U
Backlight display Yes
Product colour Grey
Stackable Yes
Reset button Yes
Housing material SGCC
Display type LCM
ENERGY MANAGEMENT
Power source AC/DC
Redundant power supply (RPS) support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 870 W
Power supply included Yes
MANAGEMENT FEATURES
Switch layer L3
Quality of Service (QoS) support Yes
Switch type Managed
MULTICAST FEATURES
Multicast support Yes
NETWORKING
Flow control support Yes
Port mirroring Yes
Broadcast storm control Yes
Rate limiting Yes
Number of VLANs 1000
VLAN support Yes
10G support Yes
Virtual LAN features Interface-based VLAN, Voice VLAN
IPv4 routes 256000
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 40 °C
PACKAGING CONTENT
Cables included Power
Rack mount kit Yes
PACKAGING DATA
Cables included Power
Rack mount kit Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity 24
Power connector AC/DC
SFP28 ports quantity 2
2.5G Ethernet (copper) ports quantity 8
10G Ethernet (copper) ports quantity 16
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 720 W
Power over Ethernet (PoE) power per port 15.4 W
Power over Ethernet (PoE) type supported PoE+++
SECURITY
IGMP snooping Yes
Loop protection Yes
Access Control List (ACL) IPv4 entries 256
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight 7.9 kg
Height 44 mm
Width 442 mm
Depth 480 mm
