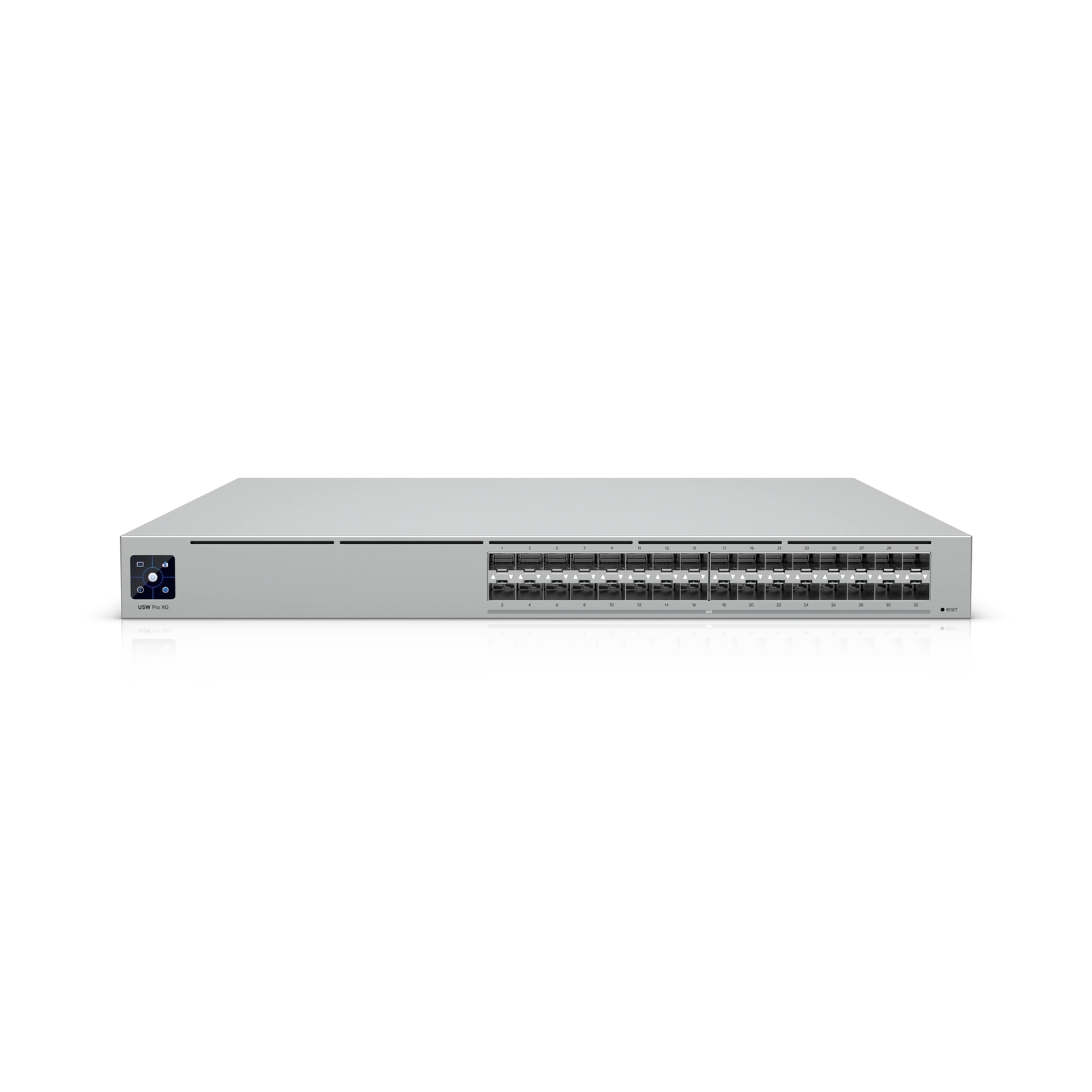

Ubiquiti USW-Pro-XG-Aggregation UniFi Switch Pro XG Aggregation 32 Port 25G Switch

NPUBI-USWPXGAG
Key Specifications
Ports32
Managed/UnmanagedManaged
Speed10/100/1000
/productImages/80/NPUBI-USWPXGAG.JPG
/productImages/80/212153.JPG
/productImages/80/212154.JPG
/productImages/80/212155.JPG
/productImages/80/212156.JPG
/productImages/80/212157.JPG
Manufacturer : UBIQUITI
EAN : 810177163077
Manufacturer Part Code : USW-Pro-XG-Aggregation
Weight : 7 kg
Login For Pricing

Key Specifications
Ports32
Managed/UnmanagedManaged
Speed10/100/1000
Manufacturer :
UBIQUITI

EAN :
810177163077

Manufacturer Part Code :
USW-Pro-XG-Aggregation

Weight :
7 kg
Recommended Products
1032Cables
See details
1024Modem
See details
950Rackmount
See details

Ubiquiti Professional-grade 32-port, Layer 3 Etherlighting switch for high-capacity 25G SFP28 connections.

Overview

Dimensions
442.4 x 43.7 x 480 mm
(17.4 x 1.7 x 18.9")

Port Layout
25G SFP28
32
(25G/10G/1G)

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack Mount (1U)

Etherlighting
Yes

Performance

Switching Capacity
1.6 Tbps

Total Non-Blocking Throughput
800 Gbps

Forwarding Rate
1.2 Bpps

Supported VLANs
1,000

MAC Address Table Size
32,000

L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000

Packet Buffer Size
8 MB

Access Lists
IPv4 -256
MAC - 256

Layer 3 Features
DHCP Server (Local Networks) - Yes
DHCP Relay - Yes
Inter-VLAN Routing (Local Networks)- Yes
Static Routing (Local Networks) - Yes

Layer 2 Features
LACP Port Aggregation - Yes
STP & RSTP - Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)- Yes
IGMP Snooping - Yes
802.1X Control - Yes
MAC-Based ACLs & Device Isolation - Yes
DHCP Snooping & Guarding - Yes
Egress Rate Limit - Yes
Flow Control - Yes
Storm Control - Yes
Multicast & Broadcast Rate Limiting - Yes
MAC Address Blocking - Yes
IP-Based ACLs & Network Isolation - Yes
MAC-Based Port Restriction - Yes
Port Isolation - Yes
Port Mirroring - Yes
Jumbo Frames - Yes
LLDP-MED - Yes
Voice VLAN - Yes
Loop Protection - Yes

Hardware

Max. Power Consumption
200W

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 200W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Heat Dissipation (Excluding PoE Output)
457 BTU/hr

Weight
Without mounting bracket: 7.1 kg (15.7 lbs)
With mounting bracket:7.2 kg (15.9 lbs)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42?)

LCM Display
1.3" touchscreen

ESD Protection
Air: ± 12kV, contact: ± 8kV

Ambient Operating Temperature
-5 to 40 C (23 to 104 F)

Ambient Operating Humidity
10 to 90% noncondensing

Etherlighting
SFP28 - Yes

LEDs
RPS - Yes

NDAA Compliant
Yes

Certifications
CE, FCC, IC, Anatel: 05977-25-08356

Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
DATA TRANSMISSION
MAC address table 32000 entries
Switching capacity 1600 Gbit/s
Jumbo frames support Yes
Forwarding rate 1200 Mpps
Packet buffer memory 8 MB
Static route Yes
Throughput 800 Gbit/s
DESIGN
Rack mounting Yes
Form factor 1U
Backlight display Yes
Product colour Grey
Stackable Yes
Reset button Yes
Housing material SGCC
Display type LCM
ENERGY MANAGEMENT
Power source AC/DC
Redundant power supply (RPS) support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power consumption (max) 200 W
Power supply included Yes
MANAGEMENT FEATURES
Switch layer L2/L3
Quality of Service (QoS) support Yes
Switch type Managed
MULTICAST FEATURES
Multicast support Yes
NETWORKING
Flow control support Yes
Port mirroring Yes
Broadcast storm control Yes
Rate limiting Yes
Number of VLANs 1000
VLAN support Yes
10G support Yes
Virtual LAN features Interface-based VLAN, Voice VLAN
IPv4 routes 256000
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 40 °C
PACKAGING CONTENT
Cables included Power
Rack mount kit Yes
PACKAGING DATA
Cables included Power
Rack mount kit Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type No
Power connector AC/DC
SFP28 ports quantity 32
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE) No
SECURITY
IGMP snooping Yes
Loop protection Yes
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
TECHNICAL DETAILS
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight 7 kg
Height 43.7 mm
Width 442.4 mm
Depth 480 mm
