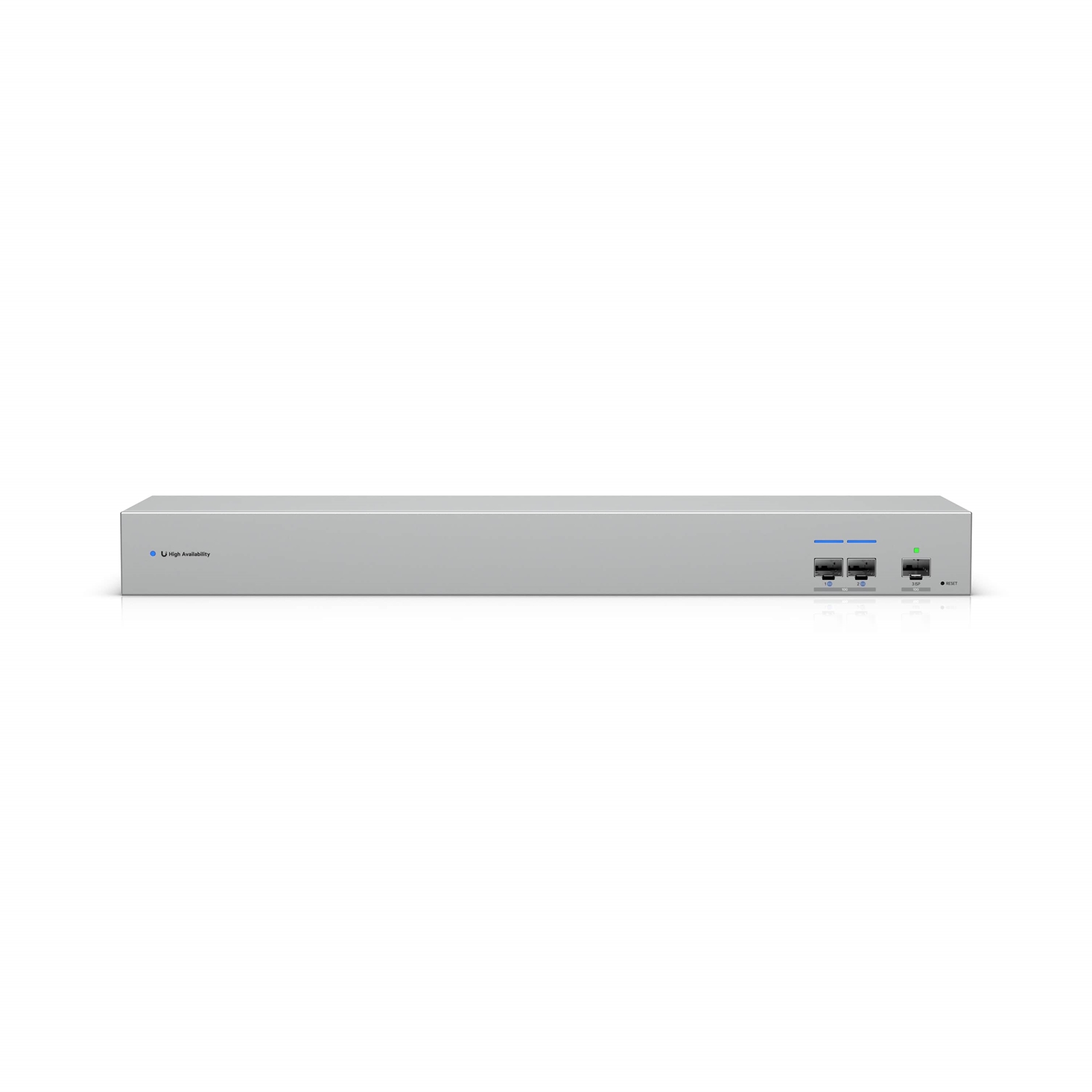

Ubiquiti 10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

Specifications

Overview

Dimensions
442.4 x 120 x 43.7 mm
(17.4 x 4.72 x 1.7")

Port Layout
1 GbE RJ45
1
(1G/100M/10M)
10G SFP+
3
(10G/1G)

Redundancy
(2) AC inputs

Form Factor
Rack mount (1U)

Performance

Switching Capacity
20 Gbps

Total Non-Blocking Throughput
10 Gbps

Forwarding Rate
15 Mpps

Hardware

Max. Power Consumption
13W

Power Method
(2) Universal input, 100—240V AC, 50/60 Hz

Power Input Method
AC input

Power Supply
(2) AC/DC, internal, 36W

Supported Voltage Range
100—240V AC

Management
Ethernet

Weight
Without mounting brackets: 2.2 kg (4.85 lb)
With mounting brackets: 2.3 kg (5.1 lb)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

ESD Protection
Air: ± 16kV, contact: ± 22kV

Ambient Operating Temperature
-5 to 40 C (23 to 104 F)

Ambient Operating Humidity
10 to 90% noncondensing

LEDs
Ethernet - Yes
SFP+ - Yes
System - Yes

Certifications
CE, FCC, IC, Anatel: 03715-25-08356

NDAA Compliant
Yes

Software

Application Requirements
UniFi Network
Version 9.1.119 and later

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
DATA TRANSMISSION
Switching capacity	20 Gbit/s
Forwarding rate	15 Mpps
Throughput	10 Gbit/s
DESIGN
Rack mounting	Yes
Form factor	1U
LED indicators	Network, System
Product colour	Grey
Reset button	Yes
Housing material	SGCC
ENERGY MANAGEMENT
Power source	AC/DC
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	13 W
Power supply included	Yes
NETWORKING
10G support	No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PACKAGING CONTENT
Cables included	Power
Rack mount kit	Yes
PACKAGING DATA
Cables included	Power
Rack mount kit	Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	1
SFP+ module slots quantity	3
Power connector	AC/DC
Power cables quantity	2
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	No
TECHNICAL DETAILS
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
WEIGHT & DIMENSIONS
Weight	2.2 kg
Height	43.7 mm
Width	442.4 mm
Depth	120 mm
