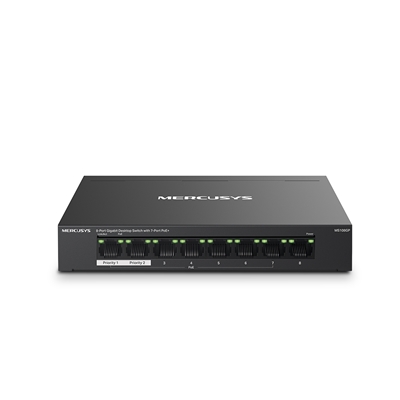

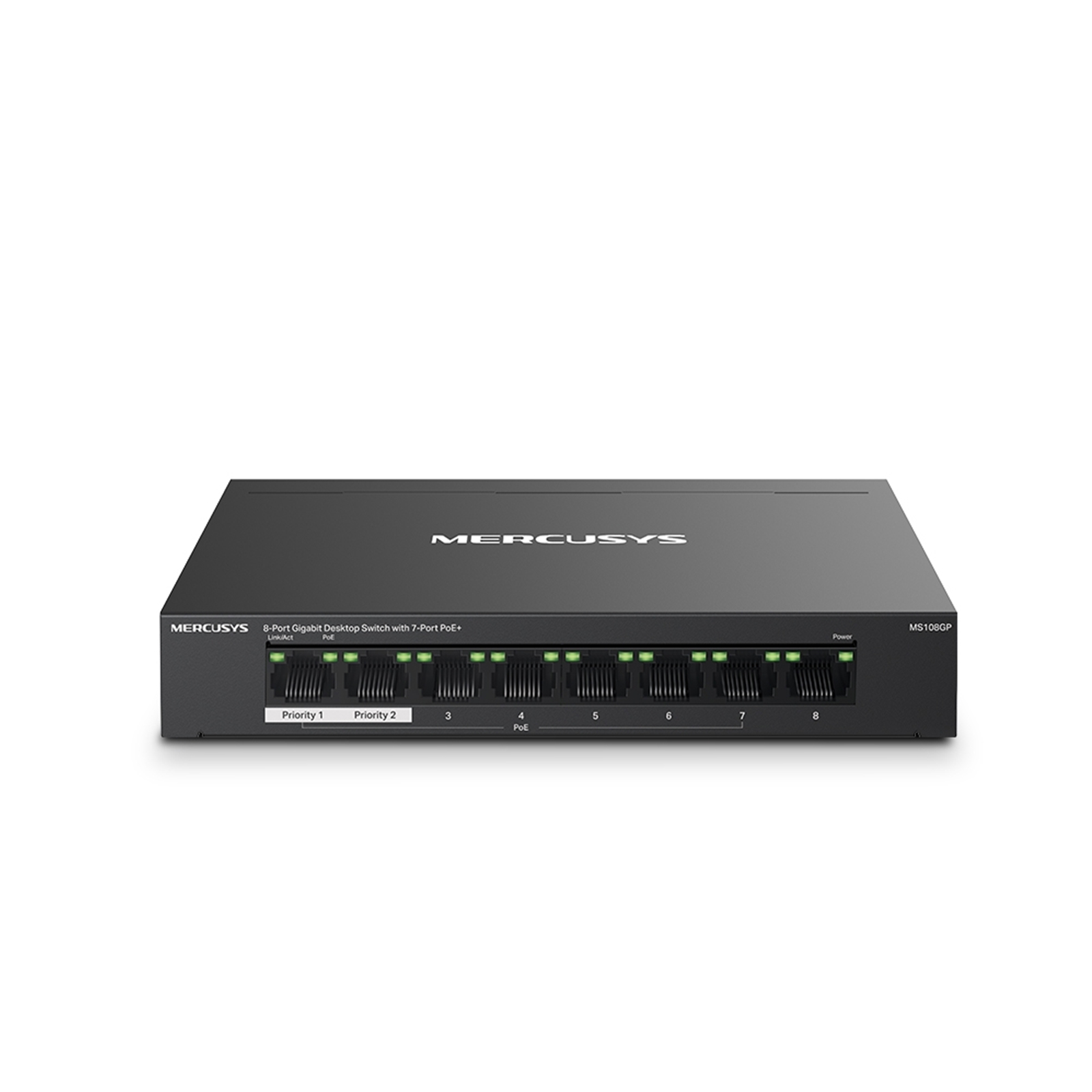

Mercusys MS108GP Coming Soon 8-Port Gigabit Desktop Switch with 7-Port PoE

Full Gigabit Ports
8x 10/100/1000 Mbps RJ45 ports

Two Cables in One
With 7 PoE ports, transfers data and power on one single cable

High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports

Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode

Isolation Mode
One click to divide traffic for specific ports for stability and security

Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing
Allows for efficient heat dissipation and long network life

Plug and Play
Simple to use and saves time and effort

Specifications

Hardware

Dimensions (W X D X H)
171x98x27 mm

PoE Ports
RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W

External Power Supply
External Power Adapter (Output: 53.5V/1.31A)

Standards and Protocols
IEEE 802.3x Flow Control

Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex

Jumbo Frame
9 KB

Mac Address Table
8K

Max Power Consumption
5.07W(220 V / 50 Hz, no PD connected)

77.33W(220 V / 50 Hz, with 65W PD connected)

Max Heat Dissipation
17.238 BTH/h (no PD connected)
262.922 BTH/h(with 65W PD connected)

Others

Package Contents
8-Port Gigabit Desktop Switch with 7-Port PoE(MS108GP)
Power Adapter
Quick Installation Guide

Manufacturer's Website:

www.mercusys.com

Warranty:

3 Year Return To Base Warranty

Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our Returns Policy for more information.

DATA TRANSMISSION
MAC address table	8000 entries
Store-and-forward	Yes
DESIGN
Rack mounting	No
Wall mountable	Yes
Product colour	Black
Stackable	No
Housing material	Metal
ENERGY MANAGEMENT
Power consumption (typical)	5.07 W
Power source	AC
Input voltage	53.5 V
Input current	1.31 A
AC input frequency	50 Hz
AC input voltage	220 V
Power consumption (max)	77.33 W
Power supply included	Yes
MANAGEMENT FEATURES
Web-based management	Yes
Switch type	Managed
Traffic classification	Yes
NETWORKING
Full duplex	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Policy-based routing	Yes
Half duplex	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	262.922 BTU/h
OTHER FEATURES
Input voltage	53.5 V
PACKAGING CONTENT
Cables included	AC
Quick start guide	Yes
PACKAGING DATA
Cables included	AC
Quick start guide	Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	7
Power over Ethernet plus (PoE+) ports quantity	1
Power over Ethernet (PoE) power per port	65 W
WEIGHT & DIMENSIONS
Height	27 mm
Width	171 mm
Depth	98 mm
