Target Components Ltd

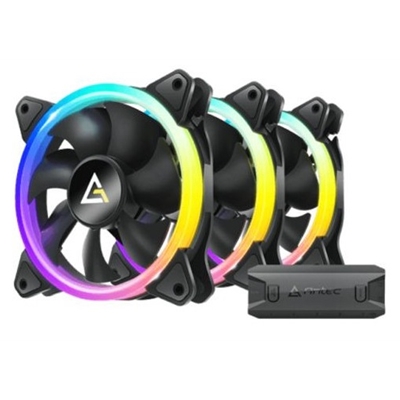

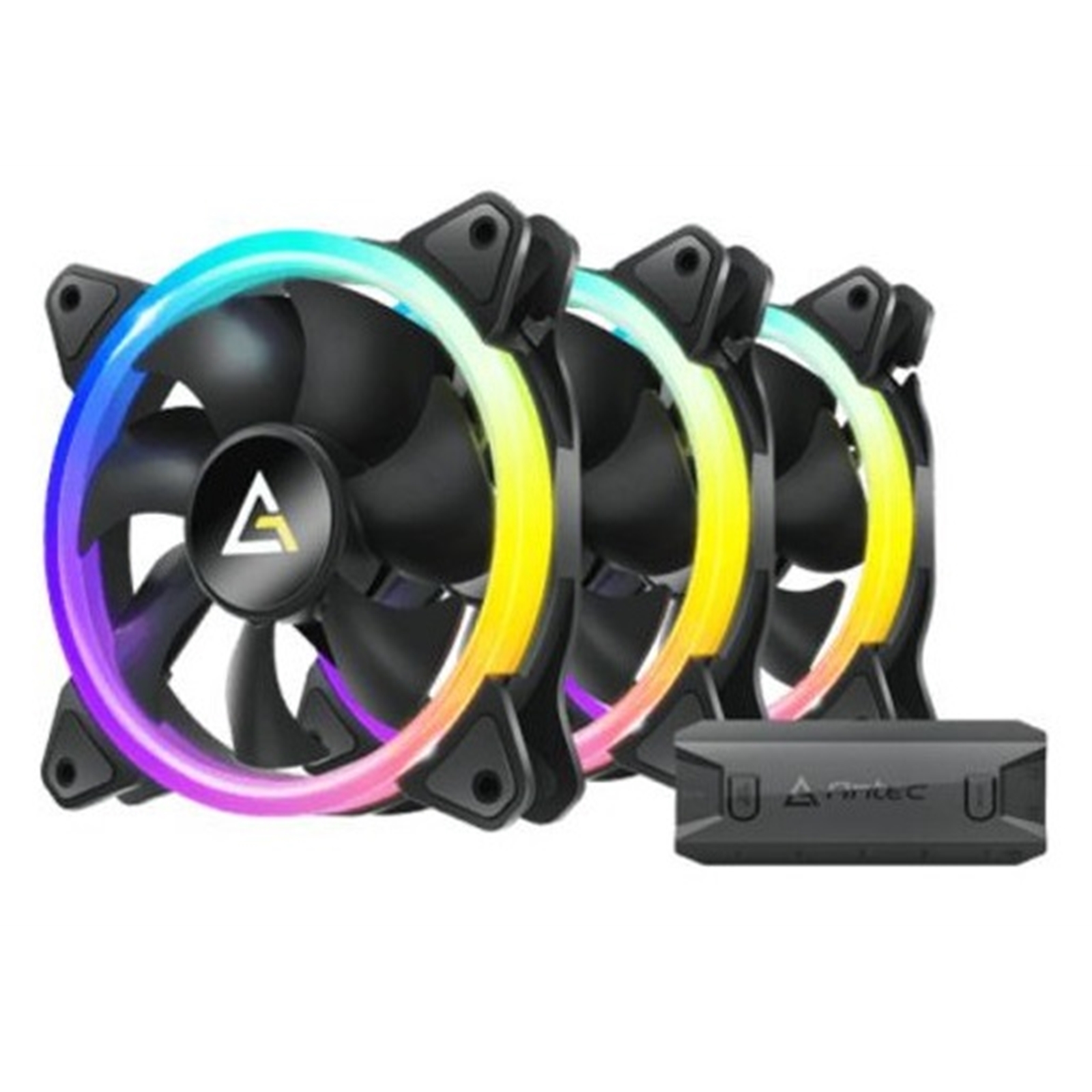

NEON 120 PWM ARGB FAN 3PK WITH CONTROLLER

Personalize RGB Lighting
Unlimited color transformation, achieving magical lighting effects with multiple-choice controls and multiple different modes.

Highly Efficient Ventilation
Fan blade design balances airflow and loadness, providing highly efficient ventilation (800 - 1600 RPM± 10%), superior air pressure and airflow (1.38 mmH20 / 35 CFM) and low acoustic pressure level (25.6 dBA).

Hydraulic Bearing Fan
Hydraulic bearing provides long-lasting, near-silent operation.

Anti-Vibration Pads
Anti-Vibration pads reduce vibration when the fan is operating.

Two Individual Cables
3-Pin ARGB connector & 4-Pin PWM connector.

Quiet Operation
Rubber pads and hydro bearing help the fan run quietly.

Synchronizable RGB Lighting in 2 Ways
Sync with major MOBO houses including Gigabytes, Asus & MSI, or sync with the Control Hub which is included in the 3-in-1 pack.

Specifications

Model Name
Neon 120 ARGB

Fan Type
ARGB PWM Fan

Dimensions
120 x 120 x 25 mm

Bearing Type
Hydro Bearing

Fan Speed
800-1600RPM ± 10%

Airflow
35 CFM

Air Pressure
1.38 mmH2O

Fan Noise Level
25.6 dB(A)

Lifespan
30,000 hours

Connector
FAN: 4-pin PWM | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC 6.0-13.2 V | LED: DC 4.5-5.2 V

Rated Current
FAN : = 0.10A ± 10% | LED : = 0.26A ± 10%

Warranty
1 Year

Manufacturer's Website:

www.antec.com

Warranty:

1 Year Return To Base Warranty

DESIGN
Product colour	Black
Number of fans	3 fan(s)
Illumination colour	Multi
Fan connector	4-pin
Illumination LED	Yes
LED connector type	3-pin
ENERGY MANAGEMENT
Fan voltage	13.2 V
Fan current	0.1 A
Rated voltage	12 V
LED voltage	5.2 V
PERFORMANCE
Type	Fan
Suitable location	Computer case
Maximum airflow	35 cfm
Maximum air pressure	1.38 mmH2O
Noise level (high speed)	25.6 dB
Bearing type	Hydraulic
Fan's mean time to failure (MTTF)	30000 h
Fan 2 rotational speed (min)	800 RPM
Fan 2 rotational speed (max)	1600 RPM
TECHNICAL DETAILS
Warranty period	1 year(s)
WEIGHT & DIMENSIONS
Height	25 mm
Width	120 mm
Depth	120 mm
Fan dimensions (W x D x H)	120 x 120 x 25 mm
