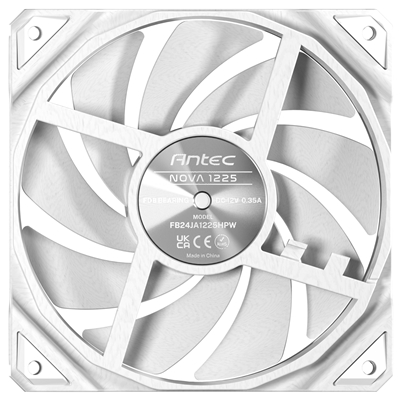

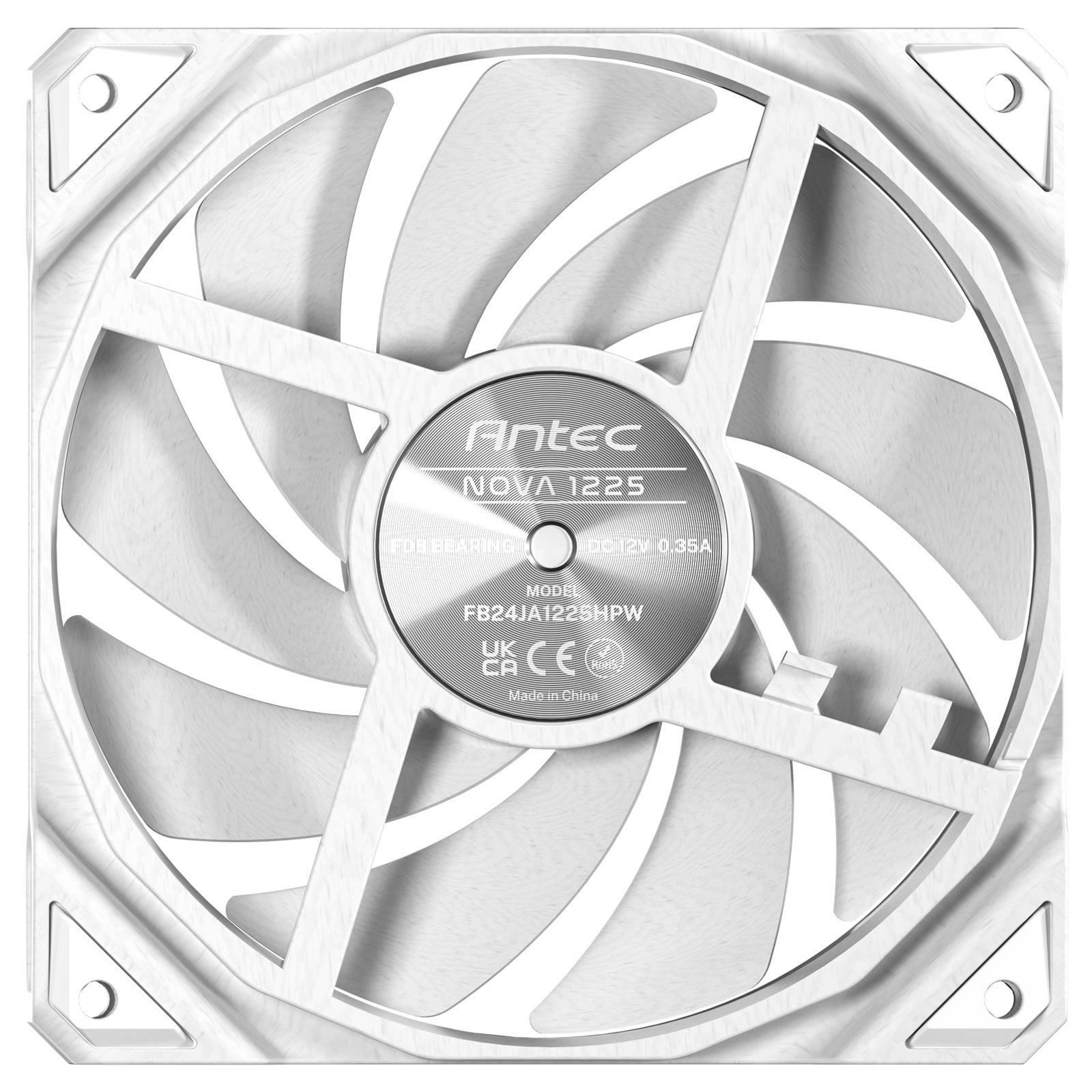

The Antec NOVA 120 PWM Fan is a high-performance cooling fan designed for efficient airflow and reduced noise. It features a three-phase PWM speed controller, allowing for precise control over fan speed according to different hardware environments and scenarios. The fan is constructed with industrial-grade metal and neodymium magnets to enhance durability and stability. Additionally, it has a dustproof design to protect internal components and extend the fan's lifespan.

Full Specification
Fan Model Name:
NOVA 12025 White

Fan Type:
PWM Fan

Dimensions:
120 x 120 x 25 mm

Bearing Type:
FDB (Fluid Dynamic Bearing)

Fan Speed:
Low:
300~1500±10% RPM

Medium:
350~2400±10% RPM

High:
400~3200±10% RPM

Airflow:

Low
44 CFM

Medium
70.59 CFM

High:
95.32 CFM

Air Pressure:
Low:
1.48 mmH2O

Medium
3.72 mmH2O

High:
6.56 mmH2O

Fan Noise Level:
Low:
21.5 dB(A)

Medium:
30.8 dB(A)

High:
38.7 dB(A)

Lifespan:
50,000 hours at 40°C

Connector:
4-pin PWM

Rated Voltage:
DC 12 V

Operation Voltage:
DC 6.0-13.2 V

Rated Current:
0.35A (MAX)

Warranty:
5 years
