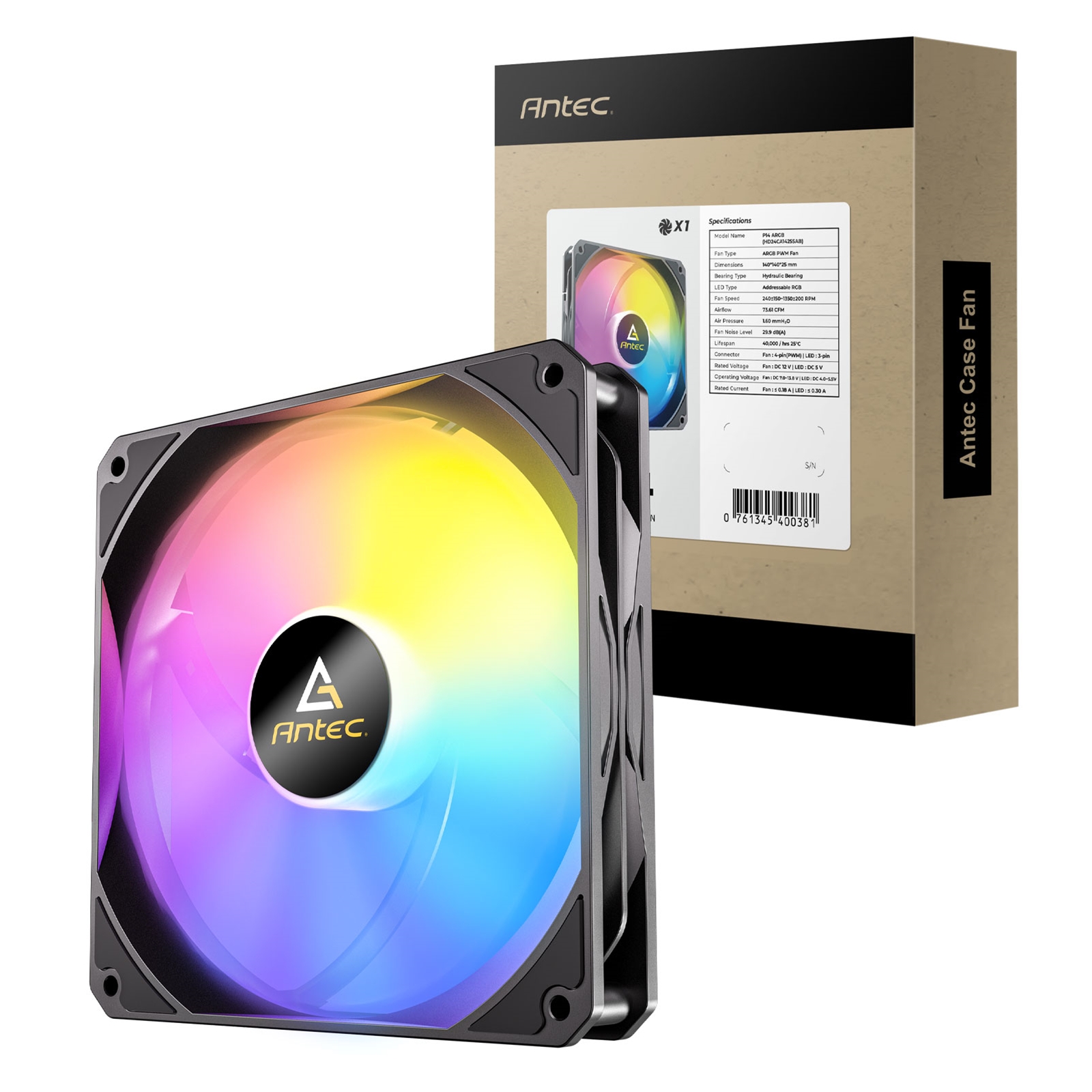

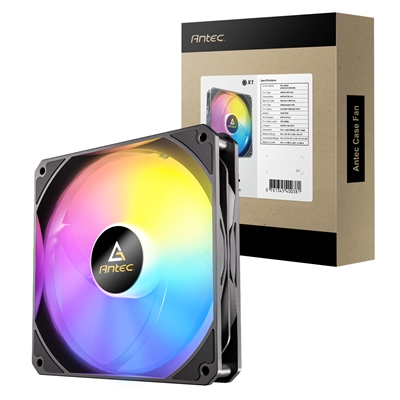

P14 ARGB 140 PWM ARGB FAN

Superior Heat Dissipation
9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.

Bright ARGB
Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.

PWM Fan
From low noise to high performance, tune your perfect fan curve between 240 - 1350 RPM.

Quiet Operation
8 anti-vibration rubber pads and hydro bearing help the fan run quietly.

Hydraulic Bearing Fan
Hydraulic bearing provides long-lasting, near-silent operation.

Anti-Vibration Pads
8 anti-vibration pads reduce vibration when the fan operates.

Individual Cables
3-Pin ARGB connector & 4-Pin PWM connector.

Specifications

Model Name
P14 ARGB

Fan Type
ARGB PWM Fan

Dimensions
140 x 140 x 25 mm

Bearing Type
Hydraulic Bearing

Fan Speed
240±150~1350±200 RPM

Airflow
66.25~73.61 CFM (max.)

Air Pressure
1.30~1.60 mmH2O (max.)

Fan Noise Level
14.2~29.9 dB(A)

Lifespan
30,000 hours / 40?
40,000 hours / 25?

Connector
FAN: 4-pin | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC 7.0-13.8 V

Rated Current
FAN: 0.08 A (0.18A (max.)) | LED: 0.3 A

Warranty
1 Year

Manufacturer's Website:

www.antec.com

Warranty:

1 Year Return To Base Warranty

DESIGN
Product colour	Black
Fan connector	4-pin
LED connector type	3-pin
ENERGY MANAGEMENT
Rated current	0.08 A
Maximum current	0.18 A
Voltage	7 - 13.8 V
Rated voltage	12 V
LED voltage	5 V
PERFORMANCE
Type	Fan
Fan diameter	14 cm
Suitable location	Computer case
Maximum airflow	73.61 cfm
Minimum airflow (imperial)	66.25 cfm
Minimum air pressure	1.3 mmH2O
Maximum air pressure	1.6 mmH2O
Rotational speed (max)	1350 RPM
Rotational speed (min)	240 RPM
Bearing type	Hydraulic
Quantity per pack	1 pc(s)
Fan noise level (min)	14.2 dB
Fan noise level (max)	29.9 dB
Fan's mean time to failure (MTTF)	30000 h
WEIGHT & DIMENSIONS
Height	140 mm
Width	140 mm
Depth	25 mm
