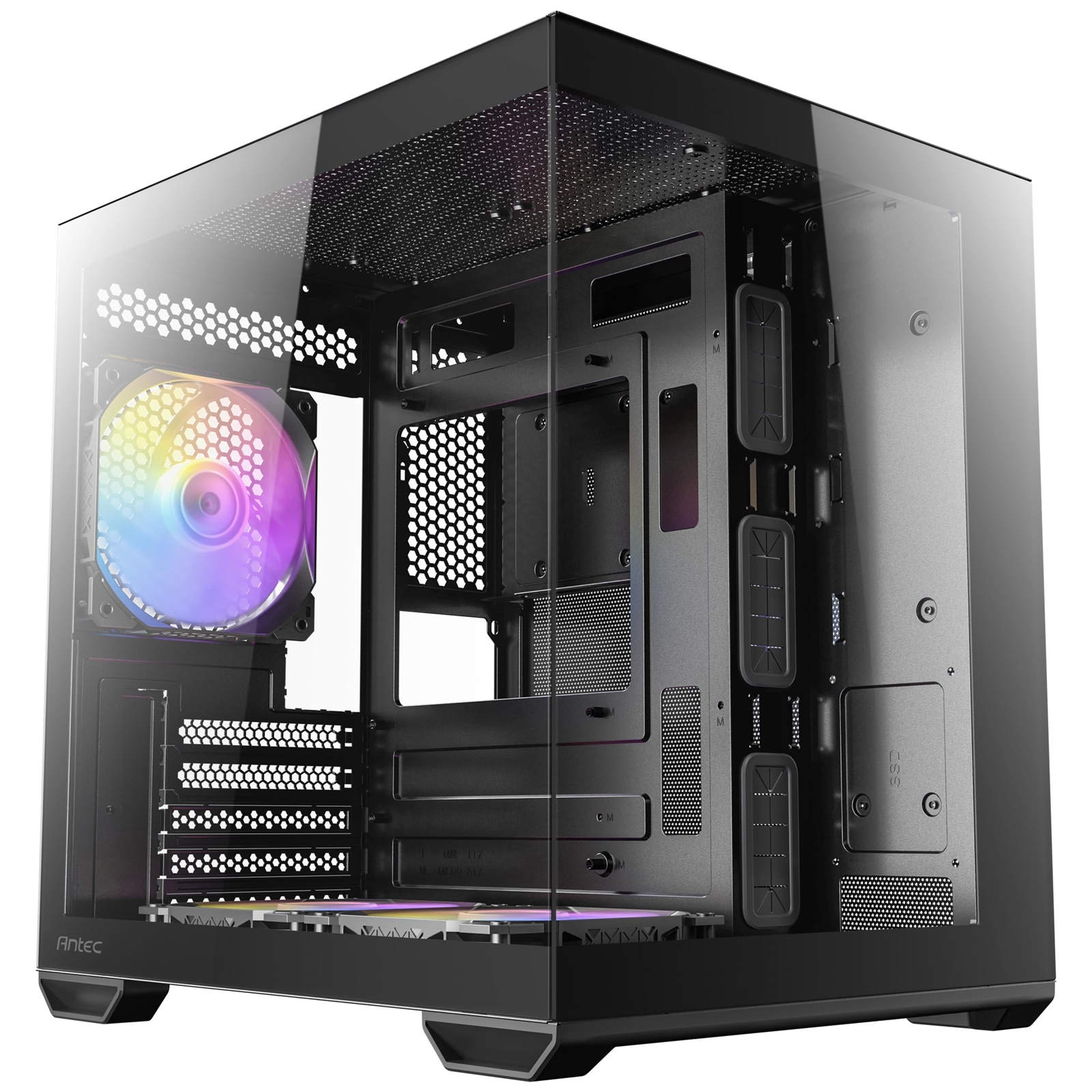

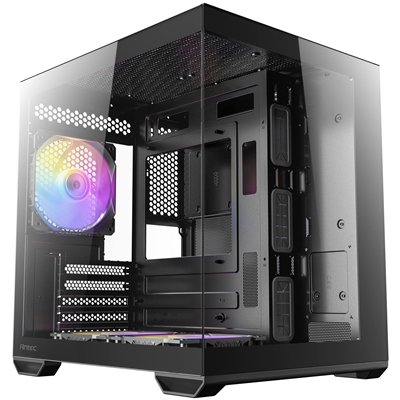

The Antec CX60M ARGB is a compact mini-tower PC case designed for Micro-ATX and ITX motherboards. It features a sleek design with tempered glass panels, providing a clear view of the internal components. The case supports multiple cooling options and includes pre-installed ARGB fans for customizable lighting.

The CX60M offers a 270-degree panoramic view with tempered glass front and side panels, allowing users to showcase their builds. Its dual-chamber design separates the power supply and drives from the main components, ensuring efficient cooling and cable management. The case supports various cooling configurations, including space for up to five fans and multiple radiator sizes, catering to both air and liquid cooling preferences.

Specifications

General:

Form Factor:
Mini Tower

Dimensions (D x W x H):
346 x 275 x 354 mm

Materials:
Steel, Tempered Glass

Motherboard Support:
Micro-ATX, ITX

Expansion Slots:
5

Drive Bays:
1 x 3.5", 3 x 2.5"

Maximum GPU Length:
325 mm

Maximum CPU Cooler Height:
165 mm

Maximum PSU Length (including cables):
240 mm

Cable Management Space:
45 mm (left side), 95 mm (right side)

Dust Filters:
Top and Bottom

Net Weight:
4.45 kg

Gross Weight:
5.69 kg

Warranty:
1 Year

Cooling Support:
Top: 2 x 120 mm fans
Bottom: 2 x 120 mm fans
Rear: 1 x 120 mm fan

Radiator Support:
Top: Up to 240 mm
Rear: 120 mm

Pre-Installed Fans:
2 x 120 mm ARGB PWM reverse fans at the bottom
1 x 120 mm ARGB PWM fan at the rear

Front I/O Ports:
2 x USB 3.0
1 x Type-C 3.2 Gen 2 (10Gbps)
1 x Headphone/Mic Combo Jack
Power Button
LED Control Button
