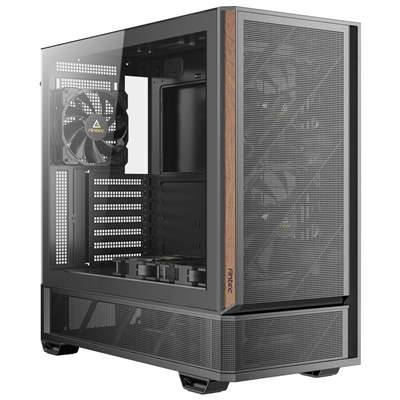

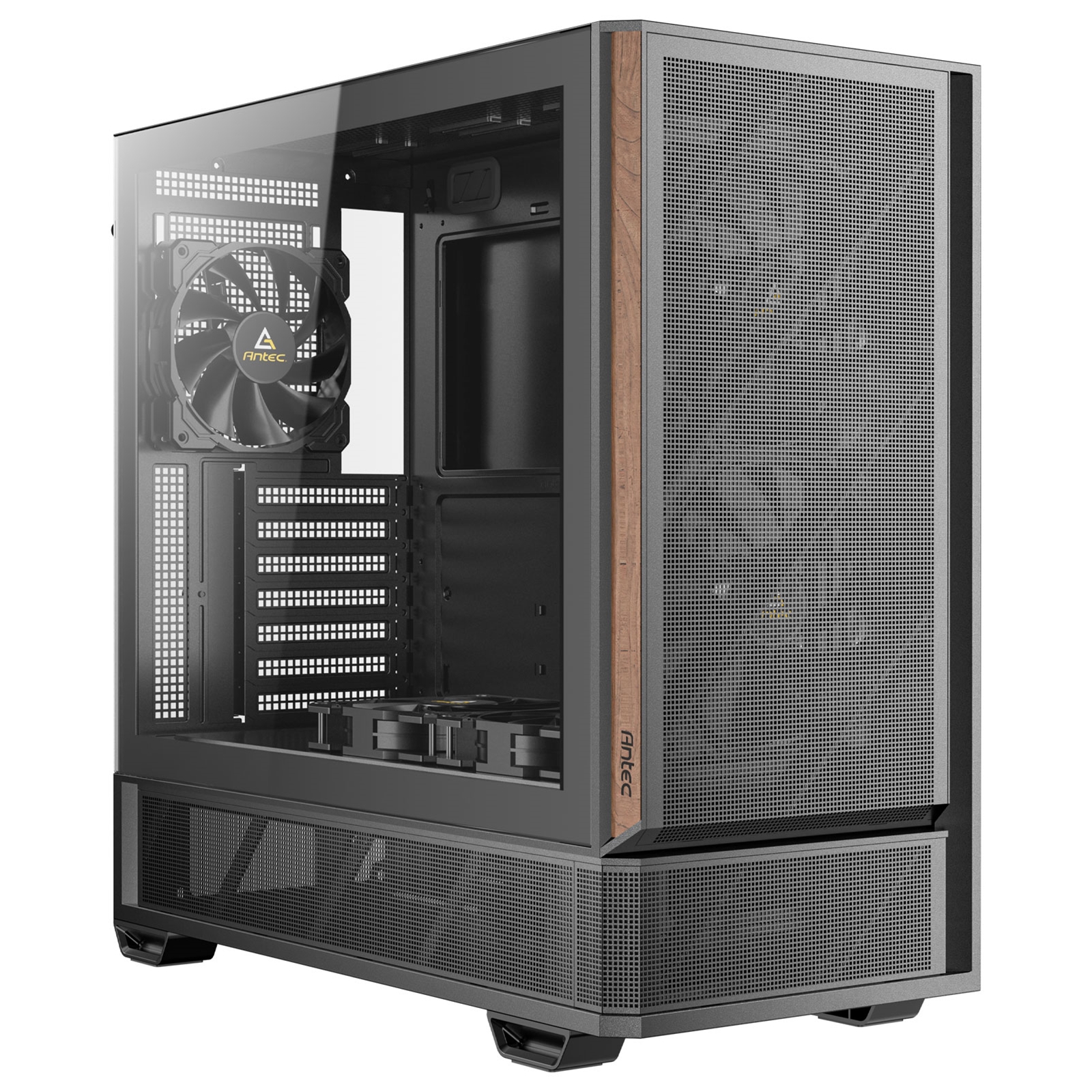

Antec P30 Air Mid-Tower ATX Gaming Case
Metal Mesh Meets Premium Wood
Large metal mesh front panel with premium wood accents and chamfered design.
5 PWM Fans Included
Pre-installed fans : 2 x 140mm PWM fans at the front,
2 x 120mm PWM reverse fans on the PSU shroud,
1 x 120mm PWM fan at the rear.
Supports 360mm Radiator at the Top
Optimized Airflow for GPU Cooling
Large side intake design enhances airflow, while about 30mm of clearance between the bottom fans and the GPU allows reverse fans to deliver direct, efficient cooling.
Powerful Cooling Compatibility
Max. CPU Cooler Height : 175mm
Supports RTX 50 Series Graphics Cards
Accommodates GPUs up to 405mm in length, ensuring compatibility with the latest RTX 50 Series and other high-end components.
Tool-Free Panel Design
4mm tempered glass side panel with tool-free snap-on design for easy installation and removal.
Type-C 3.2 Gen 2 ready
Equipped with one high-speed USB Type-C 10Gbps port.
Power
Reset
Headphone / Mic Combo Jack
USB 3.0 *2
Type-C 3.2 Gen 2 (10Gbps)
Effortless Cable Management
Includes 4 rubber grommets and 3 Velcro straps for neat cable management and organization.
Specifications
Case Specifications
Dimensions
478 x 222 x 465mm (DWH)
Form Factor
Mid Tower
Materials
Steel + Plastic + Wood
Mainboard Support
ATX, Micro-ATX , ITX
Front Access & Controls
Power, Reset, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack
Side Panel
4mm Tempered Glass
Drive Bays
Expansion Slots
7
3.5" / 2.5'
2 / 1
2.5"
1
Fan
Front
2 x 120mm / 2 x 140mm
Top
3 x 120mm / 2 x 140mm
Power Supply Shroud
2 x 120mm
Rear
1 x 120mm
Included Fan(s)
2 x 140mm PWM Fans at the front + 2 x 120mm PWM Reverse Fans on the PSU Shroud+ 1 x 120mm PWM Fan at the rear
Radiator Support
Front
120 / 140 / 240mm
Top
120 / 240 / 360mm
Rear
120mm (Length=160mm)
Clearance
Max GPU Length
=405mm
Max CPU Cooler Height
=175mm
Max PSU Length
(Cable included) =270mm
Miscellaneous
Dust Filter
Top / Bottom
Net Weight
6.85 Kg
Gross Weight
8.35 Kg
Warranty
2 Years
Warranty:
2 Year Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
|
COOLING
|
| Front fans installed |
2x 140 mm |
| Number of front fans supported (max) |
2 |
| Front fans diameters supported |
120,140 mm |
| Rear fans diameters supported |
120 mm |
| Top fans diameters supported |
120,140 mm |
| Bottom fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Number of top fans supported (max) |
3 |
| Number of bottom fans supported (max) |
2 |
| Rear fans installed |
1x 120 mm |
| Bottom fans installed |
2x 120 mm |
| Rear radiator fan sizes supported |
120 mm |
| Front radiator fan sizes supported |
120,140,240 mm |
| Top radiator fan sizes supported |
120,240,360 mm |
DESIGN
|
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
Plastic, Steel, Wood |
| Product colour |
Black |
| Reset button |
Yes |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Anti-dust filter |
Yes |
| Maximum CPU cooler height |
17.5 cm |
| Maximum graphics card length |
40.5 cm |
| Number of expansion slots |
7 |
| Maximum PSU length |
27 cm |
| Tempered glass panel(s) |
Yes |
PACKAGING DATA
|
| Package weight |
8.35 kg |
PORTS & INTERFACES
|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
POWER SUPPLY
|
| Power supply location |
Bottom |
| Power supply included |
No |
STORAGE
|
| Supported HDD sizes |
2.5,3.5" |
WEIGHT & DIMENSIONS
|
| Weight |
6.85 kg |
| Height |
465 mm |
| Width |
222 mm |
| Depth |
478 mm |
