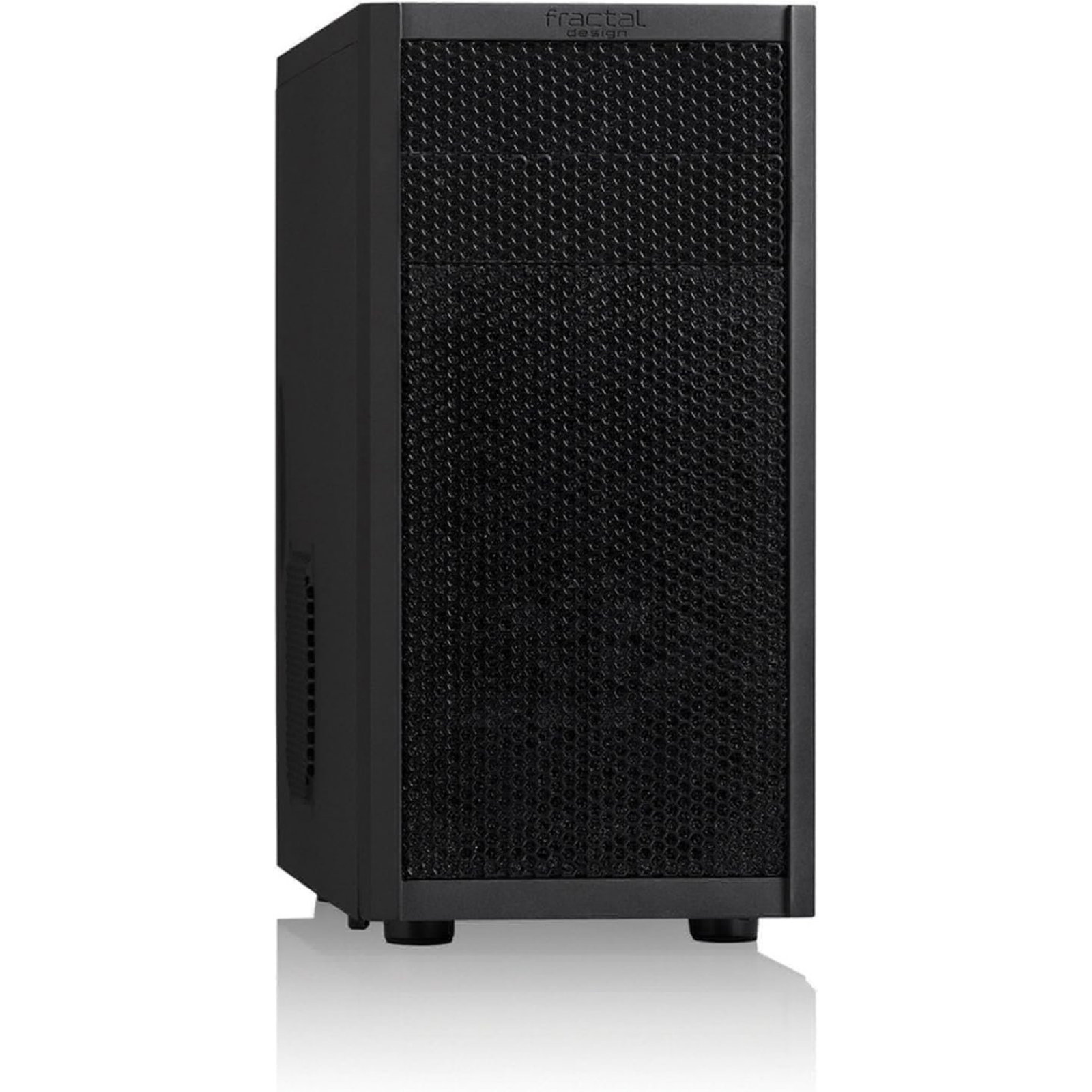

Fractal Design Core 1000
Simple yet elegant mesh front panel allowing increased airflow through the case. Optimized for performance in a compact, micro-ATX form factor with multiple cooling options. 1x USB 3.0 with internal connector, 1x USB 2.0
Key features
Simple yet elegant mesh front panel allowing for increased airflow through the case
Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
1x USB 3.0 with internal connector, 1x USB 2.0
One Silent Series R2 fan included: 1x 120 mm in front
A total of three fan slots (1x 120 mm in front, 1x 92 mm in rear, 1x 120 mm in side panel)
Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
Supports long graphics cards up to 350 mm in length
Supports various combinations of drive sets ups: 3x 2.5" SSD, 2x 3.5" HDD or 1x 2.5" SSD + 1x 3.5" HDD
Dust filter for front fan position
Specifications
Drive bay capacity
2x 3.5" HDD or 3x 2.5" SSD or 1x 3.5" HDD + 1x 2.5" SSD
ODD slots
2
FDD slot
1, using convertor in ODD slot (convertor included)
Expansion slots
4
Front ports
1x USB 3.0 with internal connector, 1x USB 2.0, 1x 3.5 mm audio in (mic), 1x 3.5 mm audio out (headphone), Power button with LED, HDD LED, Reset button
Total fan mounts
3
Front fan
1x 120 mm (1x 120 mm Silent Series R2 included)
Top fan
1x 92 mm
Side fan
1x 120 mm
Dust filters
Front fans
Compatibility
Power supply type
ATX
Motherboard compatibility
mATX, Mini ITX, DTX
PSU max length
185 mm (with optical drive)
GPU max length
350 mm in length with one HDD mounted, 210 mm in length with two/three HDD mounted
CPU cooler max height
148 mm
Dimensions
Case dimensions (WxHxD)
175 x 355 x 420 mm
Net weight
4.1 kg
Package dimensions (WxHxD)
225 x 415 x 475 mm
Package weight
5 kg
Volume
26.1 litres
Other
Warranty
2 Years
Package contents
Core 1000 USB 3.0 computer case, Accessory box, User manual
EAN
7350041081098
UPC
817301011099
Product code
FD-CA-CORE-1000-USB3-BL
Warranty:
2-Year Warranty
This product is covered by a **two-year Fractal Design manufacturer warranty** from the original date of purchase. Proof of purchase may be required.
Fractal Design normally resolves warranty issues by supplying an appropriate replacement part. For the quickest resolution, please ask the product owner or end user to submit a support request directly to Fractal Design:
https://support.fractal-design.com/support/home
Fractal Design will communicate directly with the product owner and arrange delivery of any approved replacement parts.
For products that are faulty on arrival, require a complete-unit replacement, cannot be resolved with a spare part, or need to be returned, the Target Components trade customer must contact Target Components Customer Service.
Please provide your Target order or invoice number, the product serial number, photographs where applicable, and details of the fault.
Goods must not be returned to Target Components without prior authorisation.
There are currently no data sheets available for this product.
