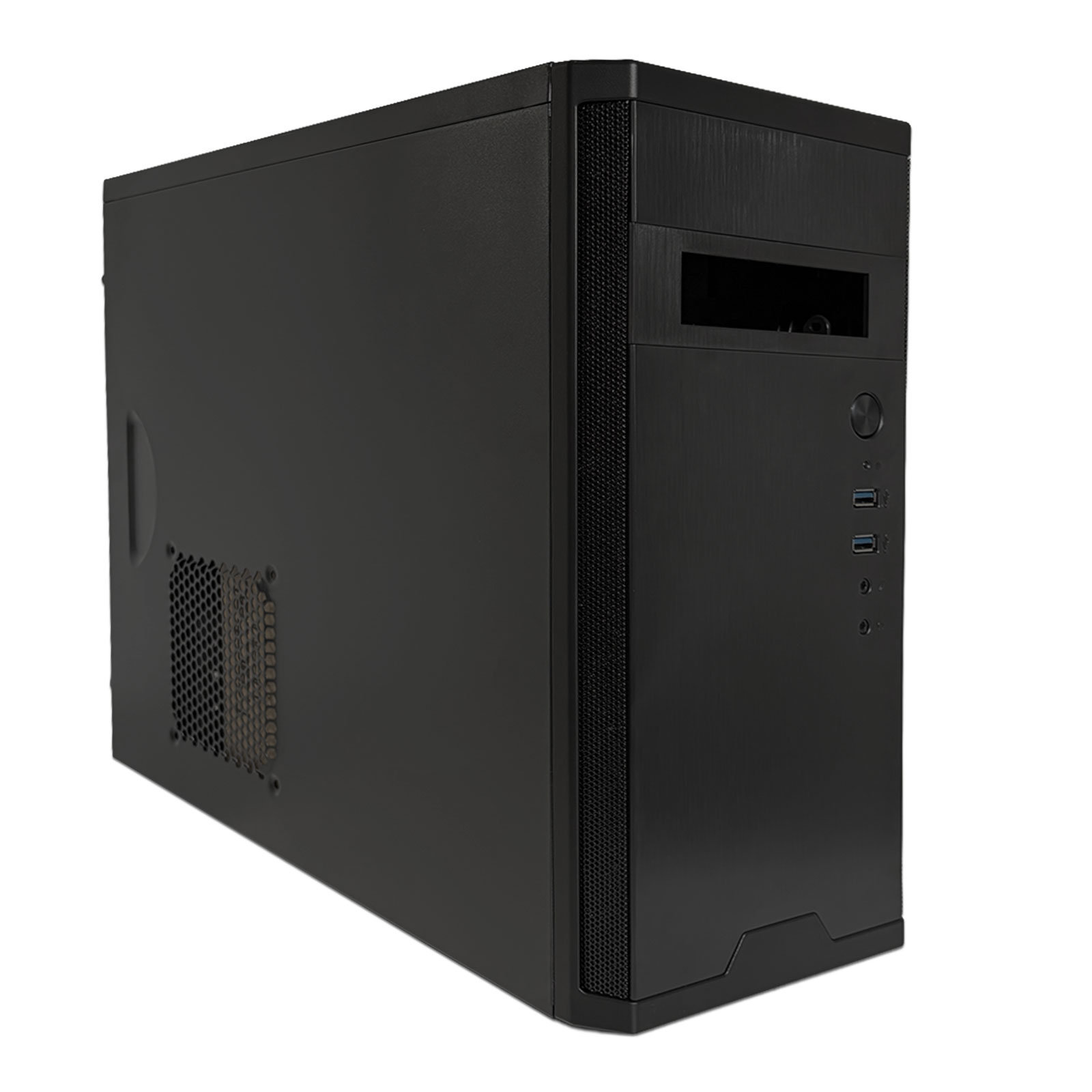

Fractal Design Core 1100 OEM – Black
A compact micro-ATX case with a brushed aluminium-look front panel, flexible storage options and front USB and audio connections. The Core 1100 provides three fan mounting positions and front dust filtration. This OEM version is supplied without case fans, allowing system builders to choose their own cooling configuration.
Key features
Compact design supporting micro-ATX and Mini-ITX motherboards
Black front panel with a brushed aluminium-look finish
1x USB 3.0 and 1x USB 2.0 front ports, plus headphone and microphone connections
Three fan mounting positions: 1x 120 mm front, 1x 92 mm rear and 1x 120 mm side
No case fans included
Vertical drive bracket supporting multiple HDD and SSD configurations
Silicone vibration-dampening grommets for 3.5" drive mounting
Supports graphics cards up to 350 mm, subject to drive and cable clearance
Front dust filtration
Two 5.25" optical drive bays
Specifications
Colour
Black
Drive bay capacity
2x 3.5" HDD or 3x 2.5" SSD/HDD or 1x 3.5" HDD + 1x 2.5" SSD/HDD
ODD slots
2x 5.25"
Expansion slots
4
Front ports
1x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x 3.5 mm microphone input, 1x 3.5 mm headphone output
Total fan mounts
3
Front fan
1x 120 mm (not included)
Rear fan
1x 92 mm (not included)
Side fan
1x 120 mm (not included)
Fans included
None
Dust filters
Front
Compatibility
Power supply type
ATX
Motherboard compatibility
Micro-ATX, Mini-ITX
PSU max length
185 mm with a typical-length optical drive installed
GPU max length
350 mm, subject to installed drives and cable clearance. Installed 3.5" drives may interfere with side-mounted power connectors on graphics cards longer than 170 mm.
CPU cooler max height
148 mm
Other
Manufacturer part number
OEM-CA-CORE-1100-BL
Westcoast product code
OEMCACORE1100BL
Warranty:
2-Year Warranty
This product is covered by a two-year Fractal Design manufacturer warranty from the original date of purchase. Proof of purchase may be required.
Fractal Design normally resolves warranty issues by supplying an appropriate replacement part. For the quickest resolution, please ask the product owner or end user to submit a support request directly to Fractal Design:
https://support.fractal-design.com/support/home
Fractal Design will communicate directly with the product owner and arrange delivery of any approved replacement parts.
For products that are faulty on arrival, require a complete-unit replacement, cannot be resolved with a spare part, or need to be returned, the Target Components trade customer must contact Target Components Customer Service.
Please provide your Target order or invoice number, the product serial number, photographs where applicable, and details of the fault.
Goods must not be returned to Target Components without prior authorisation.
