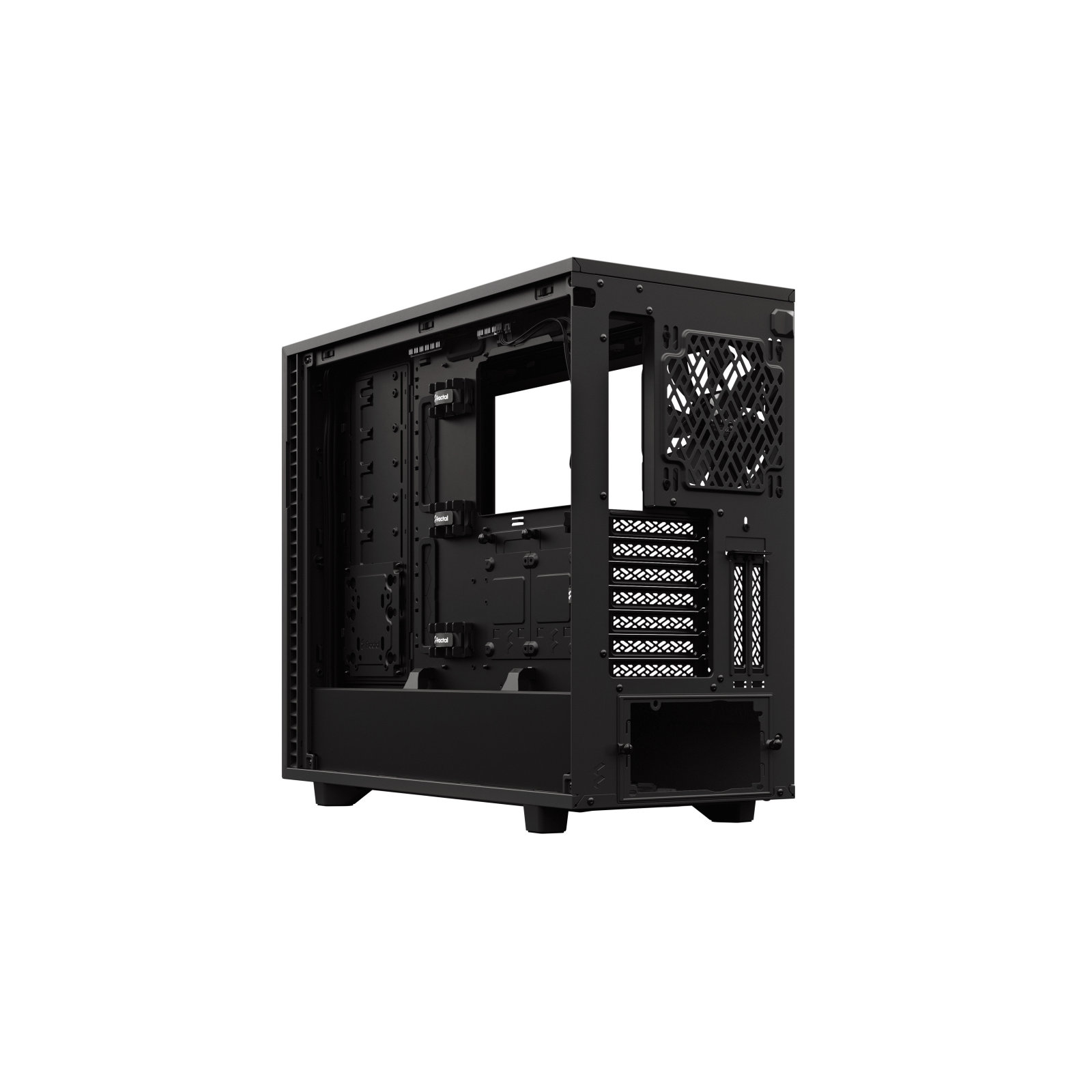

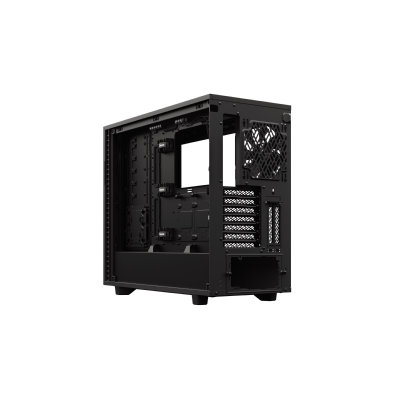

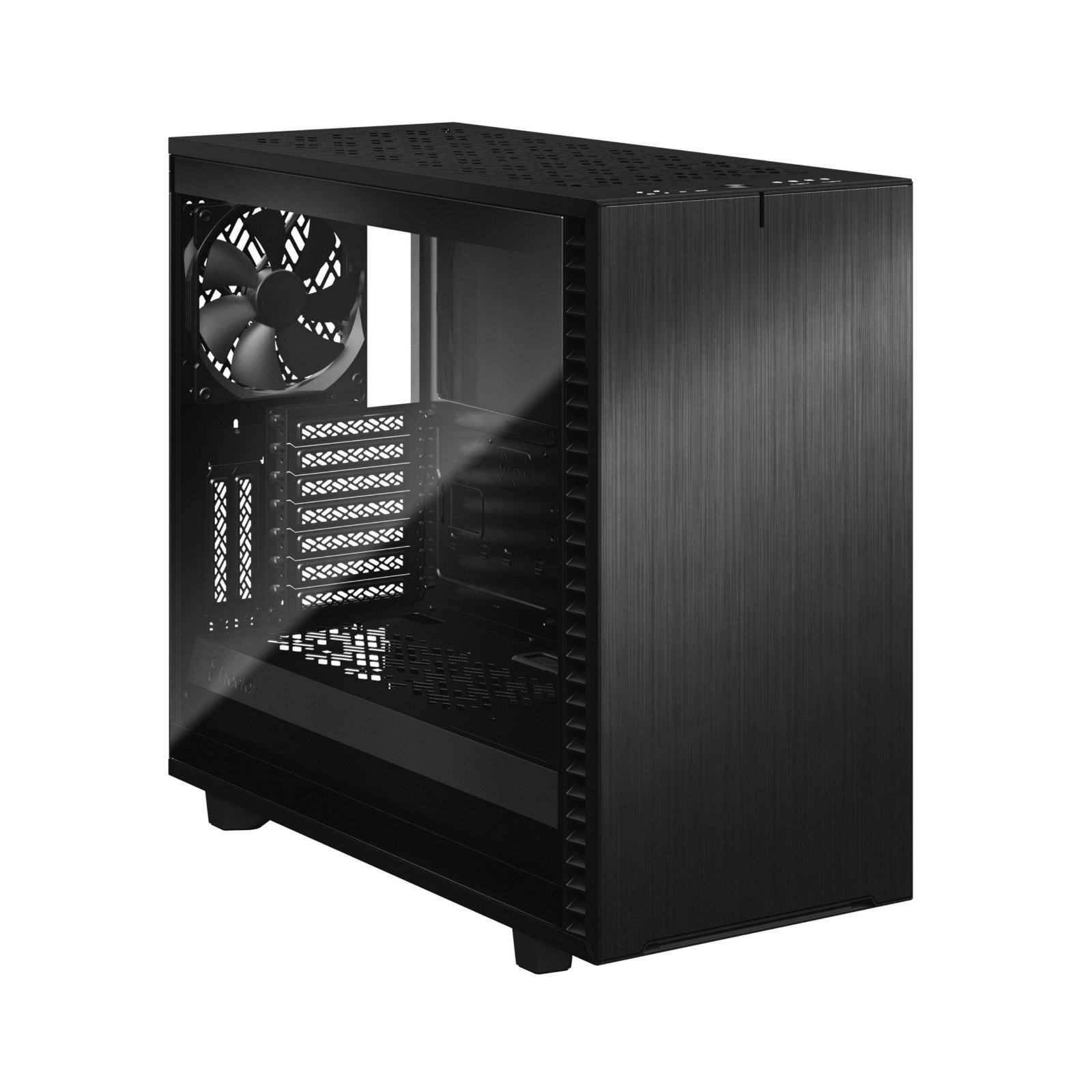

Fractal Design Define 7
The Fractal Design Define 7 is the pinnacle of the renowned Define Series, setting a high standard for mid-tower cases with exceptional modularity, flexibility and ease of use.
Its highly adaptable chassis design opens up to fully expose the case interior, making installation, cable management and upgrades easier. The anodised aluminium front panel features reversible dual-handed hinges, while Fractal's versatile Multibracket allows unused fan positions to be converted into HDD, SSD or pump mounts.
Open and Interchangeable Design
Swap in the included ventilated top panel to add three filtered fan positions, or remove the entire top section for unrestricted access when building and routing cables.
Superior Airflow and Cooling
Three Dynamic X2 GP-14 140 mm fans come pre-installed, with support for up to nine 120 mm or 140 mm fans in total.
Easy-to-clean, high-airflow nylon dust filters provide coverage at the top, front and full-length bottom of the case.
The single 5.25" optical drive bay can also be converted into an additional 140 mm front fan mount with a filtered louvre covering.
Extensive Water-Cooling Support
The Define 7 provides plenty of space for custom water-cooling systems, including large reservoirs and radiators up to 420 mm.
Radiator support includes:
• Up to 360/280 mm at the front
• Up to 360/420 mm at the top
• Up to 240/280 mm at the bottom
• 120 mm at the rear
Flexible Dual-Layout Interior
The adaptable interior can be configured in either Open Layout or Storage Layout depending on your requirements.
Open Layout provides maximum space for high-performance components and cooling hardware, with GPU support up to 470 mm.
Storage Layout allows extensive drive capacity while retaining support for powerful system configurations.
Motherboards up to 285 mm wide E-ATX are supported alongside standard ATX, Micro-ATX and Mini-ITX boards.
Extensive Storage
In Storage Layout, the Define 7 supports up to 14 HDD/SSD positions alongside four dedicated 2.5" SSD positions.
Six universal HDD/SSD brackets are included, with 14 mounting positions available in total.
Two dedicated SSD brackets are included, with four mounting positions available.
The versatile Multibracket can also convert an unused fan position into an additional HDD, SSD or pump mounting point.
A sturdy HDD cage with vibration-dampened trays helps reduce drive noise.
Specifications
3.5"/2.5" Universal Drive Brackets
6 included, 14 positions total
Dedicated 2.5" Drive Brackets
2 included, 4 positions total
5.25" Drive Bays
1
Expansion Slots
7 + 2
Front I/O
1 x USB 3.2 Gen 2x2 Type-C (20 Gbps)
2 x USB 3.0
2 x USB 2.0
Audio I/O
Power button
Reset button
Fan Support
Total Fan Mounts
9 x 120/140 mm
Front
3 x 120/140 mm
2 x Dynamic X2 GP-14 included
Top
3 x 120/140 mm
Rear
1 x 120/140 mm
1 x Dynamic X2 GP-14 included
Bottom
2 x 120/140 mm
Dust Filters
Top, 2 x front and full-length bottom
Fixed Velcro Straps
Yes
Cable Routing Grommets
Yes
Captive Thumbscrews
HDD brackets, SSD brackets and PSU bracket
Left Side Panel
Industrial sound-dampened steel or tempered glass, depending on model
Right Side Panel
Industrial sound-dampened steel
Compatibility
Motherboard Support
E-ATX up to 285 mm / ATX / Micro-ATX / Mini-ITX
Power Supply Type
ATX
Maximum PSU Length
250 mm with HDD cage installed
Maximum GPU Length
Storage Layout: 290 mm
Open Layout: 470 mm
Open Layout with front fan: 445 mm
Maximum CPU Cooler Height
185 mm
Front Radiator Support
Up to 360/280 mm
Top Radiator Support
Up to 360/420 mm
Rear Radiator Support
120 mm
Bottom Radiator Support
Up to 240/280 mm
Cable Routing Space
30 mm
Vertical GPU Support
Compatible with Flex 2, Flex B-20 or Flex VRC-25 vertical GPU mounting solutions.
65 mm total clearance. A standard 2-slot GPU under 38 mm thick is recommended for optimum cooling.
Dimensions and Weight
Case Dimensions (L x W x H)
547 x 240 x 475 mm
Case Dimensions Without Feet, Protrusions or Screws
533 x 240 x 451 mm
Package Dimensions (L x W x H)
558 x 363 x 641 mm
Net Weight
Solid Version: 13.49 kg
Tempered Glass Version: 13.45 kg
Package Weight
Solid Version: 15.98 kg
Tempered Glass Version: 15.94 kg
Volume
57.7 litres
Warranty
2 Years
Package Contents
Define 7 case
Accessory box
User manual
Ventilated top panel
4 additional HDD/SSD trays, providing 6 trays in total
Warranty:
2-Year Warranty
This product is covered by a two-year Fractal Design manufacturer warranty from the original date of purchase. Proof of purchase may be required.
Fractal Design normally resolves warranty issues by supplying an appropriate replacement part. For the quickest resolution, please ask the product owner or end user to submit a support request directly to Fractal Design:
https://support.fractal-design.com/support/home
Fractal Design will communicate directly with the product owner and arrange delivery of any approved replacement parts.
For products that are faulty on arrival, require a complete-unit replacement, cannot be resolved with a spare part, or need to be returned, the Target Components trade customer must contact Target Components Customer Service.
Please provide your Target order or invoice number, the product serial number, photographs where applicable, and details of the fault.
Goods must not be returned to Target Components without prior authorisation.
|
COOLING
|
| Front fans installed |
2x 140 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140 mm |
| Rear fans diameters supported |
120,140 mm |
| Top fans diameters supported |
120,140 mm |
| Bottom fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Number of top fans supported (max) |
3 |
| Number of bottom fans supported (max) |
2 |
| Rear fans installed |
1x 140 mm |
| Liquid cooling capability |
Yes |
| Front radiator fan sizes supported |
280,360 mm |
| Rear radiator installed |
Yes |
| Front radiator installed |
No |
| Top radiator installed |
No |
| Top radiator fan sizes supported |
360,420 mm |
| Rear radiator fan size installed |
120 |
| Bottom radiator fan sizes supported |
240,280 mm |
DESIGN
|
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
Aluminium, Steel |
| LED indicators |
Yes |
| Product colour |
Black |
| Illumination |
No |
| Cable management |
Yes |
| Reset button |
Yes |
| Supported motherboard form factors |
ATX, micro ATX, Micro-ITX |
| Anti-dust filter |
Yes |
| Number of 5.25" bays |
1 |
| Number of 3.5" bays |
6 |
| Suitable for |
Gaming |
| Side window |
No |
| Number of internal 3.5" bays |
6 |
| Maximum CPU cooler height |
18.5 cm |
| Maximum graphics card length |
49.1 cm |
| Number of expansion slots |
9 |
| Maximum PSU length |
25 cm |
| Number of 2.5" bays |
2 |
| Number of external 5.25" bays |
1 |
| On/off button |
Yes |
| Tempered glass panel(s) |
No |
LOGISTICS DATA
|
| Harmonized System (HS) code |
84733080 |
OTHER FEATURES
|
| Manual |
Yes |
| Volume |
57.7 L |
| Harmonized System (HS) code |
84733080 |
PACKAGING CONTENT
|
| Manual |
Yes |
PORTS & INTERFACES
|
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
POWER SUPPLY
|
| Number of power supply units |
1 |
| Power supply location |
Bottom |
| Power supply included |
No |
| Supported power supply form factors |
ATX |
STORAGE
|
| Supported HDD sizes |
2.5,3.5" |
WEIGHT & DIMENSIONS
|
| Weight |
13.5 kg |
| Height |
475 mm |
| Width |
240 mm |
| Depth |
547 mm |
