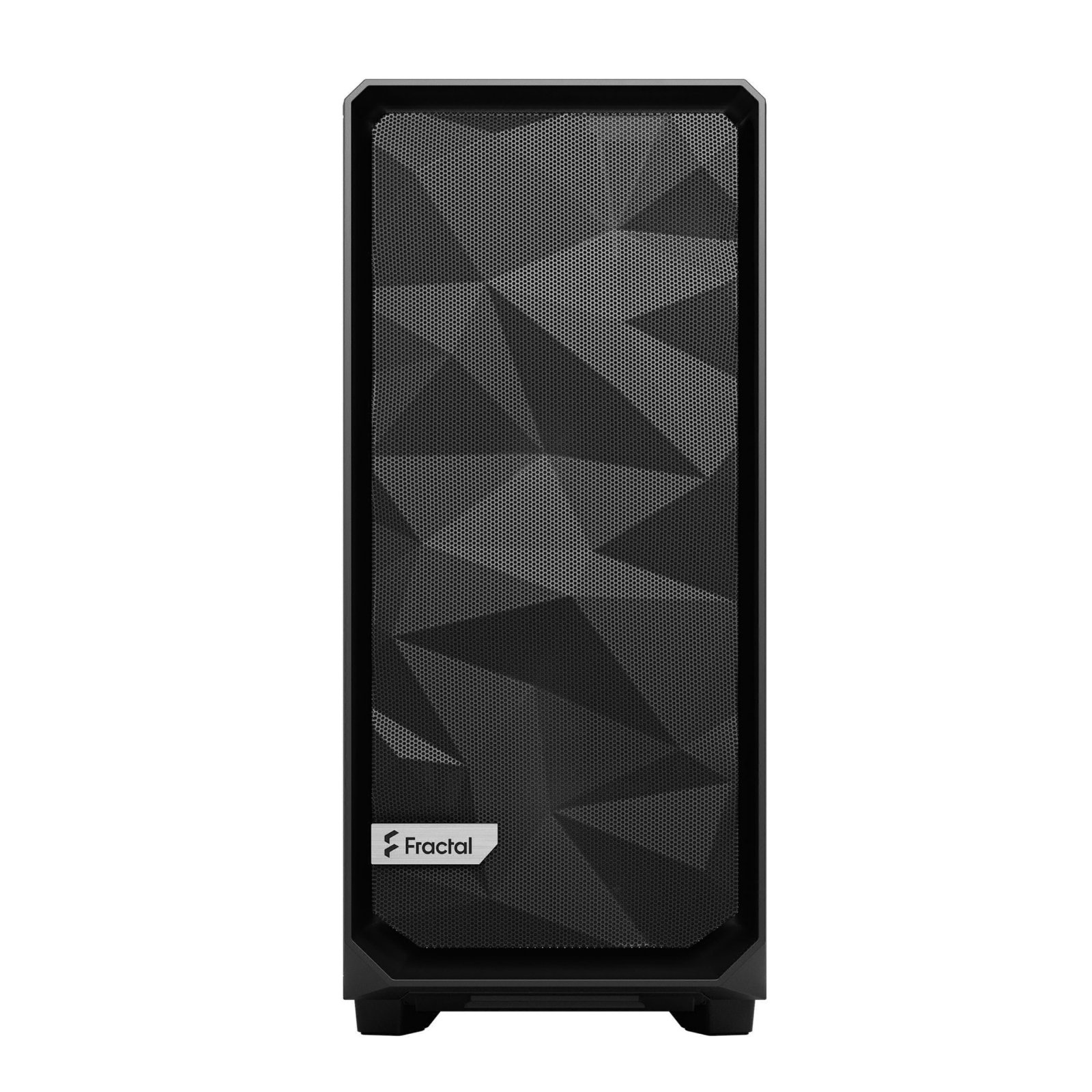

Fractal Design Meshify 2 Compact
Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.2 Type-C port.
Removable front filter
New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
New front nylon filter that can be removed for increased airflow
Robust cooling
Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
Open interior layout creates a smooth airflow path from intake to exhaust
Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
Fully featured
Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
Flexible storage options supporting two 2.5?/3.5? drives and up to four SSDs (two SSD brackets included)
Improved cable routing with three integrated cable alignment clips and six velcro straps
The fully removable top panel opens to provide excellent interior access
Specifications
3.5"/2.5" Universal drive mounts
2 (included)
Dedicated 2.5" drive mounts
4 (2 included)
Expansion slots
7
Front interface
1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts
7x 120 or 4x 140 mm and 2x 120 mm
Front fan
3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)
Top fan
2x 120/140 mm
Rear fan
1x 120 mm, (1x Dynamic X2 GP-12 included)
Bottom fan
1x 120 mm (requires removal of HDD cage)
Dust filters
Top, front and bottom
Fixed velcro straps
Yes
Cable routing grommets
Yes
Captive thumbscrews
HDD, SSD and PSU brackets
Left side panel
Steel
Right side panel
Steel
Compatibility
Motherboard compatibility
ATX / mATX / Mini-ITX
Power supply type
ATX
PSU max length
200 mm (165 mm with HDD cage and front fan)
GPU max length
341 mm (360 mm without front fan)
CPU cooler max height
169 mm
Front radiator
Up to 360/280 mm
Top radiator
Up to 240 mm
Rear radiator
120 mm
Bottom radiator
120 mm (requires removal of HDD cage)
Cable routing space
17-28 mm
Radiator Support – Additional Details
Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.
Dimensions
Case dimensions (LxWxH)
424 x 210 x 475 mm
Case dimensions w/o feet/protrusions/screws
412 x 210 x 455 mm
Package dimensions (LxWxH)
542 x 320 x 554 mm
Net weight
Solid: 7.7 kg TG: 8.1 kg
Gross weight
Solid: 9.3 kg TG: 9.8 kg
Volume
39.4 Liters
Other
Warranty
2 Years
Package contents
Meshify 2 Compact Case, User manual, Accessory box
EAN: 7340172702320
UPC: 843276102326
Warranty:
2-Year Warranty
This product is covered by a **two-year Fractal Design manufacturer warranty** from the original date of purchase. Proof of purchase may be required.
Fractal Design normally resolves warranty issues by supplying an appropriate replacement part. For the quickest resolution, please ask the product owner or end user to submit a support request directly to Fractal Design:
https://support.fractal-design.com/support/home
Fractal Design will communicate directly with the product owner and arrange delivery of any approved replacement parts.
For products that are faulty on arrival, require a complete-unit replacement, cannot be resolved with a spare part, or need to be returned, the Target Components trade customer must contact Target Components Customer Service.
Please provide your Target order or invoice number, the product serial number, photographs where applicable, and details of the fault.
Goods must not be returned to Target Components without prior authorisation.
There are currently no data sheets available for this product.
