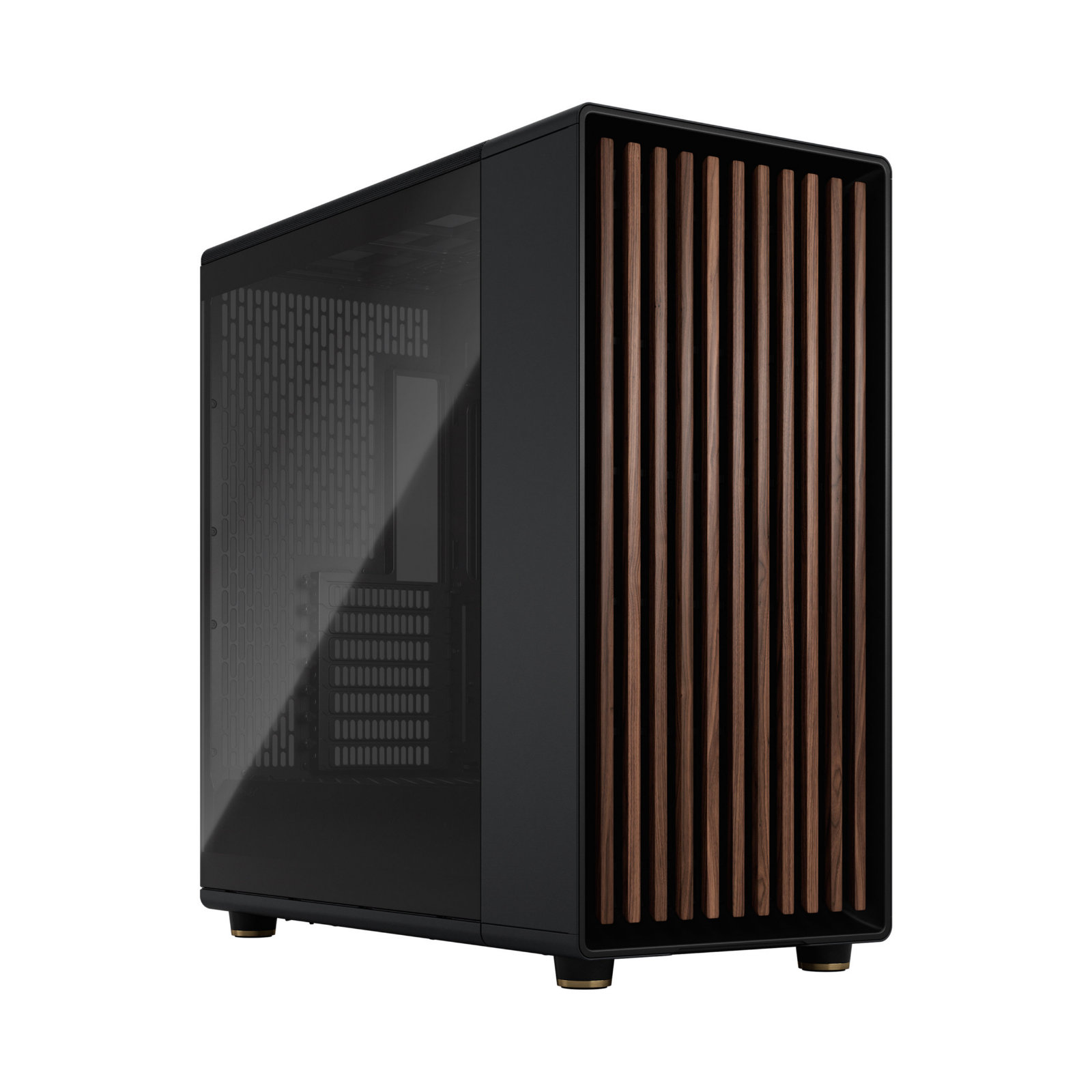

Fractal Design North XL Charcoal Black
North XL combines a transformative take on the gaming PC case with a generous form factor. It fuses design materials with airflow engineering, to make performance gaming a stylish addition to the living space. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building and gaming experience. The North XL RC version offers compatibility with reverse connector motherboards for an even cleaner finish.
Natural design
Enjoy a sophisticated looking case which integrates effortlessly into your living space
Enhance your gaming station with an FSC-certified oak or walnut front, a faux leather tab and sleek steel or brass details
Gaming ready
Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
Make the most of your build with a generous layout compatible with full E-ATX motherboards (TG and Mesh versions), or ATX hidden connector motherboards (RC version)
Extended cooling
Supports front radiators up to 420 mm and top radiators up to 360 mm
Get a head start on your build with the three included 140 mm Aspect PWM fans
Ventilated performance
Natural ventilation through an open front and a stylishly integrated mesh top panel
The mesh version of the case features a full mesh side panel in addition to the top
Naturally unique
Enjoy a unique finish, with front panel bars cut from FSC-certified oak or walnut
Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab
Build versatility
Make the most of your building experience with an intuitive interior layout
Designed for E-ATX / ATX / mATX / mITX motherboards (Mesh & TG versions only)
Create a clean build with a case designed for reverse connector motherboards and with ample cable routing space. (RC version only)
Specifications
Dedicated 2.52 drive mounts
2
Combined 3.5/2.5" drive mounts
2 included
5.25" drive mounts
0
Expansion slots
7
Front interface
1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2xUSB 3.0, Audio & Mic
Total fan mounts
7 x 120 mm or 6 x 140 mm
Front fan
3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included)
Top fan
3 x 120 mm, 2 x 140 mm or 2 x 180 mm
Rear fan
1 x 120/140 mm
Dust filters
Front, PSU
Fixed cable straps
Yes
Cable routing grommets
Yes )
Captive thumbscrews
HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
Left side panel
Tempered Glass
Right side panel
Steel
Compatibility
Motherboard compatibility
E-ATX / ATX / mATX / Mini-ITX
Power supply type
ATX
PSU max length
1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm
GPU max length
413 mm with front fan mounted / 380 mm with a 33 mm-thick 420/360 mm front mounted radiator
CPU cooler max height
155 mm with Fan Bracket (Mesh version) / 185 mm without (TG Version) / 169 mm (RC Version)
Front radiator
Up to 420/360 mm
Top radiator
Up to 280/360 mm
Rear radiator
120/140 mm
Cable routing space
29 mm
Dimensions
Case dimensions (LxWxH)
503 x 240 x 509 mm
Case dimensions w/o feet/protrusions/screws
490 x 240 x 490 mm
Net weight
9.5kg
Package dimensions (LxWxH)
604 x 355 x 608 mm
Gross weight
11.7kg (TG)
Other
Package contents
North XL case, Accessory Box, User Manual
EAN
Charcoal Black TGD: 7340172706540
UPC
Charcoal Black TGD: 843276106546
Warranty
2 Years
