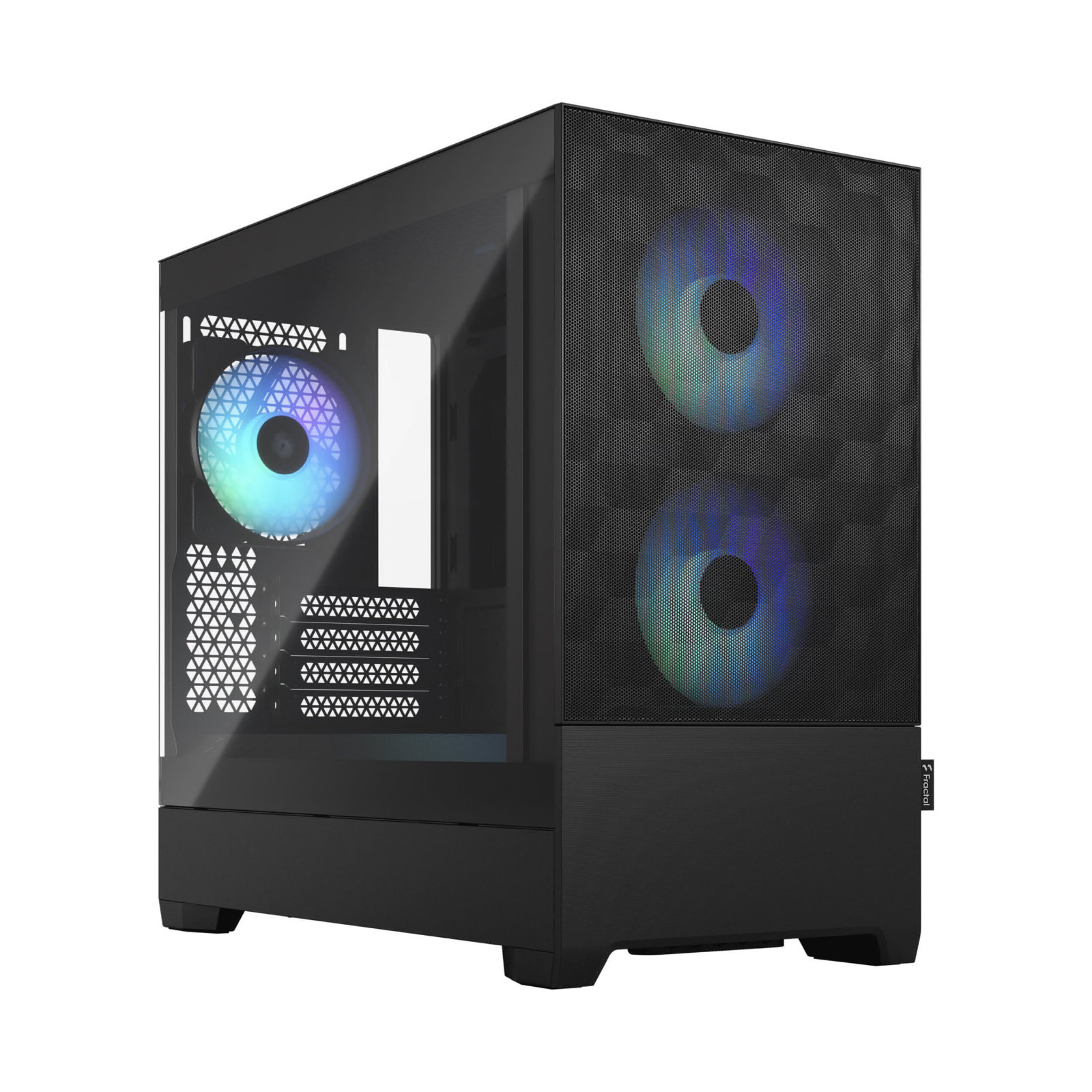

Fractal Design Pop Mini Air
Experience a fusion of style and function with Pop Series. Pop Air brings attitude to airflow, melding precision engineering with dynamic design.
A hidden compartment
Two neatly concealed 5.25" bays with storage drawer and magnetic cover
Flexible storage support
Two ultra-versatile storage trays each support a 3.5" and a 2.5" drive simultaneously. A dedicated SSD bracket for 2x 2.5" is also included
Easy cable management with multiple tie-down points, pre-mounted cable ties and convenient extra-large pass-through holes
Aspect RGB Fans
Comes with four 120mm Aspect RGB fans pre-installed, featuring Trip Wire technology and rifle bearings for enhanced blade efficiency and reliable cooling performance.
Specifications
Dedicated 2.52 drive mounts
4 (2 included)
Combined 3.5/2.5" drive mounts
2 (2 included)
5.25" drive mounts
2
Expansion slots
4
Front interface
2x USB 3.0* (* USB Type-C (10 Gbps) add-on available separately), Audio,
Total fan mounts
5 x 120 mm or 2x 140 mm + 1 x 120mm
Front fan (Non-RGB version)
2x 120/ 1 x 140 mm (2x Aspect 12 included)
Top fan
2x 120/ 1 x140 mm
Rear fan
1x 120 mm (1x Aspect 12 RGB included)
Bottom fan
N/A
Dust filters
Top (perforated plastic), PSU (nylon), Front (perforated steel)
Cable routing grommets
No
Fixed cable ties
Yes, 2 pcs
Captive thumbscrews
HDD brackets, SSD brackets, Side panels
Left side panel
Tempered glass
Right side panel
Solid steel
Compatibility
Motherboard compatibility
mATX / Mini ITX
Power supply type
ATX
PSU max length
150 mm
GPU max length
365 mm with front fan mounted
CPU cooler max height
170 mm
Front radiator
Up to 240mm
Top radiator
Up to 240 mm (Up to 46mm RAM height)
Rear radiator
1x 120 mm
Bottom radiator
N/A
Cable routing space
19 mm
Dimensions
Case dimensions (LxWxH)
432 x 215 x 393 mm
Net weight
5.96kg
Package dimensions (LxWxH)
514 x 293 x 470 mm
Gross weight
7.24kg
Other
Package contents
Pop Mini Air case, Accessory bag, User manual
EAN (Non-RGB Versions)
RGB Black TG Clear: 7340172703600
UPC (Non-RGB Versions)
RGB Black TG Clear: 843276103606
Warranty
2 years
