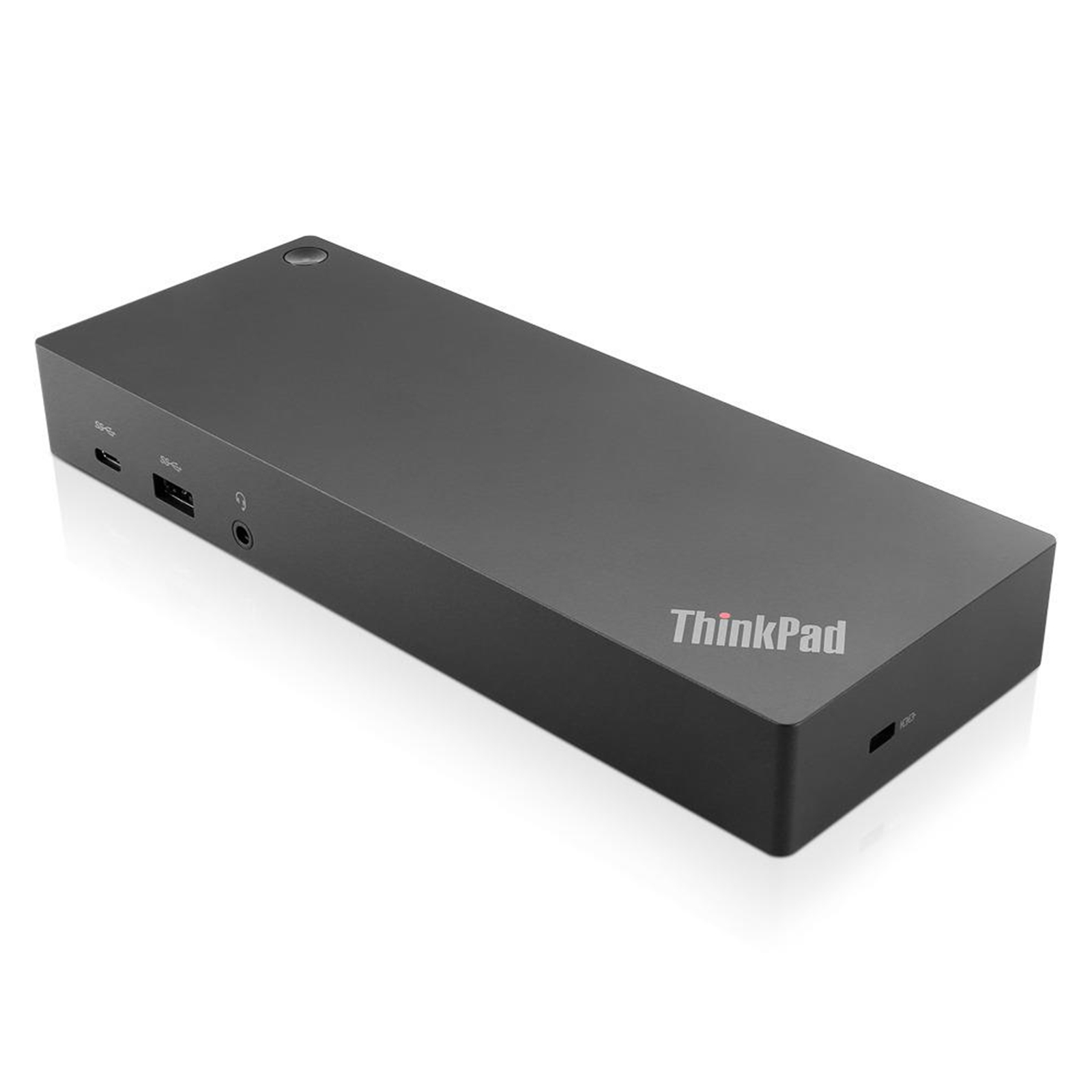

The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. It features enterprise-class manageability like PXE boot and MAC address pass-through. The ThinkPad Hybrid USB-C with USB-A Dock offers three high-speed USB 3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. With the included USB-C to USB-A adaptor, it can also provide port replication to non-Lenovo or non-USB-C notebooks.
One dock for all notebooks
Enhances the performance of Lenovo USB-C notebooks and tablets through USB-C connection, as well as previous generation and market notebooks through the USB-C to USB-A adapter.
Rich performance
Provides up to dual UHD 4K display with DisplayPort™ and HDMI™ ports. Up to 10 Gbps data transfer speed on three USB 3.1 Gen 2 ports, and rapid charging for most current ThinkPad family notebooks.
Enterprise manageability and simplification
Host of manageability features like PXE boot, Wake-on-LAN from sleep mode, and MAC address pass-through. Ideal for enterprise customers.
Tech Specs
Color
Black
Max Number of External Monitors
2
New Weight
480 g
Refresh Rate
DisplayPort: 3840 x 2160 @ 60 Hz, HDMI: 3840 x 2160 @ 60 Hz, Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz,, "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop.
AC Plug
UK Standard Plug Type G
Hardware Requirements
Machine with full function USB-C port/USB 3.0 Port
Warranty Type
Customer Replaceable Unit (CRU)
Output Power
90W
Brand
ThinkPad
OS Requirements
Windows 11, Windows 10, Windows 7
Agency Approvals
BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI
Audio Ports
1x 3.5 mm Stereo/Mic Combo Port
Charging Port
ThinkPad Slim-tip Port
USB Ports
1 x USB-C (Data, 5V/3A power), 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on), 2 x USB 2.0
Video Ports
2x DisplayPort 1.2; 2x HDMI
Package Type
Brown box
Warranty Period
3 Year
Maximum Operating Temperature
0°C
Minimum Operating Temperature
0°C
Driver Needed
Preloaded in select ThinkPad laptops
Input Power
135W
Power Button
Yes
Power Delivery
Yes
Weight
480 g (1.05 lbs)
Warranty
Customer Replaceable Unit (CRU)
Warranty:
1 Year Manufacturers Carry-In Warranty, Tel: 03337773991 Lenovo will first go through some fault finding/troubleshooting routines to see if they can solve the problem.
Within DOA Period: Lenovo will issue an authorisation number for return to the dealer/distributor.
Outside DOA Period: Lenovo will issue an RMA number and will handle the warranty direct with the end user (unless otherwise instructed).
This DOA period can vary so please verify this information with the manufacturer.
The item will have a base warranty when you first receive it. A base warranty is the manufacturing warranty to protect the product once it leaves the factory. Once the product is purchased and registered, the base warranty is deactivated and switches to the full consumer warranty providing the level of service that is included with the machine.
|
LOGISTICS DATA
|
| Harmonized System (HS) code |
84733020 |
NETWORKING
|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| 10G support |
No |
PACKAGING CONTENT
|
| AC adapter included |
Yes |
| Cables included |
AC, USB Type-A to USB Type-C |
| User guide |
Yes |
PERFORMANCE
|
| Data transfer rate |
10 Gbit/s |
| Product colour |
Black |
| Card reader integrated |
No |
| Brand compatibility |
Lenovo |
| Optical drive included |
No |
PORTS & INTERFACES
|
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
1 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity |
2 |
| Headphone connectivity |
3.5 mm |
| DisplayPorts quantity |
2 |
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
TECHNICAL DETAILS
|
| Harmonized System (HS) code |
84733020 |
WEIGHT & DIMENSIONS
|
| Weight |
480 g |
| Height |
30 mm |
| Width |
210 mm |
| Depth |
80 mm |
