Target Components

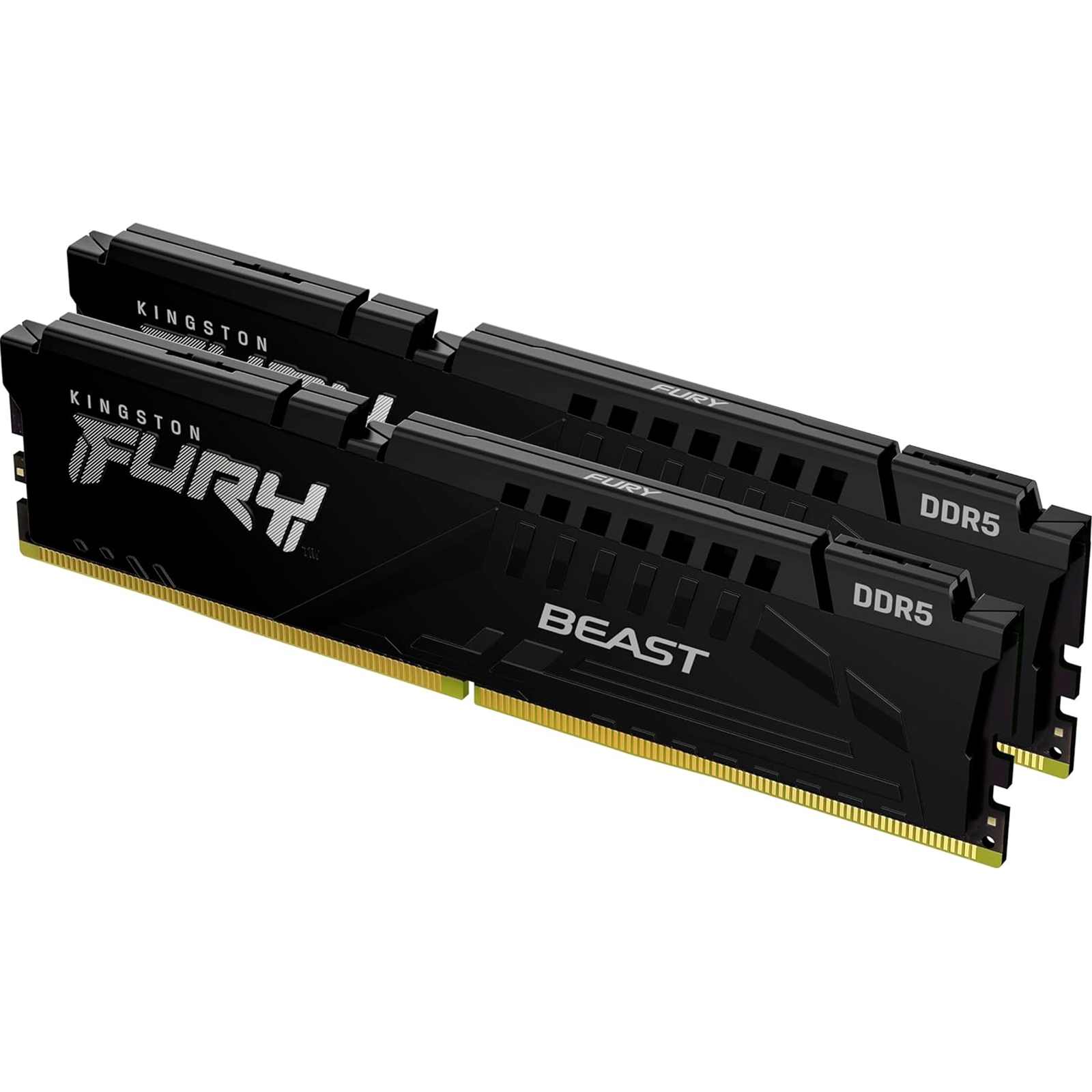

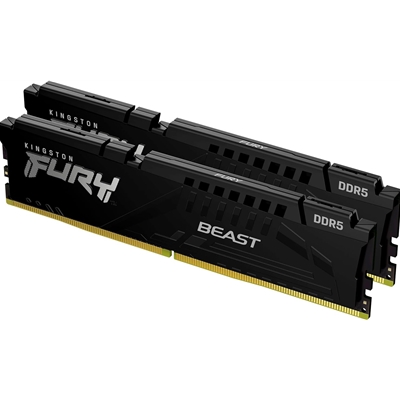

Kingston Fury Beast 64GB 32GB 4G x 64-Bit x 2 pcs.) DDR5-5600 CL36 288-Pin DIMM Kit

Description
Kingston FURY KF556C36BBEK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components permodule. Each module kit supports AMD EXPO v1.0 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

features
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37? (34.9mm), w/heatsink

Specifications

Memory Capacity
64GB Kit (32GB x2)

Module Quantity
2 Modules

Speed (Data Rate)
5600MT/s (PC5-44800)

Speed (Clock Rate)
2800Mhz

Module Type
DIMM

Error Check
Non-ECC

Model/Series/Type
Fury Beast

CAS Latency
CL36

Form Factor
DDR5

Rank
2R

CL(IDD)
40 Cycles

Row Cycle Time (tRCmin)
48ns(min.)

Refresh to Active/Refresh
295ns(min.)

Row Active Time (tRASmin)
32ns(min.)

UL Rating
94 V - 0

Operating Temperature
0C to +85C

Storage Temperature
-55C to +100C

SKU
KF556C36BBEK2-64EAN/

UPC Code
740617331745

Brand
Kingston

Warranty
Lifetime

Pins
288 Pin
