Target Components

- Adds 3 USB 3.2 / 3.1 Gen 1 / USB 3.0 Type A ports, an HDMI and VGA port as well as a Gigabit Ethernet port to a laptop
- Supports 4K UHD 3840x2160@30Hz for HDMI displays and Full HD 1920x1080@60Hz for VGA displays
- Features DisplayPort Alternate Mode
- USB Power Delivery 3.0 capable up to 100W
- 2 year warranty

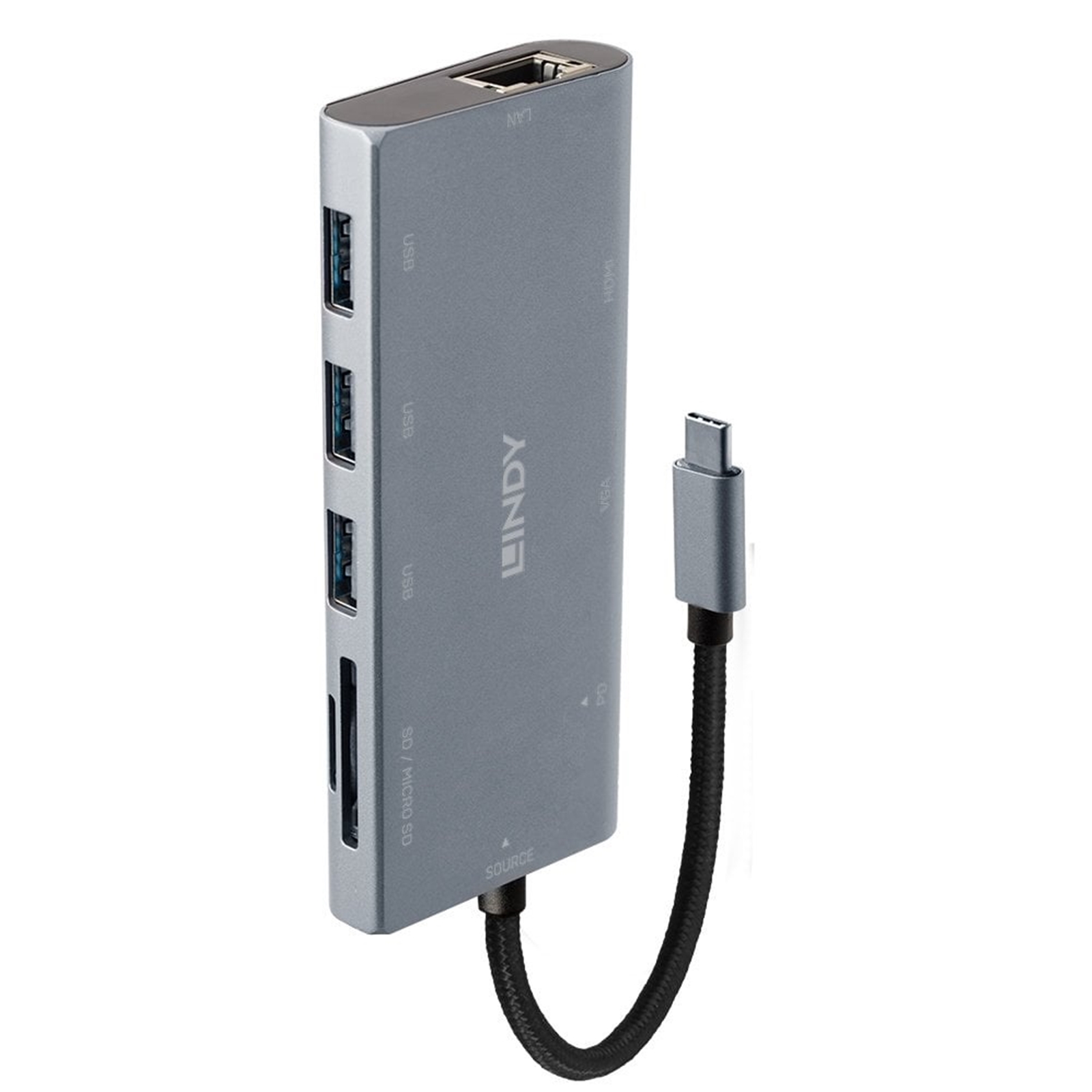

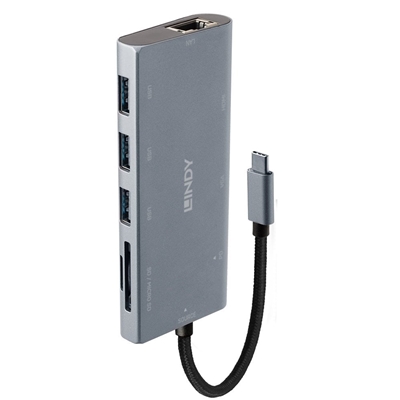

The DST-Mini Plus with VGA is a compact, multifunctional solution for hybrid workers. Housed in a robust aluminium with a high-quality braided USB-C cable, this dock has been designed for durability during travel. With support for HDMI and VGA, it is ideal for those who have an older legacy monitor they wish to plug their device into.

Extended Displays
This docking station can support a 4k extended display at 30Hz or 1080p Full HD 60Hz via its HDMI port. It does this through a single USB-C connection using DisplayPort Alternate Mode. Alternatively, you can access crisp 1080p Full HD via the legacy VGA connection. If both video outputs are connected, 1080p Full HD is possible with the displays showing mirroring content

Added Connectivity
Providing three SuperSpeed USB Type A ports (5Gbps), Card Readers (SD & microSD), USB-C PD, Gigabit Ethernet, VGA and HDMI, the DST-Mini Plus unlocks a world of connectivity for your device. With a single USB-C connection, you can connect USB accessories such as keyboard and mice as well as expand your storage and take advantage of a lightening quick wired Ethernet connection.

Pass-through Charging
Thanks to the USB-C Power Delivery, by connecting a USB-C charger to the docking station you can expect up to 100W charging to any connected laptop (depending on the USB-C charger and how much power the dock is using). Simply connect one USB-C cable and be confident that all your connected device will be fully charged and ready to go.

Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

Specifications
Interface: USB Type C to 1x VGA / 1x HDMI / 1x RJ45 / 3x USB 3.0 Type A / 1x microSD / 1x SD
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, VGA, HDMI, Gigabit LAN
Supported Bandwidth: 5 Gbps, 10/100/1000Mbps
Maximum Input Resolution: 3840x2160@30Hz
Maximum Output Resolution:
3840x2160@30Hz (HDMI), 1920x1080@60Hz (VGA)
Simultaneous connection with the same video content:
1920x1080@60Hz each (VGA / HDMI)
Chipset: RTL8153B, EP9632G, GL3510
Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, ChromeOS
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP2.2
Supported Audio: -
Separate Audio Ports: -
Special Features: DisplayPort Alternate Mode

Connectors
Inputs: 1 x USB Type C (Male)
Outputs: 1x USB Type C (Female), 1x VGA (Female), 1x HDMI (Female), 1x RJ45 (Female), 3x USB Type A (Female), 1x SD slot, 1x microSD slot
Power: -

Physical Properties
Dimensions WxDxH: 180x17x49mm (7.09x0.67x1.93in)
Housing Material: Aluminium
Net Weight: 0.09kg (0.2lb)
Operating Temperature: 0° - 45°C (32°F - 113°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 – 80% RH (non-condensing)
Power Requirements: Bus-powered
Colour: Grey

Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.1kg (0.22lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, REACH & RoHS, CP65

Package contents
USB 3.2 Type C Laptop Mini Docking Station
Lindy Manual
