Target Components

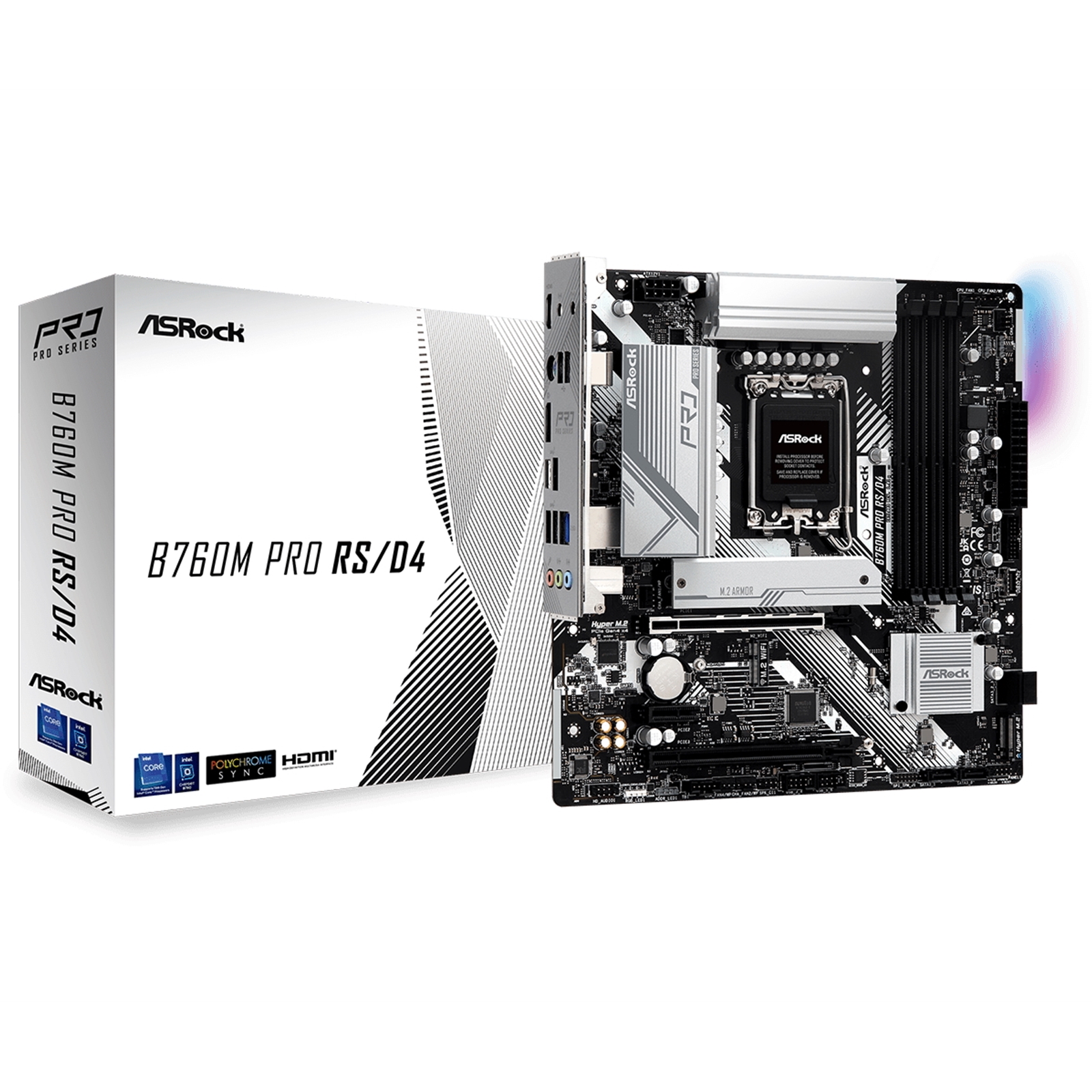

ASRock B760M PRO RS/D4 Motherboard, Intel Socket 1700, Supports 12th/13th Gen, 2x PCIe 4.0 x16, 1x PCIe 4.0 x1, Hyper M.2, Micro ATX, USB Type-C, LAN, HDMI, DisplayPort

Key Specifications
Socket1700
CPU CompatibilityIntel 12th/13th/14th Gen
ChipsetIntel B760
Form FactorMicro ATX
Memory SlotsDDR4 - 4 Slots
M.2 CompatibilityPCIe
USB CYes
/productImages/80/MBASR-B76MPRORS.JPG
/productImages/80/178845.JPG
/productImages/80/178846.JPG
/productImages/80/178847.JPG
/productImages/80/178848.JPG
/productImages/80/178849.JPG
Manufacturer : ASROCK
EAN : 4710483941719
Manufacturer Part Code : B760M PRO RS/D4
Weight : 1.3 kg
Login For Pricing

Key Specifications
Socket1700
CPU CompatibilityIntel 12th/13th/14th Gen
ChipsetIntel B760
Form FactorMicro ATX
Memory SlotsDDR4 - 4 Slots
M.2 CompatibilityPCIe
USB CYes
Manufacturer :
ASROCK

EAN :
4710483941719

Manufacturer Part Code :
B760M PRO RS/D4

Weight :
1.3 kg
Recommended Products
1295System Memory
See details
1286Processors
See details
1292Solid State Drives
See details

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


Key Features
Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
7+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR4 5333MHz (OC)
2 PCIe 4.0 x16, 1 PCIe 4.0 x1
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN,
Supports ASRock Auto Driver Installer


Specifications

CPU
Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)

Chipset
Intel® B760

Memory
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS
128Mb AMI UEFI Legal BIOS with GUI support

Graphics
Intel® Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
1 x PCIe 4.0 x1 Slot (PCIE2)*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Supports AMD CrossFire™

Storage
CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors
Supports NVMe SSD as boot disks

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
All USB ports support ESD Protection

Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

Rear Panel I/O
2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC

UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer

Accessories
1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS
Microsoft® Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Manufacturer's Website:
Warranty:
2 Year Return to Base Warranty.
BACK PANEL I/O PORTS
PS/2 ports quantity 1
Line-in Y
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 1
Microphone in Y
HDMI ports quantity 1
DisplayPorts quantity 1
DisplayPort version 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
BIOS
BIOS memory size 128 Mbit
BIOS type UEFI AMI
EXPANSION SLOTS
Number of M.2 (M) slots 1
PCI Express x1 (Gen 4.x) slots 1
PCI Express x16 (Gen 4.x) slots 2
FEATURES
Motherboard chipset Intel B760
Motherboard form factor micro ATX
Audio output channels 7.1 channels
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Component for PC
Audio chip Realtek ALC897
INTERNAL I/O
USB 2.0 connectors 2
CPU fan connector Y
ATX Power connector (24-pin) Y
Front panel audio connector Y
TPM connector Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
Thunderbolt headers 1
RGB LED pin header Y
MEMORY
Maximum internal memory 128 GB
Non-ECC Y
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Unbuffered memory Y
Memory slots type DIMM
Number of memory slots 4
NETWORKING
Ethernet LAN Y
LAN controller Dragon RTL8125BG
Wi-Fi N
Ethernet interface type 2.5 Gigabit Ethernet
PACKAGING CONTENT
Cables included SATA
PROCESSOR
Processor manufacturer Intel
Maximum number of SMP processors 1
Compatible processor series Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor socket LGA 1700
STORAGE CONTROLLERS
RAID levels 0, 1, 5, 10
RAID support Y
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
WEIGHT & DIMENSIONS
Width 244 mm
Depth 244 mm
