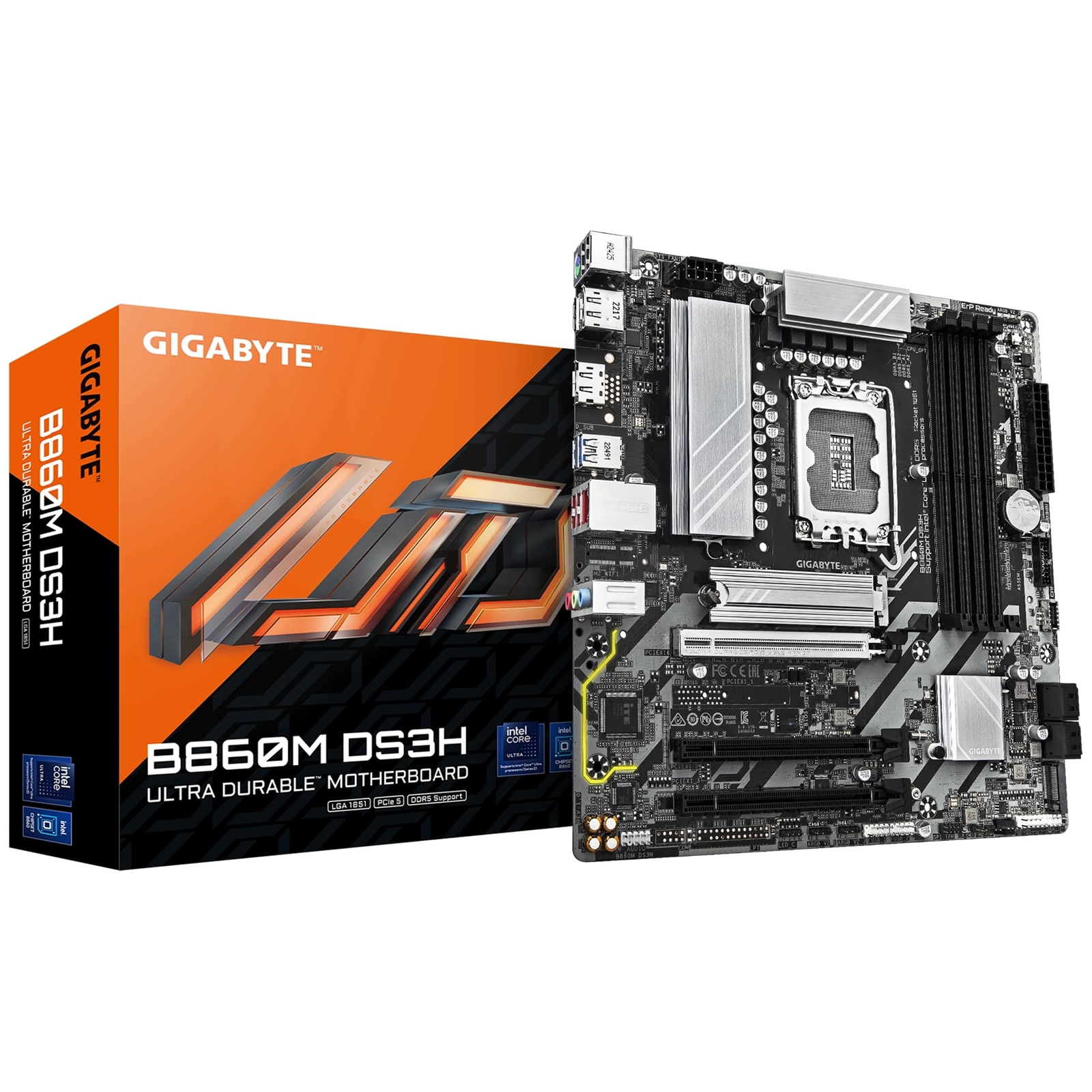

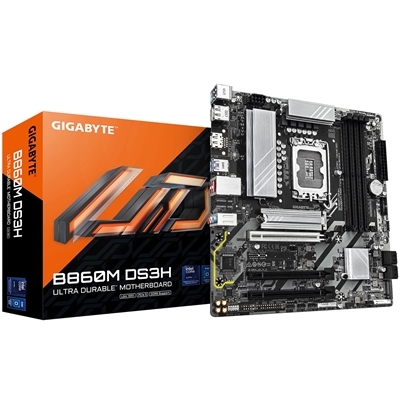

Gigabyte B860M DS3H Intel 1851 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, 1x USB-C Port, 2.5GbE LAN, 2x DisplayPorts / 1x HDMI Port

Key Specifications
Socket1851
CPU CompatibilityIntel Ultra
ChipsetIntel B860
Form FactorMicro ATX
Memory SlotsDDR5 - 4 Slots
M.2 CompatibilityPCIe 5 / PCIe 4
USB CYes
/productImages/80/MBGIG-B860MDS.jpg
/productImages/80/206225.JPG
/productImages/80/206226.JPG
/productImages/80/206227.JPG
Manufacturer : GIGABYTE
EAN : 4719331866709
Manufacturer Part Code : B860M DS3H
Weight : 1 kg
Login For Pricing

Key Specifications
Socket1851
CPU CompatibilityIntel Ultra
ChipsetIntel B860
Form FactorMicro ATX
Memory SlotsDDR5 - 4 Slots
M.2 CompatibilityPCIe 5 / PCIe 4
USB CYes
Manufacturer :
GIGABYTE

EAN :
4719331866709

Manufacturer Part Code :
B860M DS3H

Weight :
1 kg
Recommended Products
1295System Memory
See details
1286Processors
See details
1292Solid State Drives
See details

Key Features
Supports Intel Core Ultra processors (Series 2)
Hybrid 5+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive: Provides optimal and customized BIOS preset profile for users
EZ-Latch: PCIe x16 Slot with Quick Release Design
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 2 x M.2 slots, including 1 x PCIe 5.0 x4
M.2 Thermal Guard : To Ensure M.2 SSD Performance
Fast Networking : 2.5GbE LAN
Extended Connectivity : 2 x DisplayPort, HDMI

SPECIFICATION:

CPU
LGA1851 socket: Support for Intel Core Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel B860 Express Chipset

Memory
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.

I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
The Intel NPU driver is only supported on Windows 11.

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

BACK PANEL I/O PORTS
PS/2 ports quantity 1
Line-in Yes
USB 2.0 ports quantity 3
Ethernet LAN (RJ-45) ports 1
Headphone outputs 1
Microphone in Yes
VGA (D-Sub) ports quantity 0
DVI-D ports quantity 0
HDMI ports quantity 1
HDMI version 2.1
DisplayPorts quantity 2
DisplayPort version 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
BATTERY
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS memory size 256 Mbit
BIOS type UEFI AMI
ACPI version 5.0
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
EXPANSION SLOTS
Number of M.2 (M) slots 2
PCI Express x16 (Gen 4.x) slots 5
PCI Express x16 (Gen 5.x) slots 1
1st M.2 largest key size 2280
2nd M.2 largest key size 2280
1st M.2 highest PCI Express generation 5.0
2nd M.2 highest PCI Express generation 4.0
FEATURES
Motherboard chipset Intel B860
Motherboard form factor micro ATX
Product colour Dark brown
Audio output channels 7.1 channels
Cooling type Passive
PC health monitoring Fan, Temperature, Voltage, Water cooling
Windows operating systems supported Windows 10 x64, Windows 11 x64
Power source type ATX
Motherboard chipset family Intel
Component for PC
Audio chip Realtek ALC897
GRAPHICS
Maximum resolution 4096 x 2160 pixels
Parallel processing technology support Not supported
DirectX version 12.0
HDCP Yes
INTERNAL I/O
USB 2.0 connectors 2
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Number of chassis fan connectors 2
Front panel audio connector Yes
TPM connector Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Number of SATA III connectors 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Front panel connector Yes
RGB LED pin header Yes
Number of RGB LED pin headers 4
Number of CPU fan connectors 2
Number of water pump connectors 2
Number of EPS power connectors (8-pin) 1
LOGISTICS DATA
Country of origin China
Products per shipping (inner) case 1 pc(s)
MEMORY
Maximum internal memory 256 GB
Supported memory clock speeds 5600,6400,9066 MHz
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Memory slots type DIMM
Number of memory slots 4
Supported memory clock speed (max) 9066 MHz
Maximum internal memory per slot 64 GB
ECC ?ompatibility ECC & Non-ECC
NETWORKING
Ethernet LAN Yes
LAN controller Realtek RTL8125
Wi-Fi No
Ethernet interface type 2.5 Gigabit Ethernet
OTHER FEATURES
Weight 1 kg
PACKAGING CONTENT
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included Yes
Screws included Yes
PACKAGING DATA
Package weight 1.09 kg
Package depth 265 mm
Package height 54 mm
Package width 265 mm
PROCESSOR
Processor manufacturer Intel
Compatible processor series Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor socket LGA 1851 (Socket V1)
Supported processor sockets LGA 1851
STORAGE CONTROLLERS
RAID levels 0, 1, 5, 10
Number of HDDs supported 4
RAID support Yes
Number of storage drives supported 6
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Height 35 mm
Width 244 mm
Depth 244 mm
