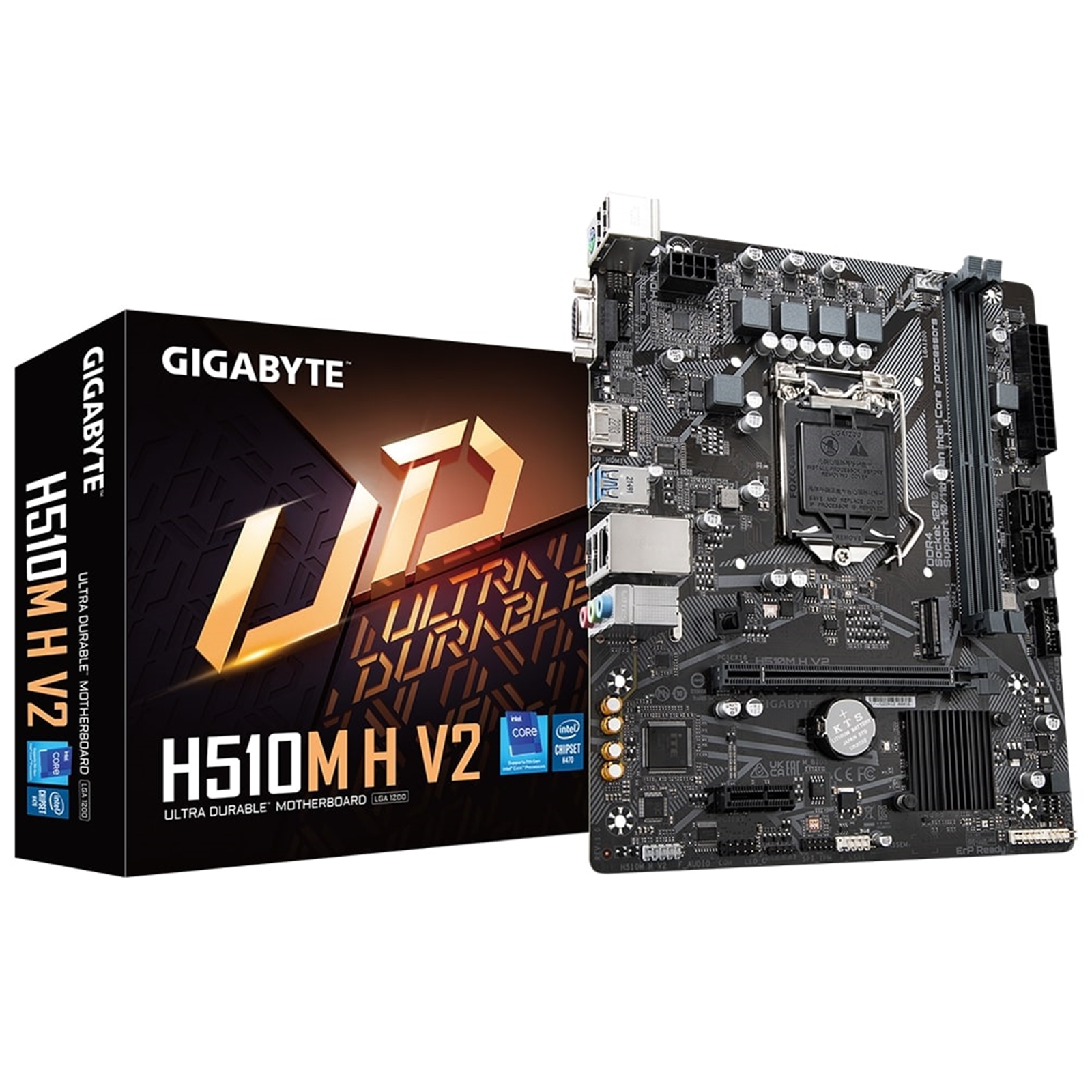

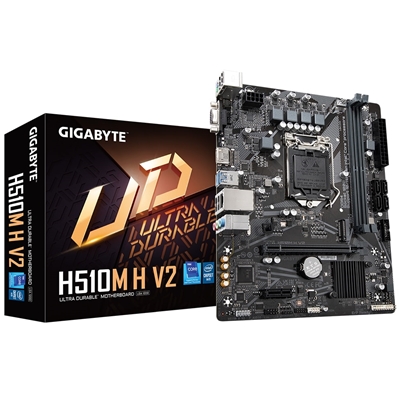

Gigabyte H510M H V2 Ultra Durable Intel 1200 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port

Key Specifications
Socket1200
CPU CompatibilityIntel 10th/11th Gen
ChipsetIntel H510
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe
USB CNo
/productImages/80/MBGIG-H510MH2.JPG
/productImages/80/183972.JPG
/productImages/80/183973.JPG
/productImages/80/183974.JPG
Manufacturer : GIGABYTE
EAN : 4719331854942
Manufacturer Part Code : H510M H V2
Weight : 0.9 kg
Login For Pricing

Key Specifications
Socket1200
CPU CompatibilityIntel 10th/11th Gen
ChipsetIntel H510
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe
USB CNo
Manufacturer :
GIGABYTE

EAN :
4719331854942

Manufacturer Part Code :
H510M H V2

Weight :
0.9 kg
Recommended Products
1295System Memory
See details
1286Processors
See details
1292Solid State Drives
See details

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

The Industry's Leading Surge Protection
GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.


Specifications

CPU
LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors

Chipset
Intel® H470 Express Chipset

Memory
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* The D-Sub port is only available with the 10th Generation processors.

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed contro

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

BACK PANEL I/O PORTS
PS/2 ports quantity 2
USB connector type USB Type-A
USB 2.0 ports quantity 4
Ethernet LAN (RJ-45) ports 1
Microphone in Yes
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
BATTERY
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS memory size 128 Mbit
BIOS type UEFI AMI
ACPI version 5.0
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
EXPANSION SLOTS
PCI Express x16 slots 1
PCI Express x1 slots 2
Number of M.2 (M) slots 1
FEATURES
Motherboard chipset Intel H510 Express
Motherboard form factor micro ATX
Product colour Brown
Audio output channels 7.1 channels
PC health monitoring Fan, Temperature, Voltage
Windows operating systems supported Windows 10 x64
Motherboard chipset family Intel
Component for PC
GRAPHICS
Maximum resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
DirectX version 12.0
HDCP Yes
Number of displays supported 2
INTERNAL I/O
USB 2.0 connectors 2
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Number of chassis fan connectors 2
Front panel audio connector Yes
TPM connector Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Serial port headers 1
Front panel connector Yes
12V power connector Yes
RGB LED pin header Yes
LOGISTICS DATA
Country of origin China
Products per shipping (inner) case 1 pc(s)
MEMORY
Maximum internal memory 64 GB
ECC Yes
Non-ECC Yes
Supported memory clock speeds 2133,2400,2666,2933,3000,3200 MHz
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Memory slots type DIMM
Number of memory slots 2
NETWORKING
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Gigabit Ethernet
OTHER FEATURES
Weight 385 g
PACKAGING CONTENT
Cables included SATA
Batteries included Yes
Drivers included Yes
PACKAGING DATA
Package weight 756 g
Package depth 235 mm
Package height 52 mm
Package width 265 mm
PROCESSOR
Processor manufacturer Intel
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor socket LGA 1200 (Socket H5)
Supported processor sockets LGA 1200 (Socket H5)
STORAGE CONTROLLERS
Number of storage drives supported 5
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 3.0, SATA III
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Height 35 mm
Width 226 mm
Depth 185 mm
