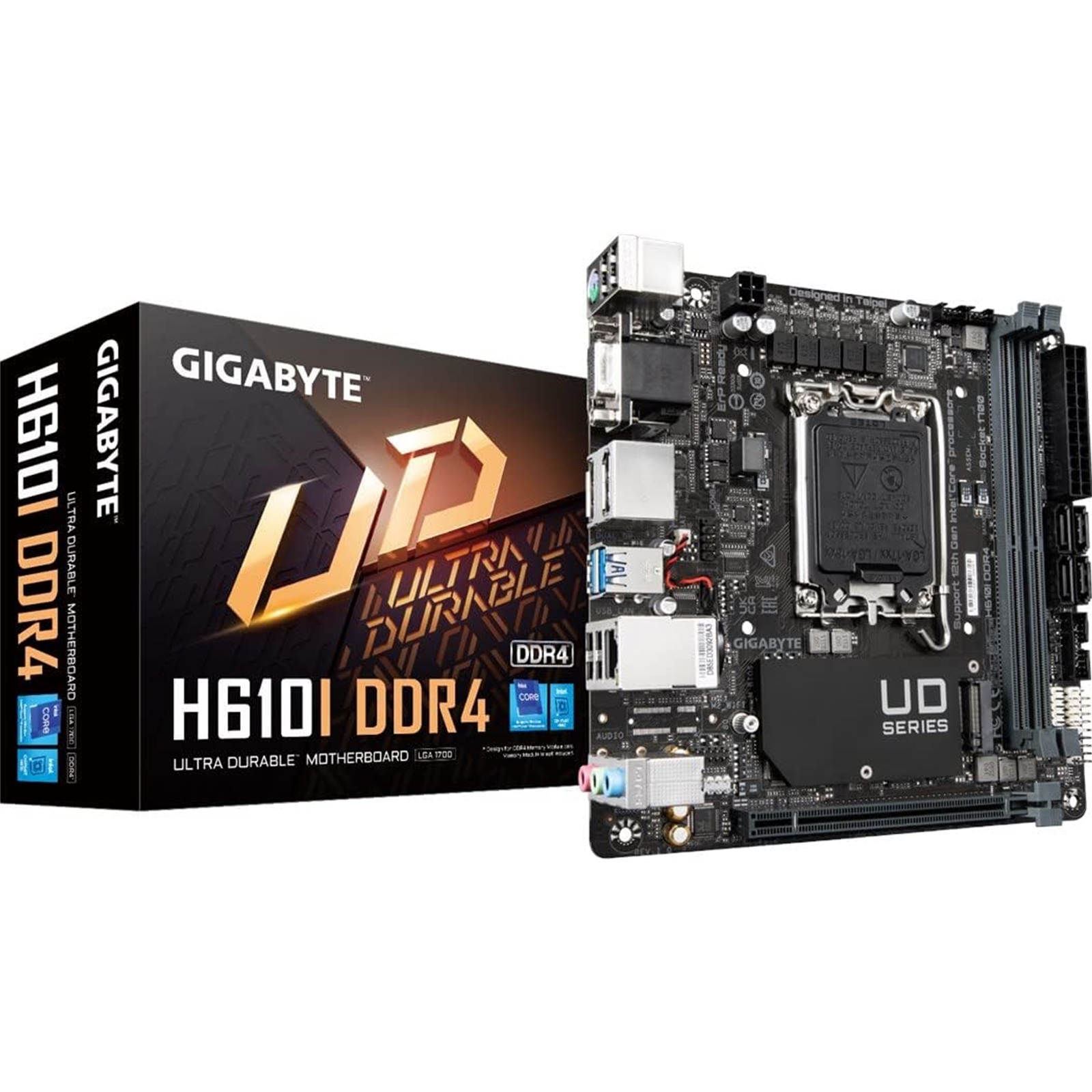

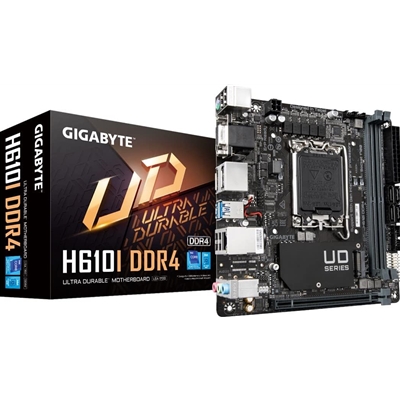

Gigabyte H610I DDR4 Ultra Durable Intel 1700 Socket Motherboard, Mini-ITX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

Key Specifications
Socket1700
CPU CompatibilityIntel 12th/13th/14th Gen
ChipsetIntel H610
Form FactorMini ITX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityPCIe / SATA
USB CNo
/productImages/80/MBGIG-H610ID4.JPG
/productImages/80/196650.JPG
/productImages/80/196651.JPG
/productImages/80/196652.JPG
/productImages/80/196653.JPG
Manufacturer : GIGABYTE
EAN : 4719331834562
Manufacturer Part Code : H610I DDR4
Weight : 0.6 kg
Login For Pricing

Key Specifications
Socket1700
CPU CompatibilityIntel 12th/13th/14th Gen
ChipsetIntel H610
Form FactorMini ITX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityPCIe / SATA
USB CNo
Manufacturer :
GIGABYTE

EAN :
4719331834562

Manufacturer Part Code :
H610I DDR4

Weight :
0.6 kg
Recommended Products
1295System Memory
See details
1286Processors
See details
1292Solid State Drives
See details

Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0 Design, Gen3 x4 M.2 , Intel GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6

Supports Intel® Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

4+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
4+1+1 Phases DrMOS.
Solid capacitors to improve transient response and minimize oscillation.
Solid Pin CPU Power Connector.

Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

Chipset
Intel H610 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Intel GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots
1 x PCI Express x16 slot, running at x16

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x serial port headers
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x D-Sub port
2 x DisplayPorts
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
@BIOS
EasyTune
Ambient LED
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

BACK PANEL I/O PORTS
PS/2 ports quantity 1
USB connector type USB Type-A
USB 2.0 ports quantity 4
Ethernet LAN (RJ-45) ports 1
Headphone outputs 3
Microphone in Yes
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
HDMI version 2.0
DisplayPorts quantity 2
DisplayPort version 1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
BATTERY
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS memory size 256 Mbit
BIOS type UEFI AMI
ACPI version 5.0
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
EXPANSION SLOTS
PCI Express x16 slots 1
Number of M.2 (M) slots 1
FEATURES
Motherboard chipset Intel H610 Express
Motherboard form factor mini ITX
Product colour Brown
Audio output channels 7.1 channels
PC health monitoring Fan, Temperature, Voltage
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Component for PC
Harmonized System (HS) code 84733020
GRAPHICS
Maximum resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
DirectX version 12.0
HDCP Yes
Number of displays supported 3
INTERNAL I/O
USB 2.0 connectors 2
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Chassis intrusion connector Yes
Number of chassis fan connectors 2
Front panel audio connector Yes
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Serial port headers 1
Total number of SATA connectors 4
Front panel connector Yes
12V power connector Yes
RGB LED pin header Yes
LOGISTICS DATA
Country of origin China
Products per shipping (inner) case 1 pc(s)
Harmonized System (HS) code 84733020
MEMORY
Maximum internal memory 64 GB
ECC Yes
Non-ECC Yes
Supported memory clock speeds 2133,2400,2666,2933,3000,3200 MHz
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Memory slots type DIMM
Number of memory slots 2
Supported memory clock speed (max) 3200 MHz
NETWORKING
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Gigabit Ethernet
PACKAGING CONTENT
Bundled software Norton Internet Security (OEM version), LAN bandwidth management software
Cables included SATA
Batteries included Yes
PACKAGING DATA
Package weight 711 g
Package depth 180 mm
Package height 65 mm
Package width 222 mm
PROCESSOR
Processor manufacturer Intel
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor socket LGA 1700
Supported processor sockets LGA 1700
Maximum internal memory supported by processor 64 GB
STORAGE CONTROLLERS
Number of HDDs supported 4
Number of storage drives supported 5
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Height 35 mm
Width 170 mm
Depth 170 mm
