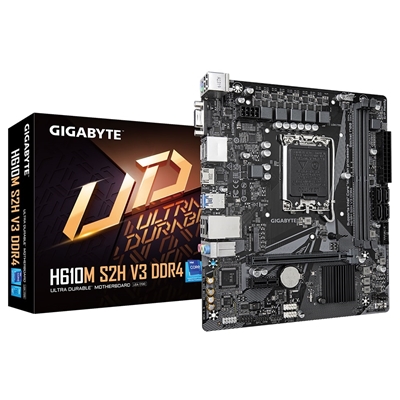

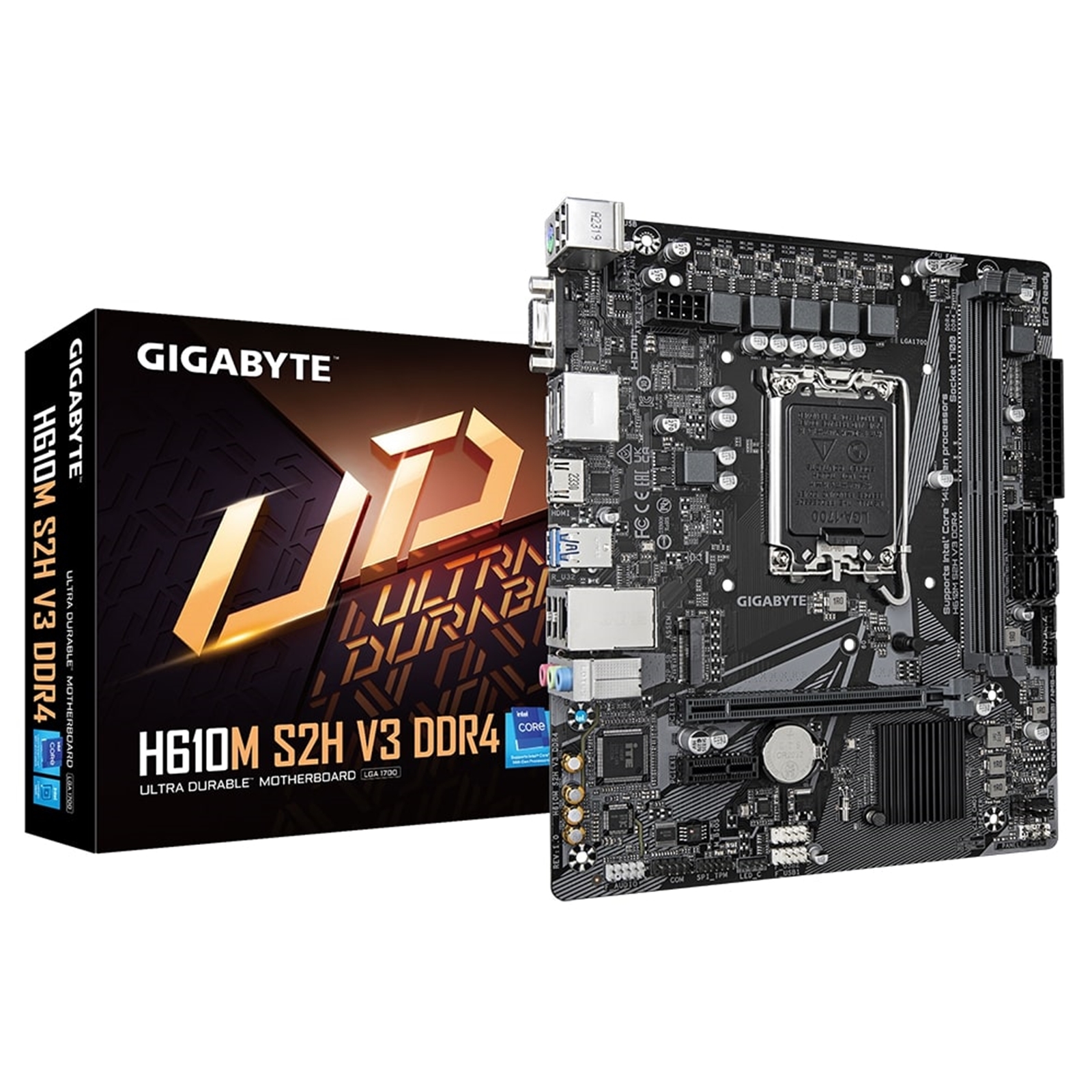

Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

Key Specifications
Socket1700
CPU CompatibilityIntel 12th/13th/14th Gen
ChipsetIntel H610
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe
USB CNo
/productImages/80/MBGIG-H610MSV3D4.JPG
/productImages/80/197106.JPG
/productImages/80/197107.JPG
/productImages/80/197108.JPG
Manufacturer : GIGABYTE
EAN : 4719331859732
Manufacturer Part Code : H610M S2H V3 DDR4
Weight : 0.8 kg
Login For Pricing

Key Specifications
Socket1700
CPU CompatibilityIntel 12th/13th/14th Gen
ChipsetIntel H610
Form FactorMicro ATX
Memory SlotsDDR4 - 2 Slots
M.2 CompatibilityNVMe
USB CNo
Manufacturer :
GIGABYTE

EAN :
4719331859732

Manufacturer Part Code :
H610M S2H V3 DDR4

Weight :
0.8 kg
Recommended Products
1295System Memory
See details
1286Processors
See details
1292Solid State Drives
See details

H610M S2H V3 DDR4 (rev. 1.0)

Key Features
Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
2 x DisplayPort / HDMI / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

4+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
4+1+1 Phases Low RDS(on) MOSFETs
Solid capacitors to improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.

PCIe 4.0 Design
1 x PCIe 4.0 Slot
PCIe 4.0 Ready PCB

Single 32GB Support
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors
3 PWM/DC Fan Headers
4 Internal Temperature Sensors

High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control
Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode
Slope/Stair dual mode for different user scenario

Fan Stop
Fan can stop completely below users' specified temperature point

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Chipset
Intel H610 Express Chipset

Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash

Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.3cm x 19.3cm
Manufacturer's Website:
Warranty:

Gigabyte 3-Year Return-To-Base Warranty

Warranty Length: 3 years

Warranty Type:Return-To-Base

Warranty Coverage: Gigabyte's 3-year warranty includes a 30-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 30 days of purchase, it can be returned to Target under the 30-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 30 days the product will be repaired or replaced with a graded unit. Account credit will be unavailable outside of the 30-day DOA agreement. The end user will need to return it to the reseller they purchased it from originally. If the unit is found faulty within the first 30 days of purchase, it can be returned to the reseller to claim under DOA with Target - a proof of end-user purchase WILL be required.

Warranty Instructions: RESELLERS - please raise a Target RMA.

END USERS - in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.

Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty

Warranty Contact: Gigabyte Returns

BACK PANEL I/O PORTS
PS/2 ports quantity 2
USB connector type USB Type-A
USB 2.0 ports quantity 4
Ethernet LAN (RJ-45) ports 1
Headphone outputs 3
Microphone in Yes
VGA (D-Sub) ports quantity 1
DVI-D ports quantity 1
HDMI ports quantity 1
DisplayPorts quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
BATTERY
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS memory size 128 Mbit
BIOS type UEFI AMI
ACPI version 5.0
Clear CMOS button Yes
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
EXPANSION SLOTS
PCI Express x16 slots 1
PCI Express x1 slots 1
Number of M.2 (M) slots 1
FEATURES
Motherboard chipset Intel H610 Express
Motherboard form factor micro ATX
Product colour Black
Audio output channels 7.1 channels
Cooling type Active
PC health monitoring Fan, Temperature, Voltage, Water cooling
Windows operating systems supported Windows 10 x64, Windows 11 x64
Power source type ATX
Motherboard chipset family Intel
Component for PC
Audio chip Realtek ALC897
GRAPHICS
Maximum resolution 4096 x 2304 pixels
Parallel processing technology support Not supported
HDCP Yes
INTERNAL I/O
USB 2.0 connectors 2
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
TPM connector Yes
EPS power connector (8-pin) Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4
Serial port headers 1
Front panel connector Yes
12V power connector Yes
RGB LED pin header Yes
LOGISTICS DATA
Country of origin China
Products per shipping (inner) case 1 pc(s)
MEMORY
Maximum internal memory 64 GB
ECC Yes
Non-ECC Yes
Supported memory clock speeds 3200, 3000, 2933, 2666, 2400, 2133 MHz
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Unbuffered memory Yes
Memory slots type DIMM
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Number of memory slots 2
Supported memory clock speed (max) 3200 MHz
NETWORKING
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Gigabit Ethernet
PACKAGING CONTENT
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Cables included SATA
Batteries included Yes
PACKAGING DATA
Package weight 703 g
Package depth 235 mm
Package height 52 mm
Package width 265 mm
PROCESSOR
Processor manufacturer Intel
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket LGA 1700
Supported processor sockets LGA 1700
Maximum internal memory supported by processor 64 GB
STORAGE CONTROLLERS
Number of HDDs supported 1
Number of storage drives supported 5
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
TECHNICAL DETAILS
Warranty period 3 year(s)
WEIGHT & DIMENSIONS
Height 35 mm
Width 230 mm
Depth 215 mm
