Target Components

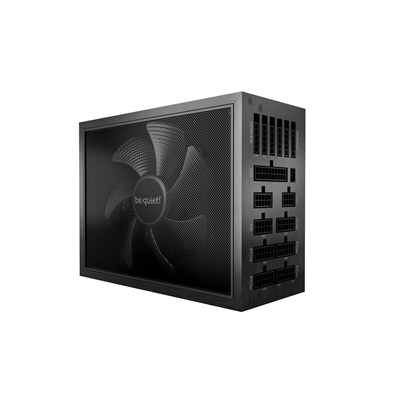

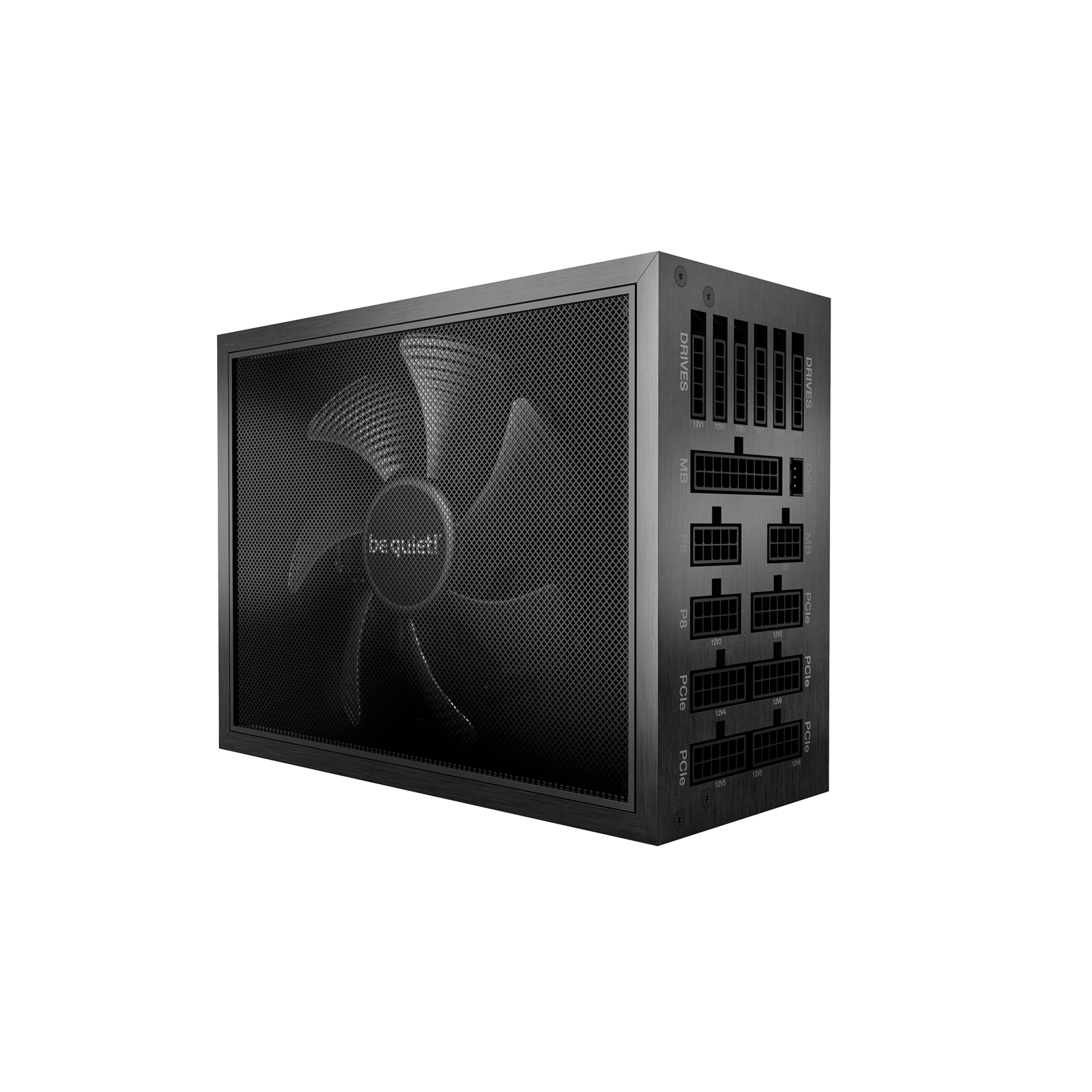

be quiet! Dark Power Pro 12 1200W PSU, 80 PLUS Titanium, Fully Digital Control, Frameless Silent Wings Fan for Inaudible Operation, 10 Year Warranty

Key Specifications
Wattage1200W
Size/VersionATX
ModularFully
SATA Connections16
CertificationTitanium
/productImages/80/PSBEQ-BN311.JPG
/productImages/80/182534.JPG
/productImages/80/182535.JPG
/productImages/80/182536.JPG
/productImages/80/182537.JPG
/productImages/80/182538.JPG
/productImages/80/182539.JPG
Manufacturer : BEQUIET
EAN : 4260052187425
Manufacturer Part Code : BN311
Weight : 7 kg
Login For Pricing

Key Specifications
Wattage1200W
Size/VersionATX
ModularFully
SATA Connections16
CertificationTitanium
Manufacturer :
BEQUIET

EAN :
4260052187425

Manufacturer Part Code :
BN311

Weight :
7 kg
Recommended Products
1284Power Supplies
See details
1333Power Cables
See details
1349Mains Power & Extensions
See details

The be quiet! Dark Power Pro 12 1200W offers 80 PLUS® Titanium efficiency and world class performance due to fully digital control and frameless fan concept.

80 PLUS Titanium efficiency (up to 94.7%)
Fully digital control (PFC, LLC, SR/12V) and full bridge topology
Patented frameless Silent Wings fan for virtually inaudible operation at ordinary load
Full mesh PSU front with redesigned funnel-shaped air inlet
Overclocking key switches between six 12V rails and one massive 12V rail
Japanese 105°C capacitors ensure highest stability and reliability
Aluminum case and modular individually sleeved cables for magnificent appearance
10-year manufacturer's warranty

80 PLUS® TITANIUM - The highest efficiency certificate available
Dark Power Pro 12 1200W is certified with 80 PLUS Titanium and an energy efficiency rating of up to 94.7%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

WORLD CLASS POWER REGULATION - Fully digital control
The fully digital control (PFC, LLC, SR/12V) results in higher efficiency, better regulation and lower ripple noise. This guarantees an incomparably stable operation. Due to the digital concept the Dark Power Pro 12 can reach a great efficiency over the complete power range, even at low load.

FRAMELESS SILENT WINGS FAN - Patented fan technology for virtually inaudible operation
The be quiet! Silent Wings fan mounted on a tripod enables maximum airflow and a virtually inaudible operation at ordinary loads. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor for less vibration, super-long life and minimal power consumption.

INNOVATIVE COOLING CONCEPT - For a longer lifespan
The split fan inlet of the Dark Power Pro 12 1200W is a specially-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.


Specifications

Model
Dark Power Pro 12 1200W

Continuous power (W)
1200

Peak power (W)
1300

Form factor
Version 2.51

Form factor EPS 12V
Version 2.92

Topology
Full bridge + LLC + SR + DC/DC

Digitally controlled
Yes

Voltage (Vac)
100 - 240

Frequency (Hz)
50 - 60

Input current (A)
16 / 8

Power factor at 100% load
>0.99

Modern standby
Yes

Power consumption in standby (W)
<0.06

Average life time (h / 25°C)
300,000

Operating temperature up to (°C)
50

Dimensions without cable (L x W x H) (mm)
200 x 150 x 86

Modular cables
Yes

Sleeved cables
All

Maximum cable length (cm)
120

Cable length to motherboard (cm)
60

No. of cables
17

ATX-Motherboard (20+4-pin)
1

P4+4 (CPU)
1

P8 (CPU)
1

PCI-e 6+2-pin (GPU)
10

SATA
16

PATA
8

FDD (Floppy)
2
Manufacturer's Website:
Warranty:
10 Year Return To Base

There are currently no data sheets available for this product.
