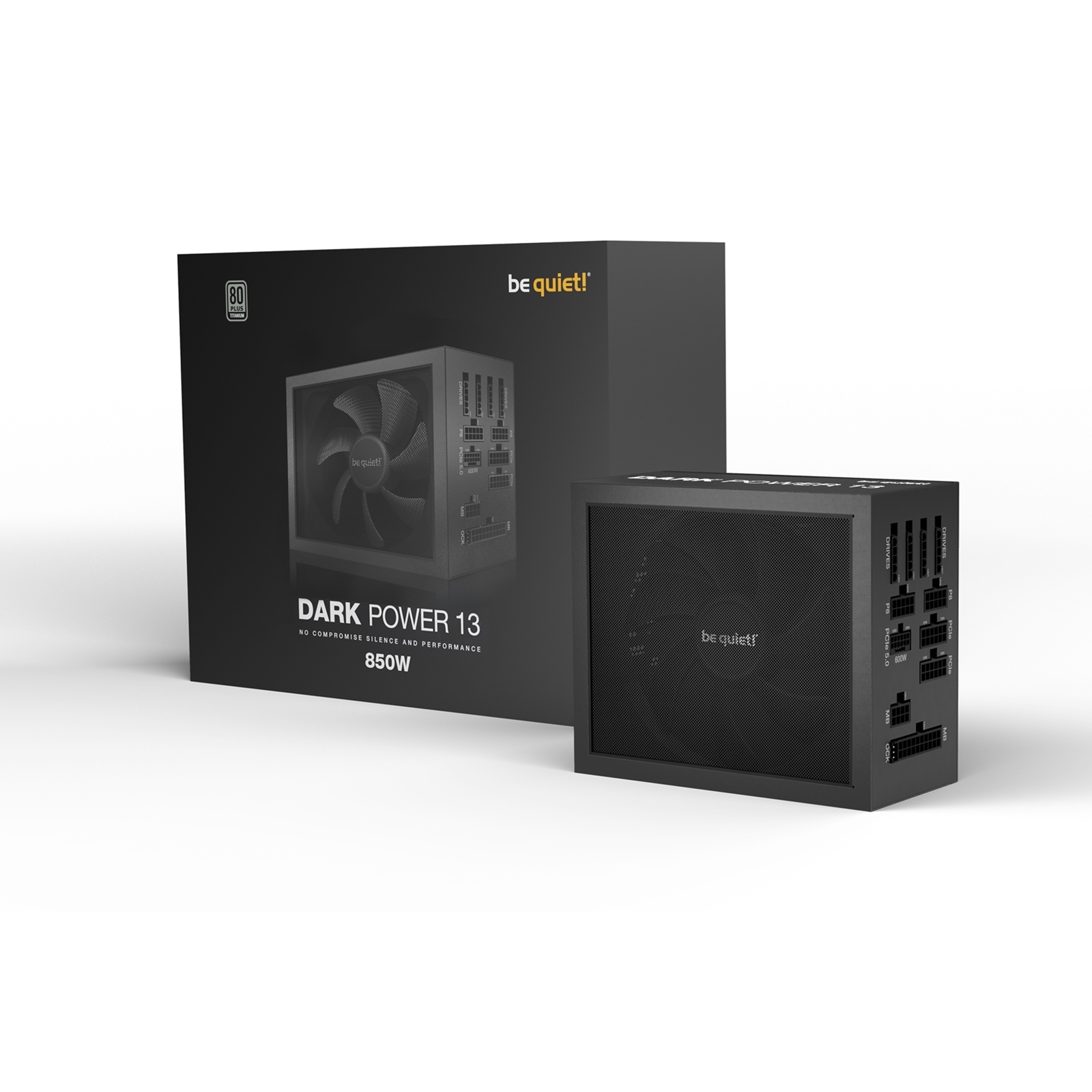

DARK POWER 13 - 850W

No Compromise Silence and Performance

The be quiet! Dark Power 13 850W offers 80 PLUS Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.

- 80 PLUS Titanium efficiency (up to 95.4%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
- Improved frameless Silent Wings fan for virtually inaudible operation
- Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
- Overclocking key switches between four 12V rails and one massive 12V rail
- Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency
- Modular cable management for maximum convenience
- 10-year manufacturer's warranty


Specifications

Efficiency

80 PLUS certification:
Titanium

Efficiency (%) at 230V, 2% load:
73.6

Efficiency (%) at 230V, 10% load:
92.0

Efficiency (%) at 230V, 20% load:
94.7

Efficiency (%) at 230V, 50% load:
95.4

Efficiency (%) at 230V, 100% load:
93.5

Output

Multi-rail operation (12V rails):
4

12V single rail operation:
Yes

Overclocking key:
Yes

+3.3V (A):
24

+5V (A):
24

+12V1 (A):
30

+12V2 (A):
30

+12V3 (A):
35

+12V4 (A):
35

-12V (A):
0.5

+5Vsb (A):
3

Max. combined power 12V (W):
840

Max. combined power 12VHPWR (W):
600

Max. combined power 3.3V + 5V (W):
120

Hold-up time at 100% load (ms):
22.6

Power good signal (ms):
100 - 150

Cables and Connectors

Modular cables:
Yes

Sleeved cables:
All

Maximum cable length (cm):
105

Cable length to motherboard (cm):
60

No. of cables:
12

ATX-Motherboard (20+4-pin):
1

P4+4 (CPU):
1

P8 (CPU):
1

12VHPWR cables:
1

PCI-e 6+2-pin (GPU):
4

SATA:
12

PATA:
3

Protection

OTP (over temperature protection):
Yes

OCP (over current protection):
Yes

OPP (over power protection):
Yes

SCP (short circuit protection):
Yes

OVP (over Voltage protection):
Yes

UVP (under Voltage protection):
Yes

SIP (Surge & Inrush Protection):
Yes

Environmental Directives

Energy Star:
8.0

ErP:
Yes

WEEE:
Yes

RoHS:
Yes

Triman:
Yes

Scope of Delivery

Thumb screws:
Yes

Screws:
Yes

Cable ties:
Yes

Velcro cable ties:
Yes

Casing

Dimensions without cable (L x W x H), (mm):
175 x 150 x 86

Weight (kg):
1.97

Color:
Black

Service

Warranty (Years):
10
