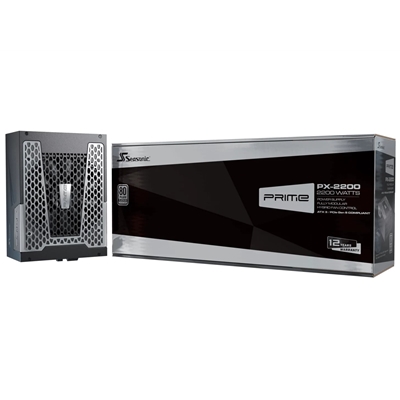

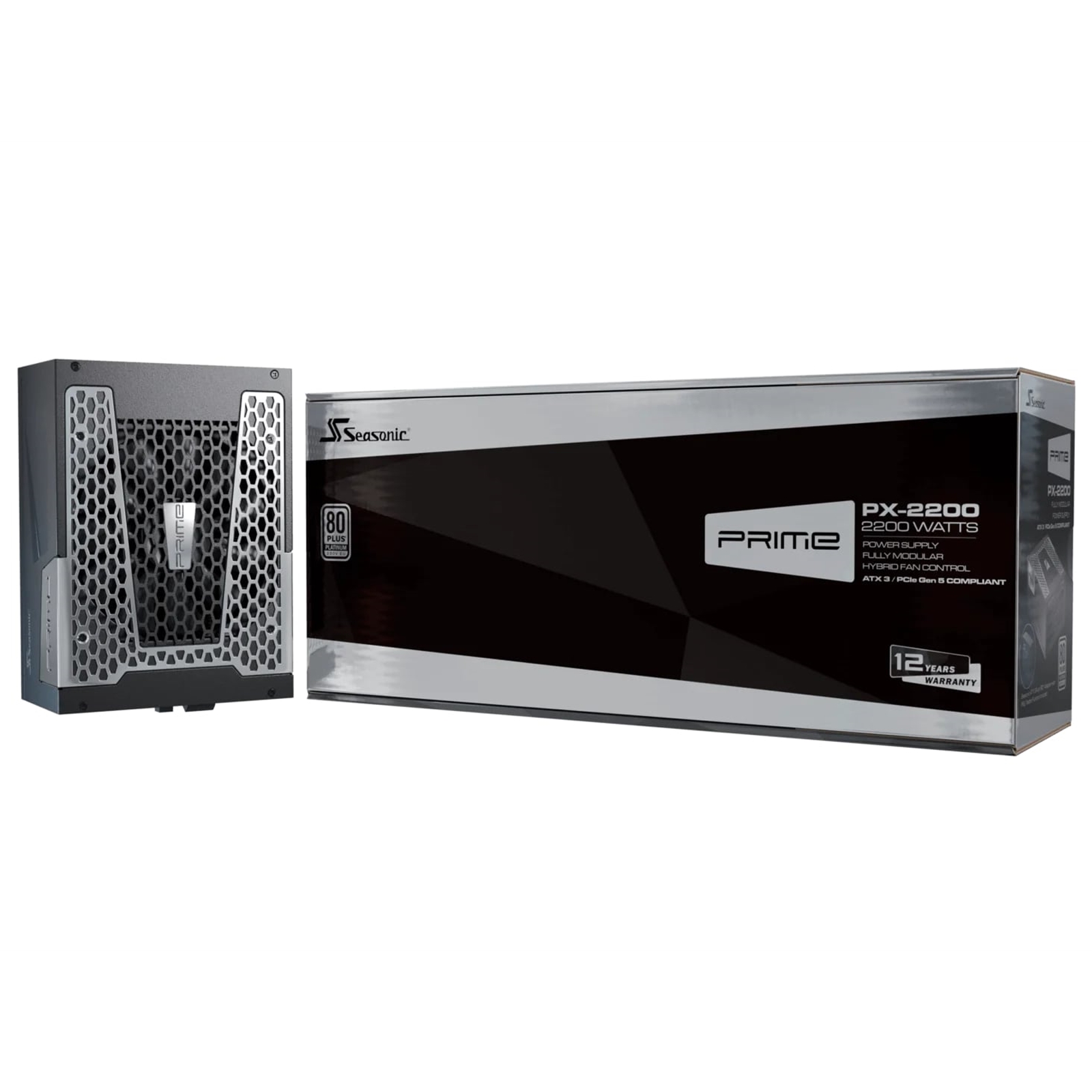

The Seasonic PRIME PX 2200W ATX 3.1 is a flagship fully modular power supply designed for high-end gaming systems, professional workstations and demanding high-power applications. Its 80 PLUS Platinum certification combines excellent efficiency with ATX 3.1 and PCIe 5.1 compatibility. Native 12V-2x6 connectivity, Micro Tolerance Load Regulation, 105°C Japanese electrolytic capacitors and Digital Hybrid Fan Control with a 135mm Fluid Dynamic Bearing fan provide premium electrical performance and long-term reliability.
Key Features
80 PLUS Platinum (92% efficiency at 50% system load).
ATX 3.1 and PCIe 5.1 support.
Native 12V-2x6 connectivity for modern graphics cards.
Fully Modular cable design.
135mm Fluid Dynamic Bearing (FDB) fan.
Digital Hybrid Fan Control.
Micro Tolerance Load Regulation.
105°C-rated Japanese electrolytic capacitors.
Comprehensive OCP, OPP, OTP, OVP, SCP and UVP protection.
12-year manufacturer's warranty.
Full Specification
Model:
PRIME PX 2200W ATX 3.1
Manufacturer Part Number:
PRIME-PX-2200-ATX30
Output Power:
2200W continuous power
Efficiency:
80 PLUS Platinum (92% efficiency at 50% system load)
Voltage Rails:
Single +12V rail
+12V Output:
183.3A / 2200W
ATX Form Factor:
ATX/EPS
ATX Standard:
ATX 3.1
PCIe Standard:
PCIe 5.1
Cabling:
Fully Modular
Connectors:
1 x 20+4-pin ATX
3 x 4+4-pin CPU/EPS
2 x native 12V-2x6
2 x 2x8-pin to 12V-2x6 GPU cables
4 x 6+2-pin PCIe
16 x SATA
2 x SATA 3.3V
3 x 4-pin Molex
Fan:
135mm Fluid Dynamic Bearing (FDB) fan
Fan Speed Control:
Digital Hybrid Fan Control
Power Input:
200-240V AC, 15A, 50/60Hz
Operating Temperature:
0-50°C
Power Output:
DC outputs: +12V, +5V, +3.3V, -12V and +5VSB
Cable Set:
Individual black cables with braided pattern
Protection:
OCP - Over Current Protection
OPP - Over Power Protection
OTP - Over Temperature Protection
OVP - Over Voltage Protection
SCP - Short Circuit Protection
UVP - Under Voltage Protection
Special Features:
Micro Tolerance Load Regulation, 105°C Japanese electrolytic capacitors, high-power 200-240V platform and extensive 12V-2x6 connectivity
Warranty:
12-year manufacturer's warranty
Dimensions without cable (L x W x H), (mm)
210 x 150 x 86
Warranty:
Seasonic Limited Warranty
Warranty Type: Limited
Warranty Coverage: Seasonic warranty covers manufacturing defects and faults.
Warranty Instructions:
Within 3 Years: If a power supply becomes faulty within 3 years of the original purchase date, the product can be returned to Target for credit or replacement (subject to stock availability) via our
Online RMA System.
Seasonic Direct (After 3 Years): After the initial 3 year RTB period, please contact Seasonic directly for support within the remaining warranty period.
Warranty Information: https://seasonic.com/support/
|
CERTIFICATES
|
| Compliance certificates |
CCC, CE, REACH, RoHS, WEEE |
DESIGN
|
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| On/off switch |
Yes |
| Cooling type |
Active |
| Fan diameter |
13.5 cm |
ENERGY MANAGEMENT
|
| Input current |
15 A |
| Combined power (+3.3V) |
125 W |
| Combined power (+12V) |
2200 W |
| Combined power (+5V) |
125 W |
| Combined power (-12V) |
6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
25 A |
| Max output current (+12V) |
183.3 A |
| Max output current (+5V) |
25 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5Vsb) |
3 A |
| AC input voltage |
115 - 240 V |
| Total power |
2200 W |
OPERATIONAL CONDITIONS
|
| Operating temperature (T-T) |
0 - 50 °C |
PACKAGING CONTENT
|
| Cables included |
AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included |
Yes |
PACKAGING DATA
|
| Cables included |
AC, CPU, PCIe, Peripheral (Molex), SATA |
| Package type |
Box |
PERFORMANCE
|
| Mean time between failures (MTBF) |
150000 h |
| Purpose |
PC |
| Bearing technology |
FDB |
| ATX version |
3.0 |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply unit (PSU) form factor |
ATX |
PORTS & INTERFACES
|
| Motherboard power connector |
24-pin ATX |
| Number of SATA power connectors |
10 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| EPS power connector (8-pin) |
Yes |
| Cabling type |
Fully-Modular |
| Motherboard power cable length |
61 cm |
| SATA power cable length |
450,470,550,570,760,860,950 mm |
| CPU power cable length |
70 cm |
| Peripheral (Molex) power cable length |
470,690 mm |
TECHNICAL DETAILS
|
| Compliance certificates |
CCC, CE, REACH, RoHS, WEEE |
WEIGHT & DIMENSIONS
|
| Height |
86 mm |
| Width |
150 mm |
| Depth |
210 mm |
