Description:

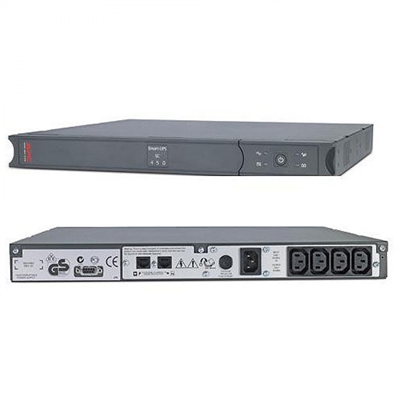

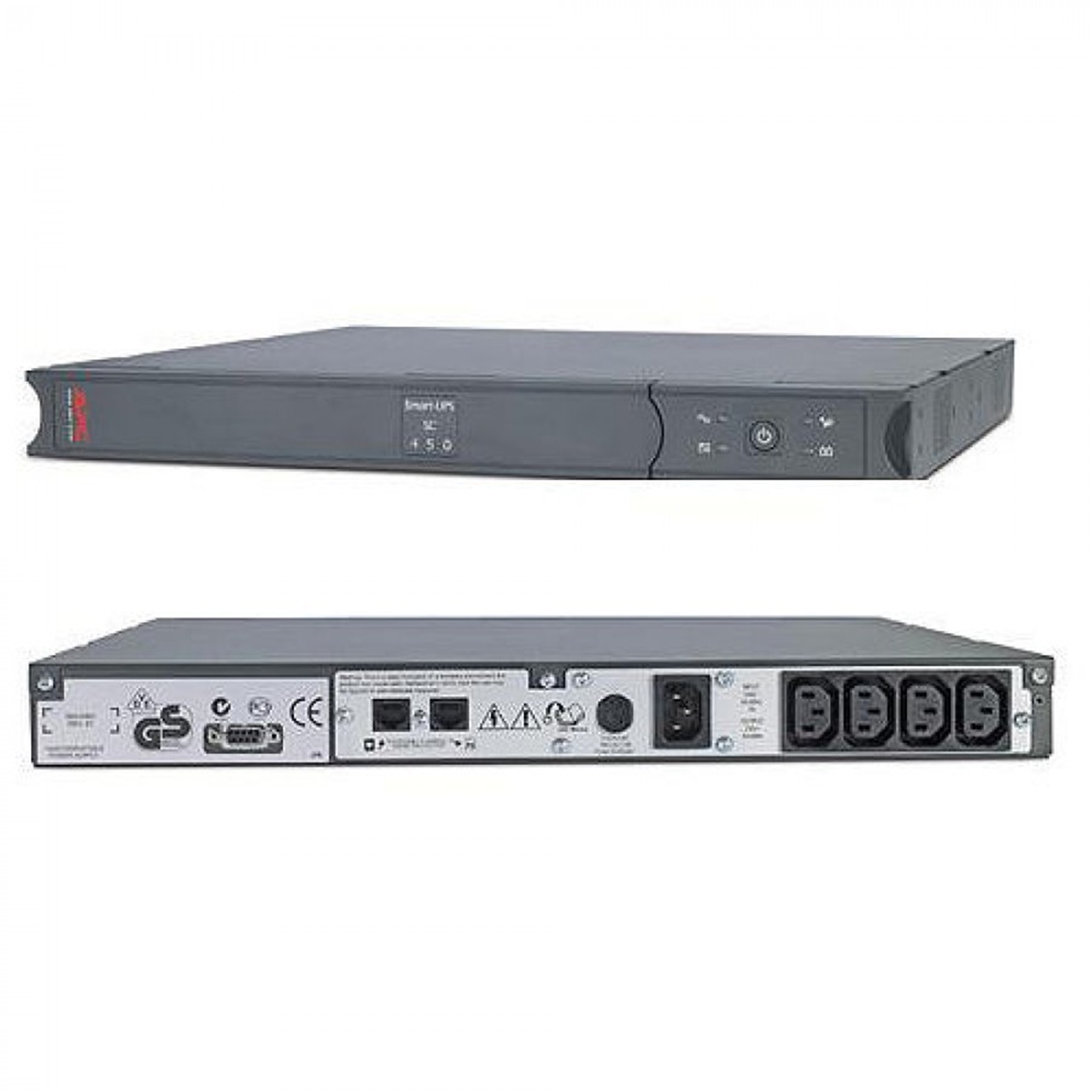

The APC Smart-UPS SC 450VA 230V 1U Rackmount/Tower UPS Battery Backup (SC450RMI1U) is an entry-level uninterruptible power supply designed to provide reliable battery backup and surge protection for critical electronics. Ideal for small and medium businesses, it offers network grade protection, hot-swappable batteries, and built-in data line protection to ensure continuous operation during power outages. With pure sine wave output, it supports sensitive electronics and active PFC (power factor corrected) servers.

Full Specification:

Model:
APC Smart-UPS SC 450VA 230V 1U Rackmount/Tower UPS Battery Backup (SC450RMI1U)

Battery Type:
Lead-Acid, AGM

Input Voltage:
230V

Output Voltage:
230V

Rated Power:
450VA / 280W

Form Factor:
1U Rackmount / Tower

Output Type:
Pure sine wave

Outlets:
4x IEC 320 C13 outlets, 2x IEC jumpers

Dimensions:
383mm (depth) x 44mm (height) x 432mm (width)

Weight:
10.18kg

Run Time:
5 minutes 54 seconds for a load of 28-280W

Warranty:
2 years

Certifications:
C-Tick, CE, EAC, GOST, TISI, VDE

Compatibility:
Networking equipment, POS devices, entry-level applications

Environmental:
Made with recycled cardboard, compatible with Interface connections, PDU, Replacement battery, and compatible software

Manufacturer's Website:

www.apc.com

Warranty:

2 Years Repair or Replace Warranty

BATTERY
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	5 h
Typical backup time at half load	19.4 min
Typical backup time at full load	5.9 min
Hot-swap battery	Yes
Automatic battery test	Yes
Battery capacity	108 VAh
Battery life (max)	5 year(s)
CERTIFICATION
Certification	C-tick, CE, GOST, VDE, PEP, EOLI
Compliance certificates	RoHS
DESIGN
Certification	C-tick, CE, GOST, VDE, PEP, EOLI
Form factor	Rackmount/Tower
LED indicators	Battery replacement
Product colour	Grey
Rack capacity	1U
FEATURES
Audible alarm(s)	Yes
Output power capacity	0.45 kVA
Surge energy rating	320 J
Noise level	38 dB
Input frequency	50/60 Hz
Output power	280 W
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Network
Input operation voltage (max)	302 V
Input operation voltage (min)	151 V
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Auto-restart	Yes
UPS topology	Line-Interactive
Hold time (min)	4 ms
Hold time (max)	8 ms
Audible alarm modes	Low battery alarm, Overload alarm
LOGISTICS DATA
Products per pallet	24 pc(s)
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	484.92
OPERATIONAL CONDITIONS
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 15000 m
OTHER FEATURES
Nominal output voltage	230 V
PACKAGING CONTENT
Cables included	RS-232
Manual	Yes
Rack mount kit	Yes
PACKAGING DATA
Package weight	11.7 kg
Cables included	RS-232
Package depth	589 mm
Package height	164 mm
Package width	476 mm
Manual	Yes
Software CD	Yes
Rack mount kit	Yes
PORTS & INTERFACES
Serial interface type	RS-232
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	0
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
Power plug	C14 coupler
AC outlet types	C13 coupler
Serial interface	Yes
SUSTAINABILITY
Sustainability certificates	RoHS
TECHNICAL DETAILS
Harmonized System (HS) code	85078000
Sustainability certificates	RoHS
Compliance certificates	RoHS
WEIGHT & DIMENSIONS
Weight	10.2 kg
Package weight	11.7 kg
Height	44 mm
Width	432 mm
Depth	383 mm
Package depth	589 mm
Package height	164 mm
Package width	476 mm
