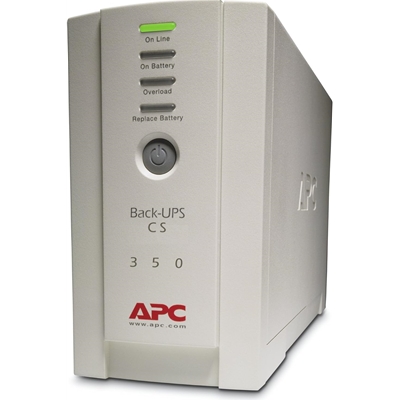

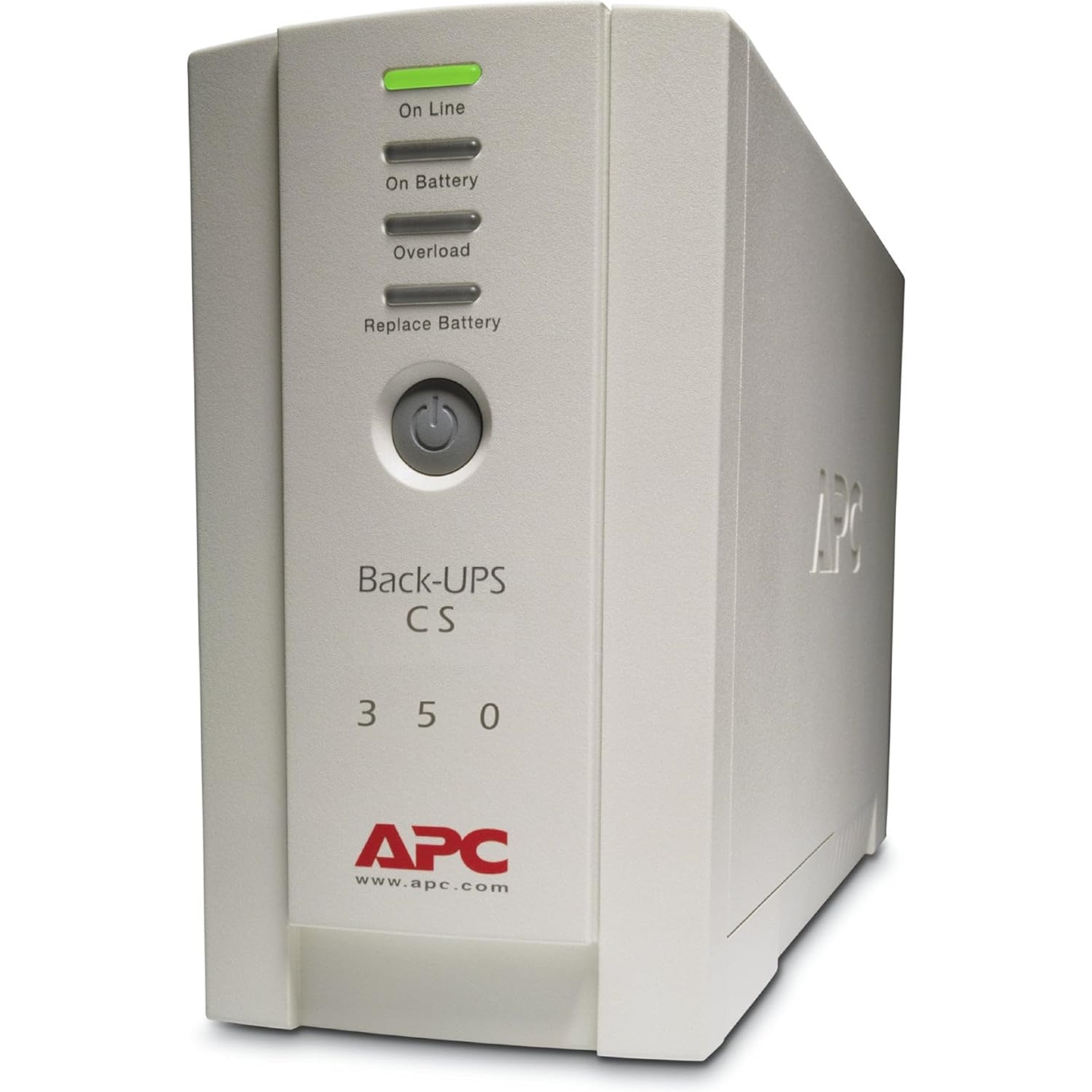

The APC BK350EI Back-UPS 350VA is a compact and efficient uninterruptible power supply (UPS) designed to provide essential power protection for your critical electronics. Ideal for home or small office use, this UPS ensures that your devices remain operational during power outages and protects them from damaging surges and voltage fluctuations. With its user-friendly design and reliable performance, the BK350EI is perfect for safeguarding your computers, networking equipment, and other sensitive electronics.

Equipped with multiple output connections, the BK350EI offers versatile options for connecting various devices. The LED indicators provide clear information about battery status and power conditions, making it easy to monitor your power backup system.

Key Specifications:

Model:
APC BK350EI

Capacity:
350VA / 210W

Output Voltage:
230V

Input Voltage:
220-240V

Form Factor:
Tower

Output Connections:
4 x UK sockets (all with battery backup and surge protection)

Automatic Voltage Regulation (AVR):
Yes, maintains stable voltage levels

Battery Type:
Sealed lead-acid maintenance-free

Typical Recharge Time:
8 hours to 90% capacity

Run Time (Half Load):
Approximately 30 minutes

Run Time (Full Load):
Approximately 10 minutes

LED Indicators:
Provide information on battery status and power conditions

Dimensions:
25.7 x 12.2 x 22.1 cm (10.12 x 4.80 x 8.70 inches)

Weight:
5.1 kg (11.2 lbs)

Warranty:
2 years repair or replace

Benefits:

Reliable Power Backup: Keeps your devices running during power outages, preventing data loss and downtime.
Surge Protection: Shields connected equipment from harmful power surges and spikes.
User-Friendly Design: The compact tower design fits easily in any space, while the LED indicators make monitoring straightforward.
Versatile Connections: Multiple outlets allow for connecting various devices, ensuring comprehensive protection for your equipment.
Cost-Effective Solution: An economical choice for individuals and small businesses looking for dependable power backup.
The APC BK350EI Back-UPS is a practical and efficient solution for ensuring the continuity of operations and protecting your valuable electronics from unexpected power issues.

Manufacturer's Website:

www.apc.com

Warranty:

2 Years Repair or Replace Warranty

BATTERY
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	6 h
Typical backup time at half load	22.1 min
Typical backup time at full load	8.6 min
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	6 h
Battery voltage	12 V
Typical backup time at half load	22.1 min
Typical backup time at full load	8.6 min
Replacement battery cartridge	RBC2
Battery capacity	7 Ah
Automatic battery test	Yes
Battery capacity	116 VAh
Battery life (max)	6 year(s)
Battery voltage	12 V
Battery capacity	7 Ah
Automatic battery test	Y
Battery replacement alarms	LED
Battery capacity	116 VAh
Battery life (max)	6 year(s)
CERTIFICATES
Certification	C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Energy Star certified	Y
RoHS compliance	Y
CERTIFICATION
Certification	C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Compliance certificates	RoHS
COLOUR
Colour of product	Beige
DESIGN
Certification	C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Form factor	Tower
Cable length	1.83 m
LED indicators	Battery replacement
Product colour	Beige
Certification	C-tick, CE, EN 50091-1, EN 50091-2,GOST, VDE, PEP, EOLI
Form factor	Tower
Energy Star certified	Y
Cable length	1.83 m
LED indicators	Battery replacement
Colour of product	Beige
RoHS compliance	Y
ENERGY MANAGEMENT
Power supply input frequency	50/60 Hz
Output power capacity (VA)	0.35 kVA
Surge energy rating	310 J
Input frequency	50/60 Hz
Maximum current	7 A
Efficiency	98.6%
Output power	210 W
Output frequency regulation	47 - 63 Hz
FEATURES
Audible alarm(s)	Yes
Output power capacity	0.35 kVA
Surge energy rating	310 J
Input frequency	50/60 Hz
Maximum current	7 A
Audible alarm(s)	Y
Output power capacity	0.35 kVA
Surge energy rating	310 J
Efficiency	98.6%
Output power	210 W
Power protection features	Overload
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Input operation voltage (max)	266 V
Input operation voltage (min)	180 V
Output frequency regulation	47 - 63 Hz
UPS topology	Standby (Offline)
Input frequency	50/60 Hz
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
Maximum current	7 A
Efficiency	98.6%
Output power	210 W
Power protection features	Overload
Surge protection	Y
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
Output frequency regulation	47 - 63 Hz
UPS topology	Standby (Offline)
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
ILLUMINATION/ALARMS
LED indicators	Battery replacement
Audible alarms	Y
LOGISTICS DATA
Products per pallet	48 pc(s)
Quantity per pallet	48 pc(s)
Harmonized System (HS) code	85078000
OPERATING SYSTEM/SOFTWARE
Bundled software	PowerChute Personal Edition
OPERATIONAL CONDITIONS
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 15000 m
Operating altitude	0 - 3000 m
Operating relative humidity range	0 - 95%
Storage temperature range (T-T)	-15 - 45 °C
Operating temperature range (T-T)	0 - 40 °C
Storage relative humidity range	0 - 95%
Non-operating altitude	0 - 15000 m
OTHER FEATURES
Interface	USB
Dimensions (WxDxH)	91 x 284 x 165 mm
Nominal output voltage	230 V
Nominal input voltage	230 V
I/O ports	DB-9 RS-232\nUSB\n
Package dimensions (WxDxH)	241 x 368 x 178 mm
Quantity per pallet	48 pc(s)
Nominal output voltage	230 V
Output connections	(1) IEC 320 C13\n(3) IEC 320 C13\n(2) IEC Jumpers
Input connection type	IEC-320-C14
Filtering	Y
Nominal input voltage	230 V
Filtering	Yes
Filtering	Y
PACKAGING CONTENT
Cables included	Phone (RJ-11), USB cable
Bundled software	PowerChute Personal Edition
Quick installation guide	Yes
Cables included	Phone (RJ-11), USB cable
Warranty card	Y
Quick installation guide	Y
Software CD	Y
Resource CD	Yes
PACKAGING DATA
Bundled software	PowerChute Personal Edition
Package weight	7.05 kg
Cables included	Phone (RJ-11), USB cable
Bundled software	PowerChute Personal Edition
Package dimensions (WxDxH)	241 x 368 x 178 mm
Quantity per pallet	48 pc(s)
Package weight	7.05 kg
Package depth	368 mm
Package height	178 mm
Package width	241 mm
Warranty card	Yes
Quick installation guide	Yes
Cables included	Phone (RJ-11), USB cable
Software CD	Yes
Package depth	368 mm
Package height	178 mm
Package width	241 mm
Warranty card	Y
Quick installation guide	Y
Software CD	Y
Resource CD	Yes
PERFORMANCE
LED indicators	Battery replacement
Audible alarms	Y
Hold time	10 ms
Source data-sheet	ICEcat.biz
Power protection features	Overload
Surge protection	Y
Surge protection features	Digital Subscriber Line (DSL), Fax, Modem, Telephone
UPS topology	Standby (Offline)
Hold time (min)	6 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
PORTS & INTERFACES
I/O ports	DB-9 RS-232\nUSB\n
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
Cable length	1.83 m
Power plug	C14 coupler
AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
USB port	Yes
Number of output IEC jumpers	2
Power plug	C14 coupler
AC outlet types	C13 coupler
Number of Schuko outputs	4
USB port	Y
SUSTAINABILITY
Sustainability certificates	ENERGY STAR, Green Premium
TECHNICAL DETAILS
Form factor	Tower
Energy Star certified	Y
Harmonized System (HS) code	85078000
Input connections	IEC-320-C14
Sustainability certificates	ENERGY STAR, Green Premium
Compliance certificates	RoHS
Source data-sheet	ICEcat.biz
Surge protection	Y
Sustainability certificates	RoHS, ENERGY STAR
WEIGHT & DIMENSIONS
Weight	6.32 kg
Package weight	7.05 kg
Height	165 mm
Weight	6.32 kg
Width	91 mm
Depth	284 mm
Package weight	7.05 kg
Package depth	368 mm
Package height	178 mm
Package width	241 mm
Height	165 mm
Width	91 mm
Depth	284 mm
Packaging depth	368 mm
Packaging height	178 mm
Packaging width	241 mm
