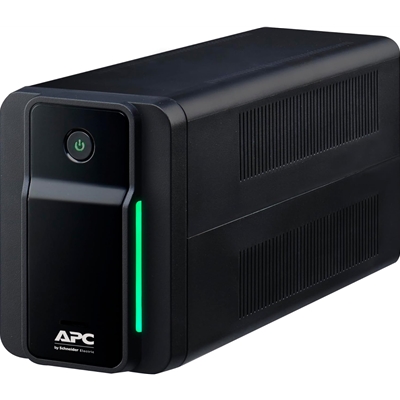

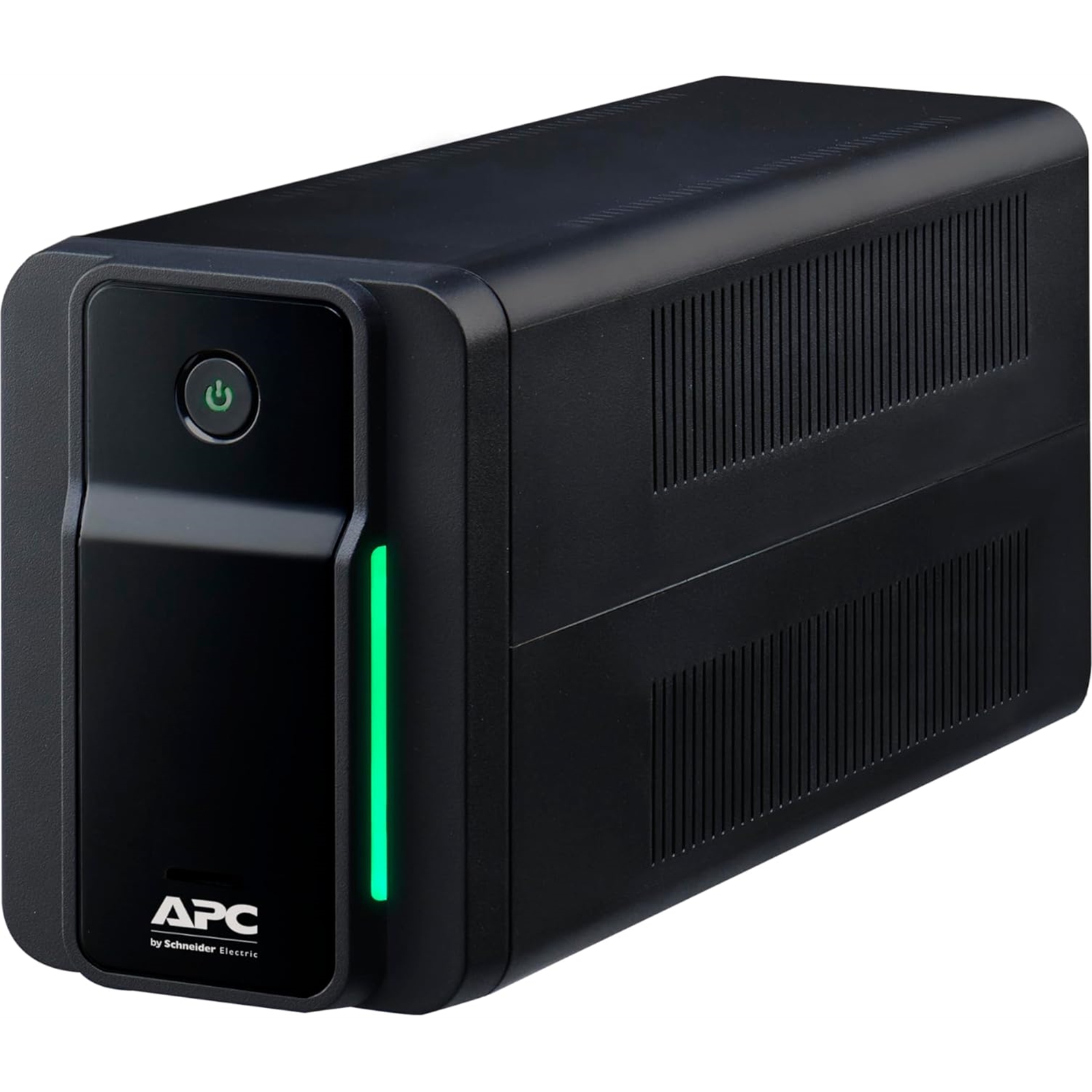

The APC Back-UPS BX500MI is a reliable 500VA/300W Line-Interactive UPS designed to provide robust power protection for your critical devices. Featuring Automatic Voltage Regulation (AVR), it ensures your equipment receives consistent voltage, even during power fluctuations. The UPS includes IEC sockets for versatile connectivity and comes with a USB communication cable for easy setup and monitoring. Its compact design and user-friendly interface make it ideal for both home and office use. With a lead-acid battery that recharges in 8 hours, it offers peace of mind by keeping your devices powered during outages.

Specifications:

Model:
APC Back-UPS BX500MI

Rated Power:
500VA / 300W

Input Voltage:
230V (Other: 220V)

Output Voltage:
230V (Other: 220V)

Number of Outlets:
3x IEC Sockets

USB Port:
Type A

Battery Type:
Lead-acid

Battery Capacity:
7.0 Ah

Battery Recharge Time:
8 hours

Runtime:
Up to 1 minute and 2 seconds at full capacity

Dimensions:
13.8 cm (H) x 9.8 cm (W) x 31 cm (D)

Weight:
4.2 kg

Mounting Options:
Floor

Color:
Black

Certifications:
CE, EAC

Standards:
EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Surge Protection:
310 J

Operating Temperature:
0°C to 40°C

Relative Humidity:
0% to 95%

Operating Altitude:
Up to 3000 ft

Storage Temperature:
-15°C to 45°C

Storage Humidity:
0% to 95%

Warranty:
2 years repair or replace

Manufacturer's Website:

www.apc.com

Warranty:

2 Years Repair or Replace Warranty

BATTERY
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Battery voltage	12 V
Automatic battery test	Yes
Battery life (max)	5 year(s)
CERTIFICATION
Certification	CE, EAC, EN/IEC 62040-1
Compliance certificates	RoHS
DESIGN
Certification	CE, EAC, EN/IEC 62040-1
Form factor	Tower
Cable length	1.5 m
LED indicators	Battery replacement
Product colour	Black
International Protection (IP) code	IP20
FEATURES
Audible alarm(s)	Yes
Output power capacity	0.5 kVA
Surge energy rating	273 J
Noise level	40 dB
Input frequency	50/60 Hz
Efficiency	96.1%
Output power	300 W
Surge protection	Yes
Input operation voltage (max)	300 V
Input operation voltage (min)	140 V
Output frequency	50/60 Hz
Input power factor	0.63
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Low battery alarm
LOGISTICS DATA
Harmonized System (HS) code	85078000
OPERATIONAL CONDITIONS
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-15 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 3000 m
PACKAGING DATA
Package weight	4.5 kg
Package depth	346 mm
Package height	222 mm
Package width	142 mm
PORTS & INTERFACES
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports	2
AC outlets quantity	3 AC outlet(s)
Number of output IEC jumpers	1
Power plug	C14 coupler
AC outlet types	C13 coupler
TECHNICAL DETAILS
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
WEIGHT & DIMENSIONS
Weight	4.2 kg
Package weight	4.5 kg
Height	138 mm
Width	98 mm
Depth	310 mm
Package depth	346 mm
Package height	222 mm
Package width	142 mm
