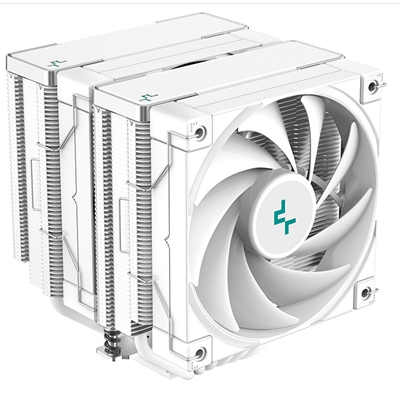

DeepCool AK620 WH Fan CPU Cooler, Universal Socket, Dual Powerful 120mm FDB PWM White Fans, 1850RPM, 6 Heat Pipes, 260W Heat Dissipation Power, Unique Matrix Fin Design, White Edition,

FADEE-AK620WHT
Key Specifications
Product TypeFan CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed1850RPM
LED ColourNone
/productImages/80/FADEE-AK620WHT.JPG
/productImages/80/178294.JPG
/productImages/80/178295.JPG
/productImages/80/178296.JPG
/productImages/80/178297.JPG
/productImages/80/178298.JPG
/productImages/80/178299.JPG
/productImages/80/178300.JPG
/productImages/80/178301.JPG
Manufacturer : DEEPCOOL
EAN : 6933412727453
Manufacturer Part Code : R-AK620-WHNNMT-G-1
Weight : 1.75 kg
Login For Pricing

Key Specifications
Product TypeFan CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed1850RPM
LED ColourNone
Manufacturer :
DEEPCOOL

EAN :
6933412727453

Manufacturer Part Code :
R-AK620-WHNNMT-G-1

Weight :
1.75 kg
Recommended Products
1289Motherboards
See details
1283Case Lighting & Mods
See details
1286Processors
See details
1288Paste
See details

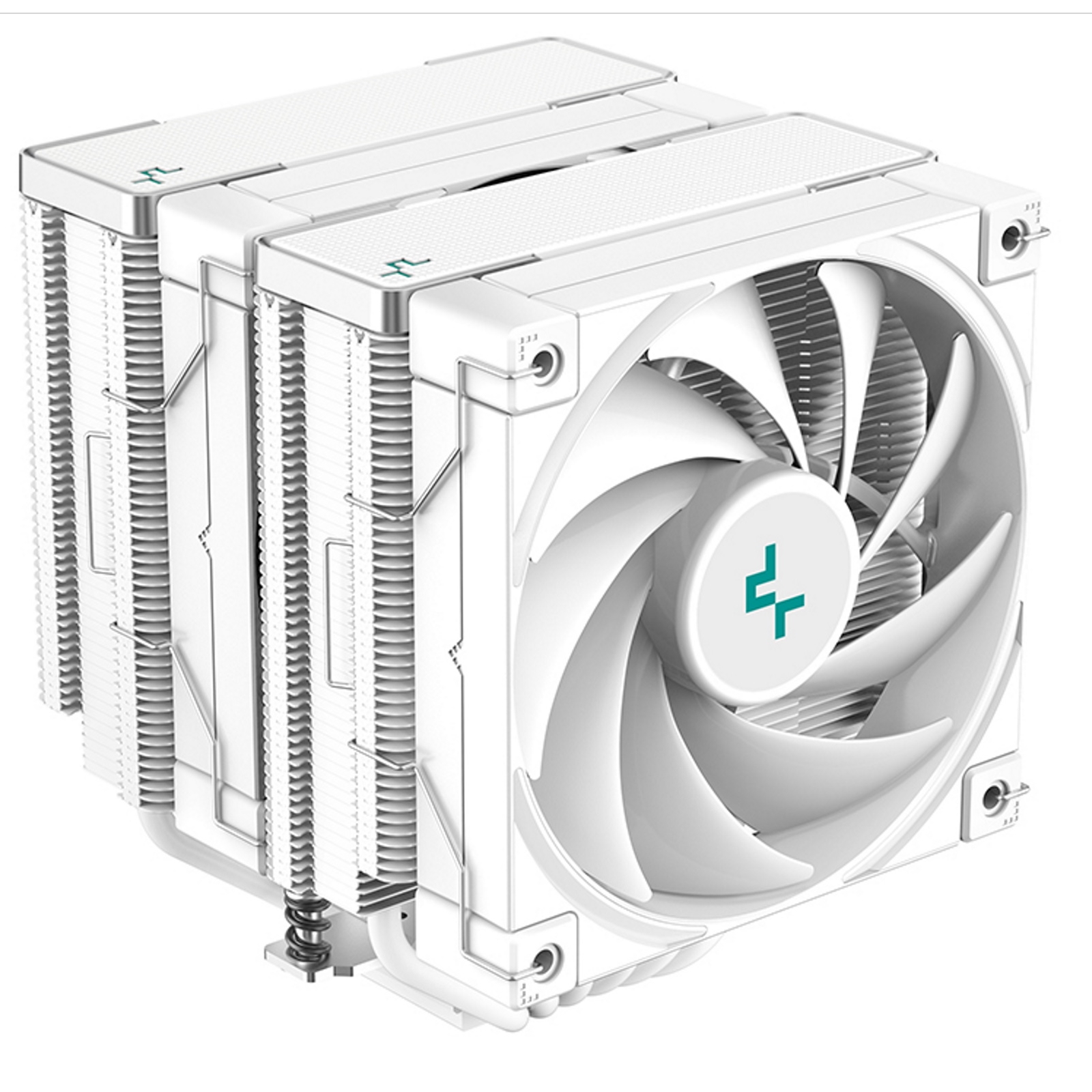

AK620 WH
High Performance Dual Tower CPU Cooler
Achieve dominant cooling and silent efficiency with the DeepCool AK620 WH High Performance CPU Cooler equipped with six copper heat pipes stacked with a dense dual-tower fin array and two 120 FDB fans.

UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 WH features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.

COOL, QUIET, AND POWERFUL
Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
- 28 dBA: Full load noise
- 500-1850 RPM: Dynamic PWM Range
- 50,000 hours: Long operational lifespan

EXCEPTIONAL COOLING BY DESIGN
The AK620 WH features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
- 160mm cooler height compatibility
- 43mm RAM height clearance (59mm in single fan configurations)

MULTI-PLATFORM SIMPLICITY
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.

Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: AM5 / AM4

Product Dimensions
129 x 138 x 160 mm

Heatsink Dimensions
127 x 110 x 157 mm

Net Weight
1456g

Heatpipe
6 mm x 6 pcs

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
300~1850 RPM ± 10%

Fan Airflow
68.99 CFM

Fan Air Pressure
2.19 mmAq

Fan Noise
=28 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.12 A

Fan Power Consumption
1.44 W
Manufacturer's Website:
uk.deepcool.com
Warranty:
2 Year Return To Base Warranty
DESIGN
Product colour White
Number of fans 2 fan(s)
Fan connector 4-pin
Number of heat pipes 6
ENERGY MANAGEMENT
Fan voltage 12 V
Fan current 0.12 A
Thermal Design Power (TDP) 260 W
Fan power consumption 1.44 W
LOGISTICS DATA
Harmonized System (HS) code 84733080
OTHER FEATURES
Country of origin China
Harmonized System (HS) code 84733080
PACKAGING CONTENT
Cables included Fan
Package type Box
Mounting kit Y
Screws included Y
Installation instruction Y
Thermal pad included Y
CPU bracket(s) Y
PERFORMANCE
Type Air cooler
Fan diameter 12 cm
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4
Suitable location Processor
Maximum airflow 68.99 cfm
Maximum air pressure 2.19 mmH2O
Noise level (high speed) 28 dB
Fan speed (max) 1850 RPM
Fan speed (min) 500 RPM
Rotational speed (max) 1850 RPM
Rotational speed (min) 500 RPM
Quantity per pack 1 pc(s)
Pulse-width modulation (PWM) support Y
Fan bearing technology Fluid Dynamic Bearing (FDB)
WEIGHT & DIMENSIONS
Weight 1.46 kg
Height 160 mm
Width 129 mm
Depth 138 mm
Radiator width 12.7 cm
Radiator depth 11 cm
Radiator height 15.7 cm
Heat pipes diameter 6 mm
Fan dimensions (W x D x H) 120 x 120 x 25 mm
