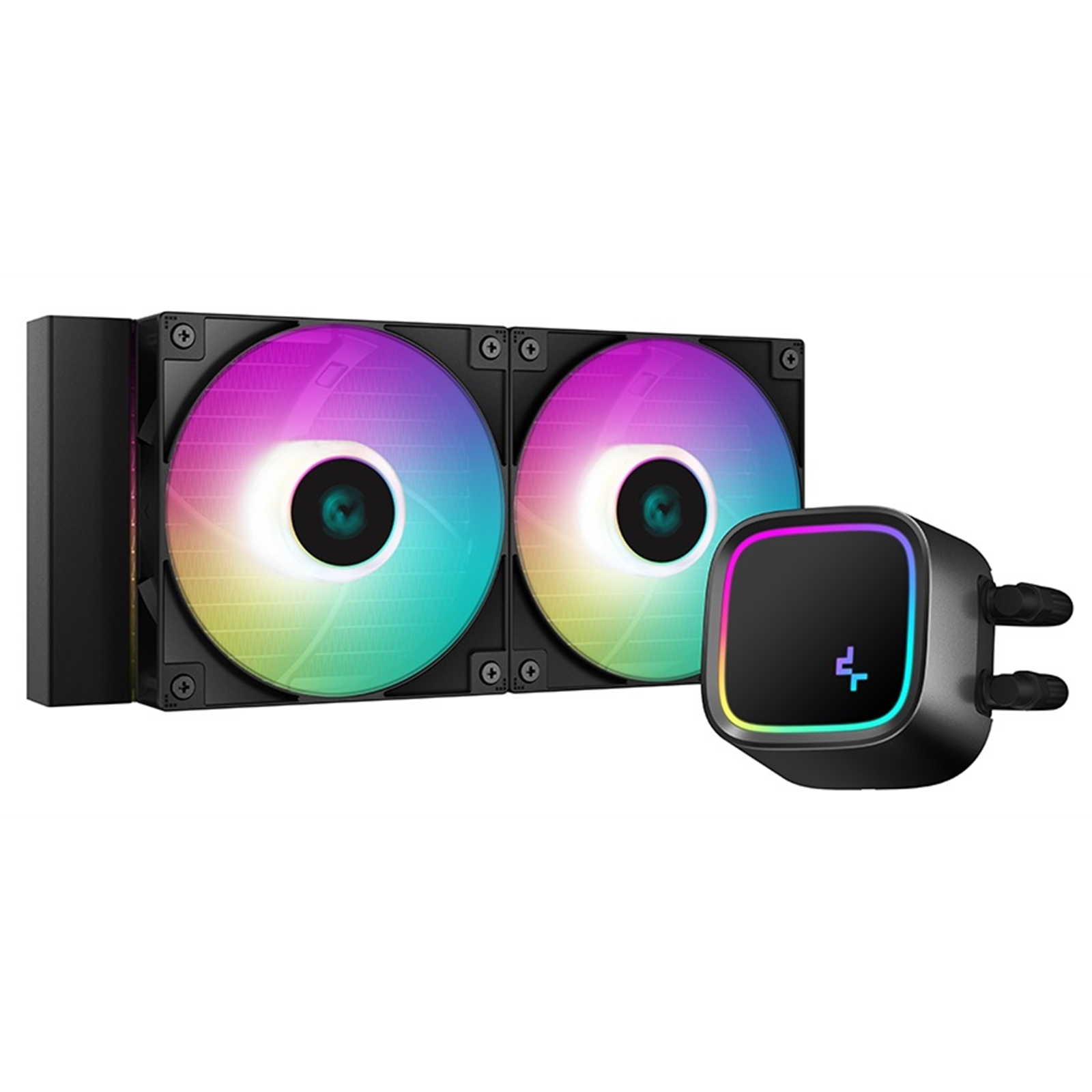

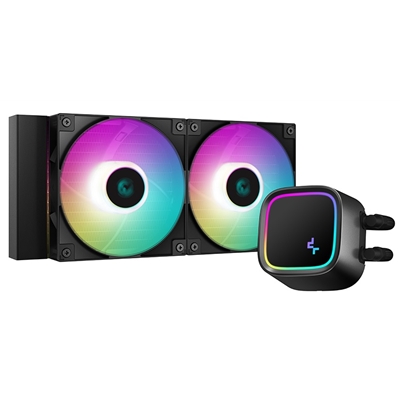

Deepcool LE520 240mm AIO Liquid Cooler w/ Anti-Leak Tech, 2300 RPM, High Performance ARGB Fans Black Liquid CPU Cooler

Key Specifications
Product TypeLiquid CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed2300RPM
Radiator Size240mm
LED ColourAddressable RGB
Manufacturer : DEEPCOOL
EAN : 6933412728047
Manufacturer Part Code : R-LE520-BKAMMN-G-1
Weight : 1.85 kg
Login For Pricing
Key Specifications
Product TypeLiquid CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed2300RPM
Radiator Size240mm
LED ColourAddressable RGB
Manufacturer :


Manufacturer Part Code :

Weight :
1.85 kg
Recommended Products
See details
1282Case Cooling
See details
See details
Introducing the Deepcool LE520 240mm AiO Liquid CPU Cooler R-LE520-BKAMMN-G-1, the perfect cooling solution for your high-performance desktop computer. Designed with advanced technology and exceptional cooling capabilities, this liquid CPU cooler is built to deliver optimal thermal management for your processor.

240mm Radiator
The Deepcool LE520 features a 240mm radiator that provides an ample cooling surface area, allowing for efficient heat dissipation. This radiator is equipped with high-density aluminum fins and a dense microchannel design, enabling maximum heat transfer and ensuring that your CPU stays cool even during intensive tasks and overclocking.

One of the standout features of this AiO (All-in-One) liquid cooler is its robust and reliable pump. The pump is designed to provide consistent and efficient coolant circulation, ensuring that your CPU remains at an ideal temperature. Its low operational noise ensures a peaceful computing experience, even during heavy workloads or gaming sessions.

Two 120mm PWM Fans
The LE520 comes with two 120mm PWM fans, which offer excellent airflow and static pressure. These fans are optimized for silent operation and can be easily controlled through your motherboard's fan control system. With the ability to adjust the fan speeds according to your CPU's temperature, you can strike the perfect balance between cooling performance and noise levels.

Installation is a breeze with the Deepcool LE520. It supports a wide range of CPU sockets, including Intel LGA115x, LGA2066, and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, and FM1. The all-inclusive mounting kit ensures compatibility with various processor types, making it suitable for both mainstream and enthusiast-grade systems.

Sleek Minimalistic Design
With its sleek and minimalistic design, the Deepcool LE520 adds a touch of elegance to your computer build. The stylish black finish, coupled with the customizable RGB lighting on the pump head, allows you to personalize the cooler's aesthetics to match your system's theme. Whether you prefer a vibrant color display or a subtle lighting effect, the LE520 offers versatility to suit your preferences.

In summary, the Deepcool LE520 240mm AiO Liquid CPU Cooler R-LE520-BKAMMN-G-1 is a top-of-the-line cooling solution that combines superior performance, easy installation, and aesthetic appeal. Keep your CPU running at optimal temperatures and unlock its full potential with this reliable and efficient liquid cooler. Upgrade your cooling game with Deepcool LE520 and experience a quieter and cooler computing experience.





AiO Liquid CPU Cooler

Radiator Dimensions
282 x 120 x 27 mm

Fan Dimensions
120 x 120 x 25 mm



Fin Density
16 FPI (Fins per Inch)

Tube Length
315 mm

Tube Material
Premium Sleeved Tubing


2300 RPM +1 0%

Noise Level
17.8 dB(A)

Rated Voltage

Rated Current

Power Consumption



120 x 120 x 25 mm

500-1800 RPM + 10%

69.34 CFM

Static Pressure
2.42 mmAq

Noise Level
<30 dB(A)

4-pin PWM

Rated Voltage

Rated Current

Power Consumption


Intel Socket: LGA2066/2011-v3/2011/1200/1151/1150/1155/1366
AMD Socket: AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Additional Features
RGB Lighting: Customizable RGB lighting on the pump head
Control: Compatible with major motherboard RGB sync software

Package Contents

1 x Deepcool LE520 240mm Radiator
2 x 120mm PWM Fans
1 x Intel Mounting Kit
1 x AMD Mounting Kit
1 x User Manual
Manufacturer's Website:
3 Year Return To Base Warranty
Product colour Black
Number of fans 2 fan(s)
Illumination colour Multi
Base plate material Copper
Fan connector 4-pin
Radiator material Aluminum
Illumination LED Y
Number of fan blades 9
LED connector type 3-pin
Pump voltage 12 V
Pump current 200 mA
Fan voltage 12 V
Fan current 0.25 A
Thermal Design Power (TDP) 220 W
Fan power consumption 3 W
Pump power consumption 2.4 W
LED voltage 5 V
LED power consumption (pump) 2.25 W
LED power consumption (fan) 2.1 W
Cables included 3-pin, 4-pin
Package type Box
Mounting kit Y
Screws included Y
CPU bracket(s) Y
Type All-in-one liquid cooler
Fan diameter 12 cm
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Suitable location Processor
Maximum airflow 85.85 cfm
Minimum air pressure 3.27 mmH2O
Maximum air pressure 3.27 mmH2O
Noise level (high speed) 32.9 dB
Pump motor speed 2400 RPM
Fan speed (max) 2250 RPM
Fan speed (min) 500 RPM
Rotational speed (max) 2250 RPM
Rotational speed (min) 500 RPM
Bearing type Hydro Dynamic Bearing (HDB)
Quantity per pack 1 pc(s)
Fan noise level (max) 32.9 dB
Pump noise level 17.8 dB
Pulse-width modulation (PWM) support Y
Pump connector 3-pin
Fan static pressure 3.27 mmH2O
Fan diameter 2 12 cm
Fan 2 rotational speed (min) 500 RPM
Fan 2 rotational speed (max) 2250 RPM
Fan bearing technology Hydro bearing
Weight 1.24 kg
Radiator width 12 cm
Radiator depth 28.2 cm
Radiator height 2.7 cm
Tube length 41 cm
Fan dimensions (W x D x H) 120 x 120 x 25 mm
Pump width 9.1 cm
Pump depth 8 cm
Pump height 5.2 cm
Fan 2 dimensions (W x D x H) 120 x 120 x 25 mm
