Target Components

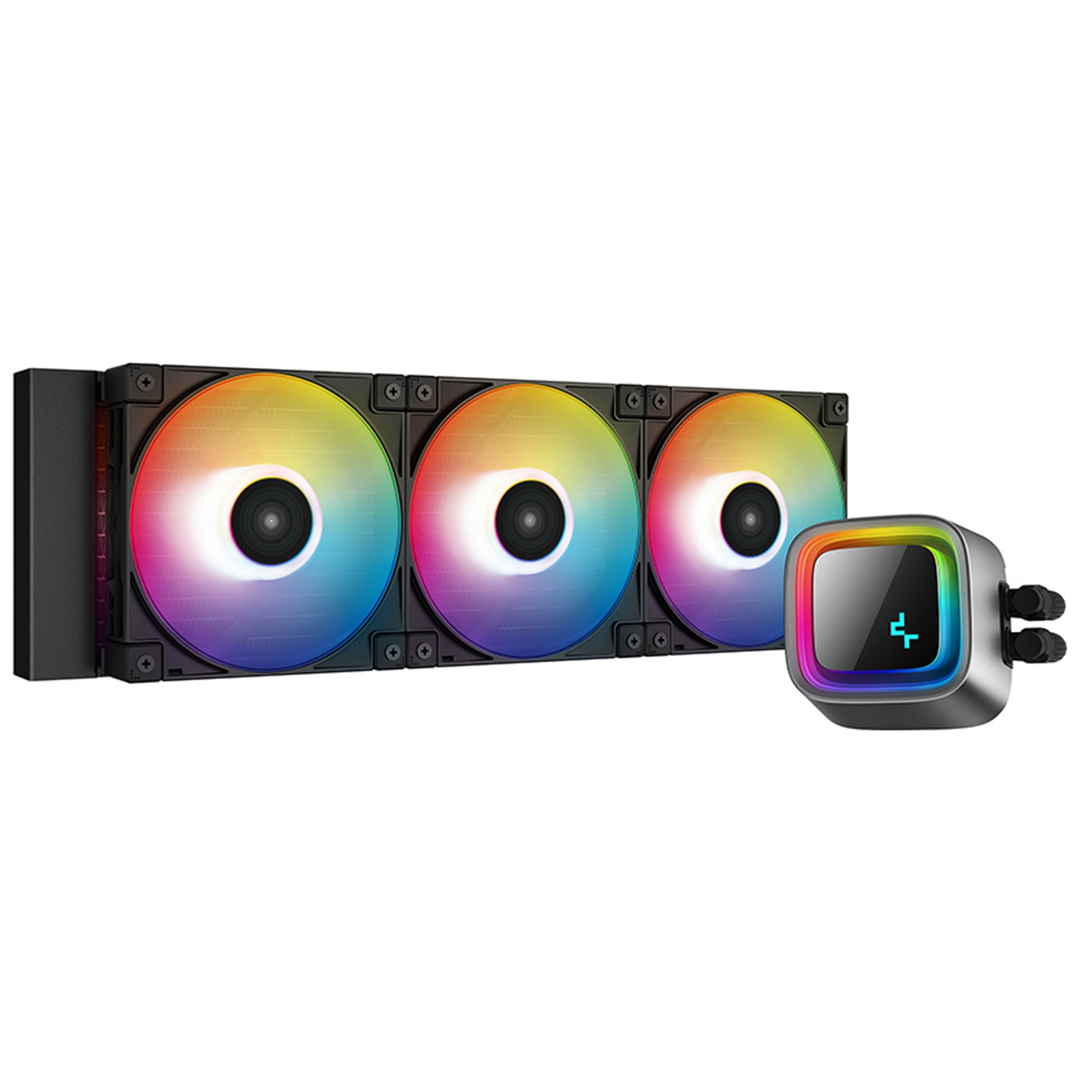

DeepCool LS720 Premium AiO Liquid CPU Cooler, Universal Socket, 360mm Radiator, PWM 2250RPM Cooling Fans, Addressable RGB LED Lighting, Fully Customizable Infinity Mirror Cap Design, Black Version

Key Specifications
Product TypeLiquid CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed2250RPM
Radiator Size360mm
LED ColourAddressable RGB
/productImages/80/FADEE-LS720.jpg
/productImages/80/173038.JPG
/productImages/80/173039.JPG
/productImages/80/173040.JPG
/productImages/80/173041.JPG
/productImages/80/173042.JPG
/productImages/80/173043.JPG
/productImages/80/173044.JPG
/productImages/80/173045.JPG
Manufacturer : DEEPCOOL
EAN : 6933412727477
Manufacturer Part Code : R-LS720-BKAMNT-G-1
Weight : 2.55 kg
Login For Pricing

Key Specifications
Product TypeLiquid CPU Cooler
Socket CompatibilityUniversal
Max Fan Speed2250RPM
Radiator Size360mm
LED ColourAddressable RGB
Manufacturer :
DEEPCOOL

EAN :
6933412727477

Manufacturer Part Code :
R-LS720-BKAMNT-G-1

Weight :
2.55 kg
Recommended Products
1286Processors
See details
1282Case Cooling
See details
1289Motherboards
See details

LS720
Elite Performance
The DeepCool LS720 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 360mm radiator, three FC120 A-RGB PWM fans, and an infinity mirror cap design.

A NEW ERA OF DEEPCOOL
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Improved Microchannel design ensures optimal coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.
3. Thick solid copper base with a seamless match.

COOL AND QUIET
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
- 500~2250 RPM* - Dynamic PWM Range
- 85.85 CFM - Supreme Airflow
- =32.9 dB (A) - Full Load Noise
- 50,000 Hours - Long Operational Lifespan
*The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.

SIMPLE AND SECURE
Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.

CUSTOMIZE YOUR LOOK
The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.

SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.

Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4

Radiator Dimensions
402 x 120 x 27 mm

Radiator Material
Aluminum

Tube length
410 mm

Pump Dimensions
86 x 74 x 57 mm

Pump Speed
3100 RPM ± 10%

Pump Noise
19 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.47 A

Pump Power Consumption
5.64 W

Fan Dimensions
120 x 120 x 25 mm

Fan Speed
500~2250 RPM ± 10%

Fan Airflow
85.85 CFM

Fan Air Pressure
3.27 mmAq

Fan Noise
=32.9 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.29 A

Fan Power Consumption
3.48 W

LED Type
Addressable RGB LED

LED Connector
3-pin (+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.2 W (PUMP)/ 5.4 W (3 x FAN)

Net Weight
1607 g
Manufacturer's Website:
Warranty:
5 Years Return To Base Warranty
DESIGN
Product colour Black
Number of fans 3 fan(s)
Illumination colour Multi
Fan connector 4-pin
Radiator material Aluminum
Illumination LED Y
LED connector type 3-pin
ENERGY MANAGEMENT
Pump voltage 12 V
Pump current 470 mA
Fan voltage 12 V
Fan current 0.29 A
Fan power consumption 3.48 W
Pump power consumption 5.64 W
LED voltage 5 V
LED power consumption (pump) 2.2 W
LED power consumption (fan) 5.4 W
OTHER FEATURES
Country of origin China
PACKAGING CONTENT
Package type Box
Mounting kit Y
Screws included Y
CPU bracket(s) Y
PERFORMANCE
Type All-in-one liquid cooler
Fan diameter 12 cm
Supported processor sockets LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4
Suitable location Processor
Maximum airflow 85.85 cfm
Maximum air pressure 3.27 mmH2O
Noise level (high speed) 32.9 dB
Pump motor speed 3100 RPM
Rotational speed (max) 2250 RPM
Rotational speed (min) 500 RPM
Quantity per pack 1 pc(s)
Pump noise level 19 dB
Pulse-width modulation (PWM) support Y
Pump connector 3-pin
Fan bearing technology Fluid Dynamic Bearing (FDB)
WEIGHT & DIMENSIONS
Weight 1.61 kg
Package weight 2.6 kg
Height 132 mm
Width 245 mm
Depth 456 mm
Radiator width 40.2 cm
Radiator depth 12 cm
Radiator height 2.7 cm
Tube length 41 cm
Fan dimensions (W x D x H) 120 x 120 x 25 mm
Pump width 8.6 cm
Pump depth 7.4 cm
Pump height 5.7 cm
