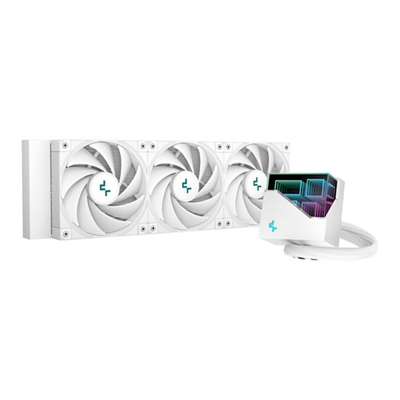

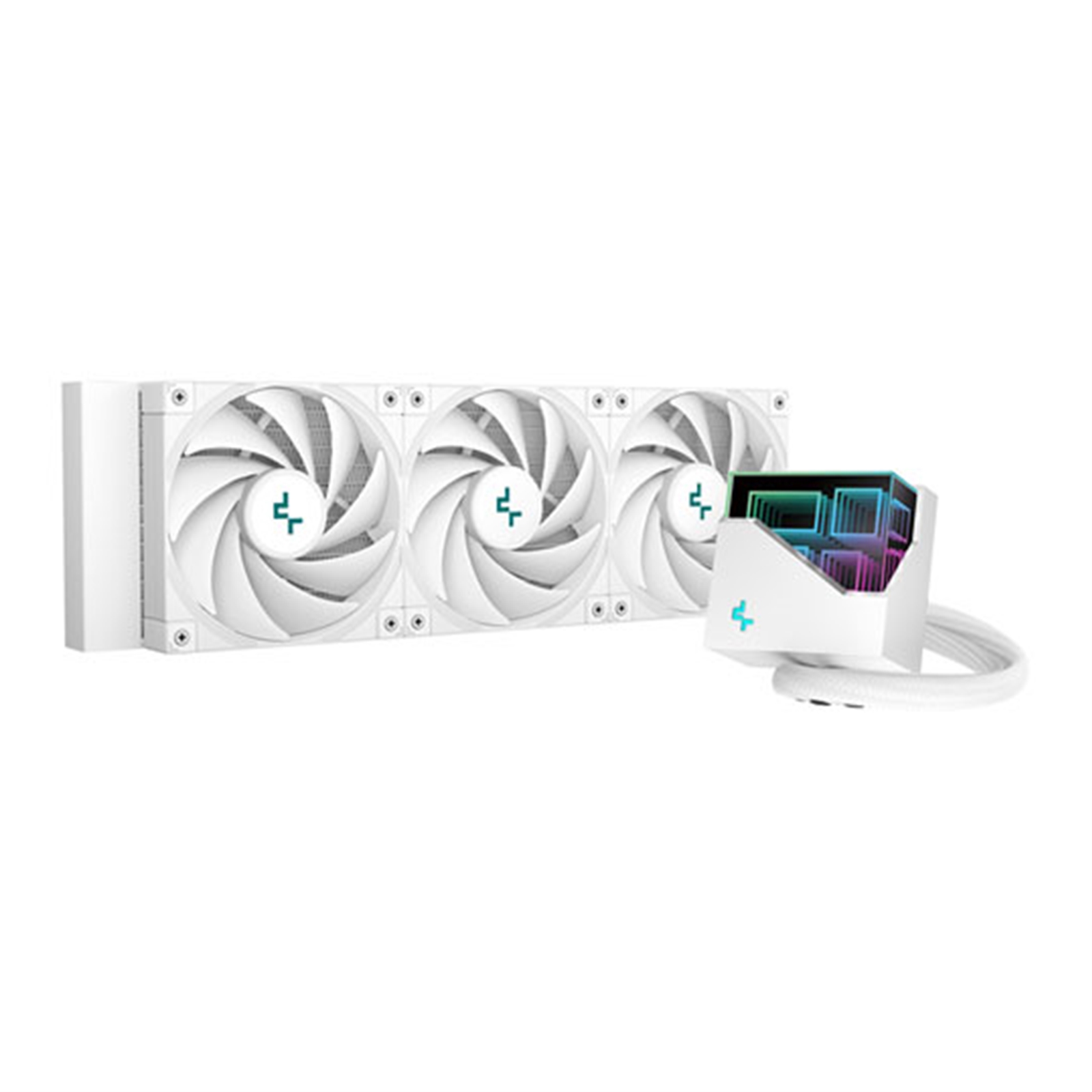

| Product Type | Liquid CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 2250RPM |
| Radiator Size | 360mm |
| LED Colour | RGB |
| Product Type | Liquid CPU Cooler |
| Socket Compatibility | Universal |
| Max Fan Speed | 2250RPM |
| Radiator Size | 360mm |
| LED Colour | RGB |
| DESIGN | |
|---|---|
| Product colour | White |
| Number of fans | 3 fan(s) |
| Fan connector | 4-pin |
| Radiator material | Aluminum |
| Illumination LED | Yes |
| LED connector type | 3-pin | ENERGY MANAGEMENT |
| Voltage | 12 V |
| Pump voltage | 12 V |
| Pump current | 0.38 mA |
| Fan voltage | 12 V |
| Fan current | 0.22 A |
| Fan power consumption | 2.64 W |
| Pump power consumption | 4.56 W |
| LED voltage | 5 V |
| LED power consumption (pump) | 3.15 W | PACKAGING CONTENT |
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| CPU bracket(s) | Yes | PERFORMANCE |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket sTR4, Socket sTRX4 |
| Suitable location | Processor |
| Maximum airflow | 85.85 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Pump motor speed | 3100 RPM |
| Fan speed (max) | 2250 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 32.9 dB |
| Pump noise level | 19 dB |
| Pulse-width modulation (PWM) support | Yes |
| Pump connector | 3-pin |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) | WEIGHT & DIMENSIONS |
| Weight | 1.86 kg |
| Radiator width | 40.2 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump width | 9.4 cm |
| Pump depth | 6.8 cm |
| Pump height | 8 cm |
