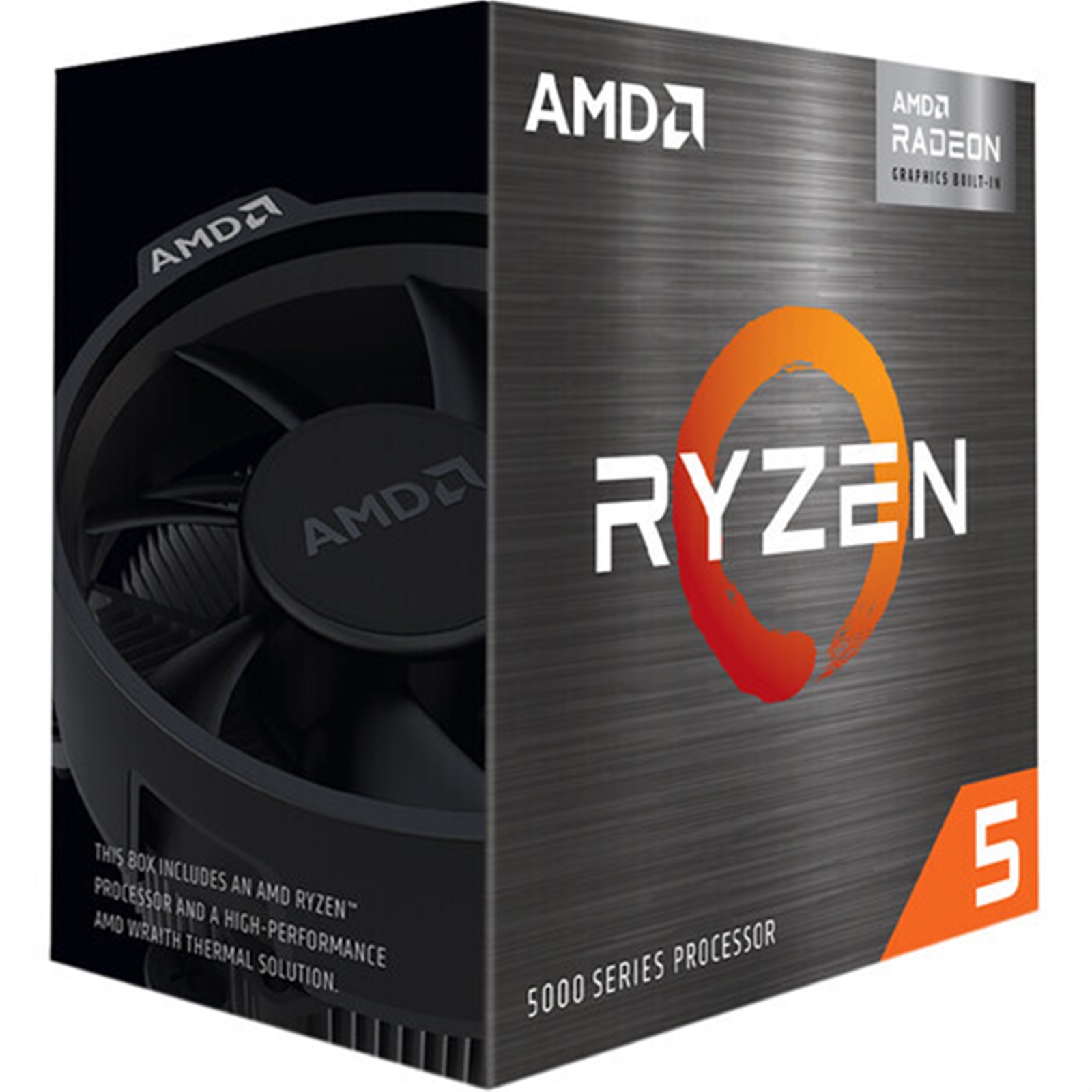

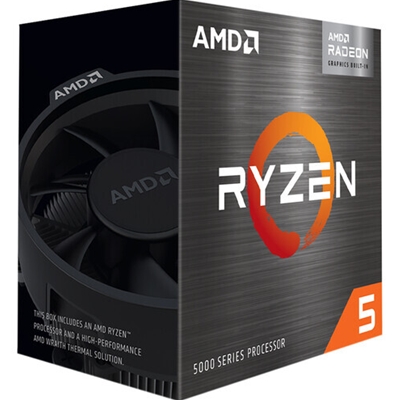

AMD Ryzen 5 5500GT 3.6GHz 6 Core AM4 Processor, 12 Threads, 3.6GHz up to 4.4GHz Boost, 19MB Cache, 65W, with Wraith Stealth Cooler, Radeon Graphics

Key Specifications
SocketAM4
On-Chip GraphicsYes
Speed3.6GHz
Core Quantity6
PrefixRyzen 5
Manufacturer : AMD
EAN : 730143316040
Manufacturer Part Code : 100-100001489BOX
Weight : 0.4 kg
Login For Pricing

Key Specifications
SocketAM4
On-Chip GraphicsYes
Speed3.6GHz
Core Quantity6
PrefixRyzen 5
Manufacturer :
AMD

EAN :
730143316040

Manufacturer Part Code :
100-100001489BOX

Weight :
0.4 kg
Recommended Products
1289Motherboards
See details
1287Air Cooling
See details
1451Liquid Cooling
See details

Unleash Peak Performance: AMD Ryzen 5 5500GT 3.6GHz 6 Core AM4 Processor
Transform your computing experience with the AMD Ryzen 5 5500GT processor. Featuring a robust 3.6GHz base clock and a dynamic 6-core configuration, this AM4 processor stands as a powerhouse for enhanced performance. With 12 threads and an impressive 4.6GHz boost clock, the Ryzen 5 5500GT ensures responsive multitasking and an exceptional computing journey.

Effortless Multitasking Prowess: 12 Threads and 4.6GHz Boost
Elevate your multitasking capabilities with the AMD Ryzen 5 5500GT's 12 threads, effortlessly handling diverse tasks. The rapid 4.6GHz boost clock adds an extra layer of speed, making it well-suited for resource-intensive applications, content creation, and smooth multitasking experiences.

Immersive Visuals: Radeon Graphics for Unmatched Quality
Experience captivating visuals with the integrated Radeon Graphics. The AMD Ryzen 5 5500GT processor delivers exceptional graphics performance, eliminating the need for a separate graphics card. Immerse yourself in high-quality visuals for gaming, streaming, and creative projects.


Specifications

General Specifications

Platform:
Boxed Processor

Market Segment:
Mainstream Desktop

Product Family:
AMD Ryzen Processors

Product Line:
AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics

Consumer Use:
Yes

Commercial Use:
No

Regional Availability:
Global, China, NA, EMEA, APJ, LATAM

Former Codename:
"Cezanne"

Architecture:
"Zen 3"

# of CPU Cores:
6

Multithreading (SMT):
Yes

# of Threads:
12

Max. Boost Clock:
Up to 4.4GHz

Base Clock:
3.6GHz

L1 Cache:
384KB

L2 Cache:
3MB

L3 Cache:
16MB

Default TDP:
65W

AMD Configurable TDP (cTDP):
45-65W

Processor Technology for CPU Cores:
TSMC 7nm FinFET

CPU Compute Die (CCD) Size:
180mm²

Package Die Count:
1

Unlocked for Overclocking:
Yes

CPU Socket:
AM4

Thermal Solution (PIB):
AMD Wraith Stealth

Thermal Solution (MPK):
AMD Wraith Stealth

Max. Operating Temperature (Tjmax):
95°C

Launch Date:
1/8/2024

*OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express Version:
PCIe 3.0

NVMe Support:
Boot, RAID0, RAID1, RAID10

System Memory Type:
DDR4

Memory Channels:
2

Max. Memory:
128GB

System Memory Subtype:
UDIMM

Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

Graphics Capabilities

Integrated Graphics:
Yes

Graphics Model:
Radeon Graphics

Graphics Core Count:
7

Graphics Frequency:
1900 MHz
Manufacturer's Website:
Warranty:
3 Years Return to Manufacturer Warranty www.amd.com/warranty
FEATURES
Compatible operating systems Windows 11/10 x64, RHEL x86 64-bit, Ubuntu x86 64-bit
PCI Express slots version 3.0
Market segment Desktop
GRAPHICS
On-board graphics card model AMD Radeon Graphics
Discrete graphics card model Not available
On-board graphics card Yes
On-board graphics card base frequency 1900 MHz
Discrete graphics card No
MEMORY
Memory channels Dual-channel
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 2667,2933,3200 MHz
PACKAGING DATA
Package type Box
PROCESSOR
Processor model 5500GT
Processor manufacturer AMD
Processor lithography 7 nm
Processor family AMD Ryzen™ 5
Box Yes
Processor socket Socket AM4
Package type Box
Processor cores 6
Processor threads 12
Processor operating modes 64-bit
Processor boost frequency 4.4 GHz
Processor cache 16 MB
Thermal Design Power (TDP) 65 W
Configurable TDP-down 45 W
Processor cache type L3
Configurable TDP-up 65 W
Cooler included Yes
Processor base frequency 3.6 GHz
Processor generation AMD Ryzen 5000 Series
