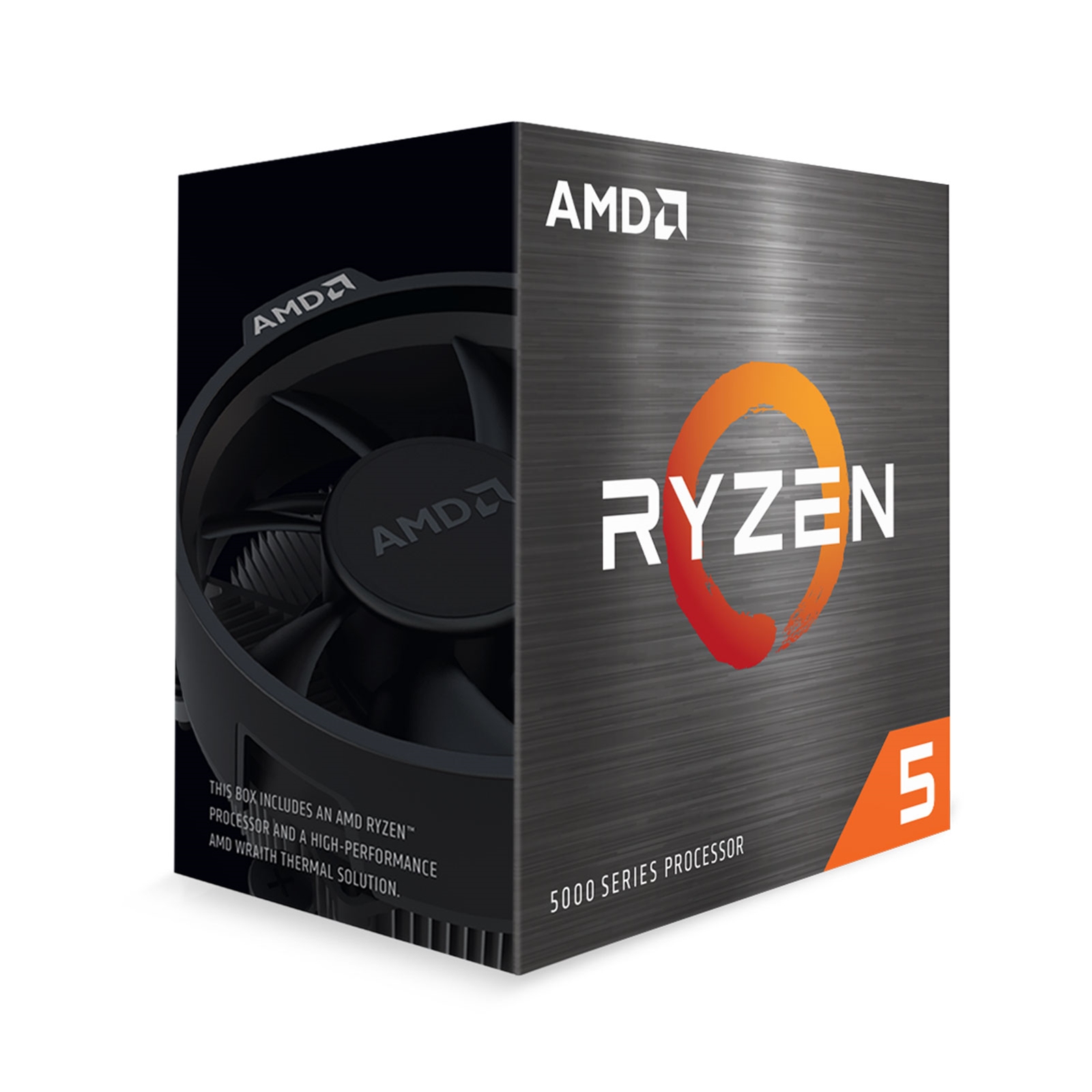

AMD Ryzen 5 5600 6 Core 12 Thread AM4 Socket Overclockable Processor with included Wraith Stealth Cooler

CPU Type
AMD Ryzen 5

CPU Model
5600

Core Name
Zen 3

Socket
AM4

CPU Size
7nm

Number of Cores
6

Number of Threads
12

Clock Speed
3.5GHz

Turbo Speed
4.4GHz

Unlocked Core Multiplier
Yes

L2 Cache
3MB

L3 Cache
16MB

Max TDP
65W

Processor Graphics
N

Graphics Frequency
N/A

Graphics Model
N/A

Graphics Core Count
N/A

System Memory

System Memory Specification
Up to 3200MHz

System Memory Type
DDR4

Memory Channels
2

Heatsink
Wraith Stealth

Max Temps
90°C

Packaging
Retail

Manufacturer's Website:

www.amd.co.uk

Warranty:

3 Years Return to Manufacturer Warranty www.amd.com/warranty

FEATURES
PCI Express slots version	4.0
Market segment	Desktop
Harmonized System (HS) code	85423119
GRAPHICS
On-board graphics card model	Not available
Discrete graphics card model	Not available
On-board graphics card	No
Discrete graphics card	No
LOGISTICS DATA
Country of origin	China
Harmonized System (HS) code	85423119
MEMORY
ECC	Yes
Non-ECC	Yes
Memory channels	Dual-channel
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2667,2933,3200 MHz
PACKAGING DATA
Package weight	452 g
PROCESSOR
Processor model	5600
Processor manufacturer	AMD
Processor lithography	7 nm
Processor family	AMD Ryzen™ 5
Box	Yes
Processor socket	Socket AM4
Processor cores	6
Processor threads	12
Processor operating modes	64-bit
Processor boost frequency	4.4 GHz
Processor cache	32 MB
Thermal Design Power (TDP)	65 W
Processor cache type	L3
Cooler included	Yes
Processor base frequency	3.5 GHz
Processor generation	AMD Ryzen 5000 Series
PROCESSOR SPECIAL FEATURES
Intel� Hyper Threading Technology (Intel� HT Technology)	No
WEIGHT & DIMENSIONS
Weight	0.38 g
Weight	380 g
Height	13.1 mm
Height	131 mm
Width	71 mm
Depth	131 mm
