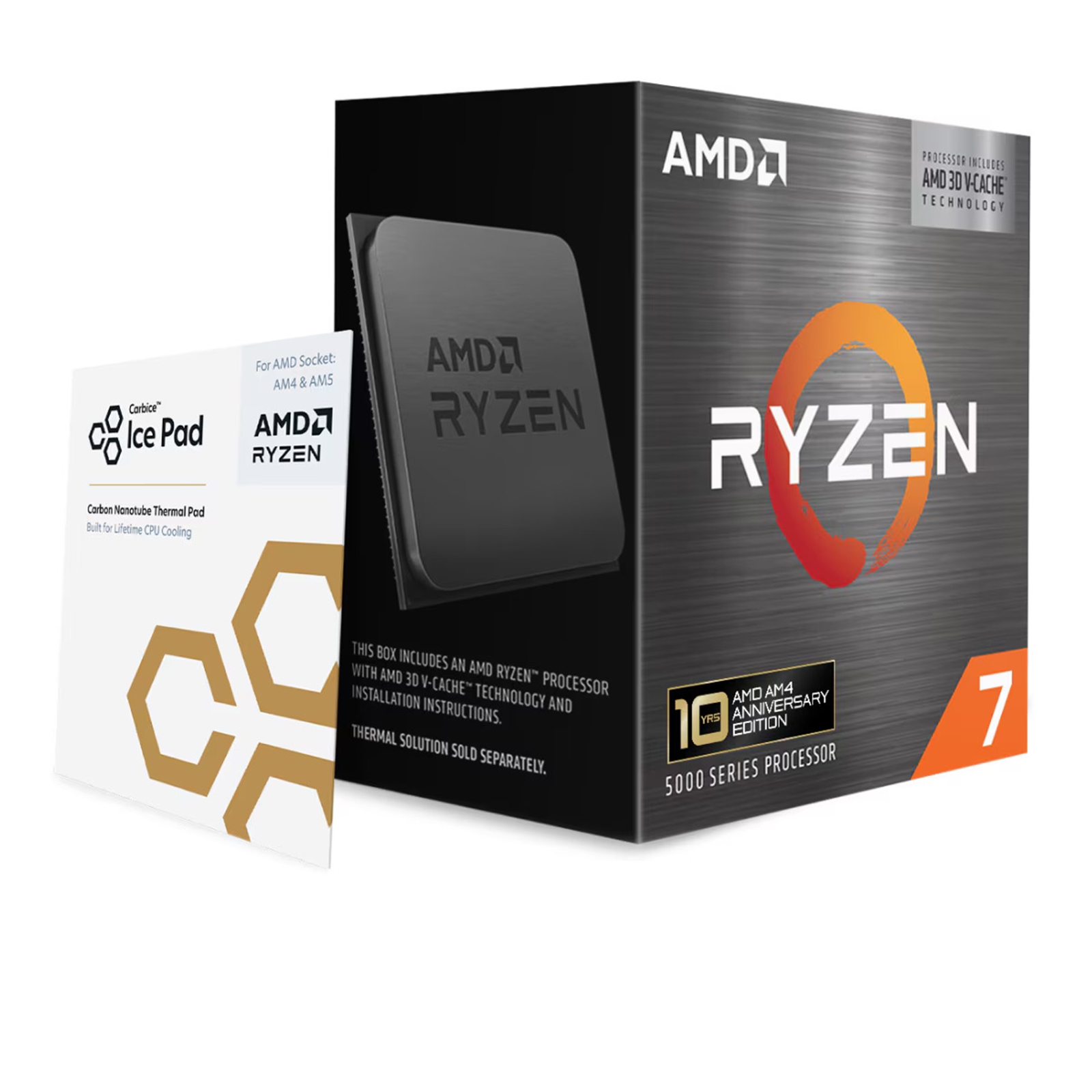

AMD Ryzen 7 5800X3D 8 Core Processor, 16 Threads, 3.4Ghz up to 4.5Ghz Turbo, 96MB Cache, 105W, No Fan, No Graphics - Anniversary Edition

PRAMD-5800X3D-AE
Key Specifications
SocketAM4
On-Chip GraphicsNo
Speed4.5GHz
Core Quantity8
PrefixRyzen 7
/productImages/80/PRAMD-5800X3D-AE.jpg
/productImages/80/215140.JPG
/productImages/80/215141.JPG
/productImages/80/215142.JPG
/productImages/80/215143.JPG
Manufacturer : AMD
EAN : 730143313797 AE
Manufacturer Part Code : 100-100000651POF
Weight : 0.1 kg
Login For Pricing

Key Specifications
SocketAM4
On-Chip GraphicsNo
Speed4.5GHz
Core Quantity8
PrefixRyzen 7
Manufacturer :
AMD

EAN :
730143313797 AE

Manufacturer Part Code :
100-100000651POF

Weight :
0.1 kg
Recommended Products
1289Motherboards
See details
1287Air Cooling
See details
1451Liquid Cooling
See details
1288Paste
See details

AMD Ryzen 7 5800X3D Gaming Processor

The AMD Ryzen 7 5800X3D is the ultimate gaming processor on any DDR4 platform.1,2 Every 10th Anniversary Edition AMD Ryzen 7 5800X3D Processor includes a Carbice Ice Pad.

Specifications

Name
AMD Ryzen 7 5800X3D

Family
Ryzen

Series
Ryzen 5000 Series

Form Factor
Desktops , Boxed Processor

Former Codename
Vermeer

Processor Architecture
Zen 3

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 4.5 GHz

Base Clock
3.4 GHz

L1 Cache
512 KB

L2 Cache
4 MB

L3 Cache
96 MB

Default TDP
105W

Processor Technology for CPU Cores
TSMC 7nm FinFET

Processor Technology for I/O Die
12nm (Globalfoundries)

CPU Compute Die (CCD) Size
74mm²

I/O Die (IOD) Size
125mm²

Package Die Count
2

CPU Socket
AM4

Supporting Chipsets
X570 , X470 , B550 , B450 , A520

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)
Not Included

Recommended Cooler
Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
90°C

*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps)
4

Native USB 3.2 Gen 1 (5Gbps)
0

Native USB 2.0 (480Mbps)
0

Native SATA Ports
2

PCI Express Version
PCIe 4.0

Native PCIe Lanes (Total/Usable)
24 , 20

Additional Usable PCIe Lanes from Motherboard
X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2

NVMe Support
Boot , RAID0 , RAID1 , RAID10

System Memory Type
DDR4

Memory Channels
2

Max. Memory
128 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

ECC Support
Yes (Requires mobo support)

Graphics Capabilities

Graphics Model
Discrete Graphics Card Required

Supported Technologies
AMD 3D V-Cache Technology , Windows 11 Gaming , AMD Ryzen VR-Ready Premium
Manufacturer's Website:
www.amd.co.uk
Warranty:

AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.

Coverage

Year 1: Return to Target or AMD for warranty service.

Years 2-3: Warranty service provided directly by AMD

AMD Warranty Support

AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html

Please Note: First-time users must create an AMD account to access warranty services.

AMD Help & Support: https://www.amd.com/en/support.html

Required Documentation for AMD Warranty Claims

  • 1. Product details including serial number and model number.
  • 2. Clear explanation of the problem you're experiencing
  • 3. Proof of purchase (receipt or invoice).
  • 4. Photo of the CPU
FEATURES
Compatible operating systems Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit
PCI Express slots version 4.0
Processing Die size 74 mm²
GRAPHICS
On-board graphics card model Not available
Discrete graphics card model Not available
On-board graphics card No
Discrete graphics card No
MEMORY
ECC Yes
Memory channels Dual-channel
Maximum internal memory supported by processor 128 GB
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 2667,2933,3200 MHz
OPERATIONAL CONDITIONS
Minimum operating temperature 90 °C
PACKAGING DATA
Package type Box
PROCESSOR
Processor model 5800X3D
Processor manufacturer AMD
Processor lithography 7 nm
Processor family AMD Ryzen™ 7
Processor socket Socket AM4
Package type Box
Processor cores 8
Processor threads 16
Compatible chipsets AMD X470, AMD A520, AMD B450, AMD B550, AMD X570
Processor operating modes 64-bit
Processor boost frequency 4.5 GHz
Processor cache 96 MB
Thermal Design Power (TDP) 105 W
Processor cache type L3
Cooler included No
Processor base frequency 3.4 GHz
Processor generation AMD Ryzen 5000 Series
