Target Components

Model

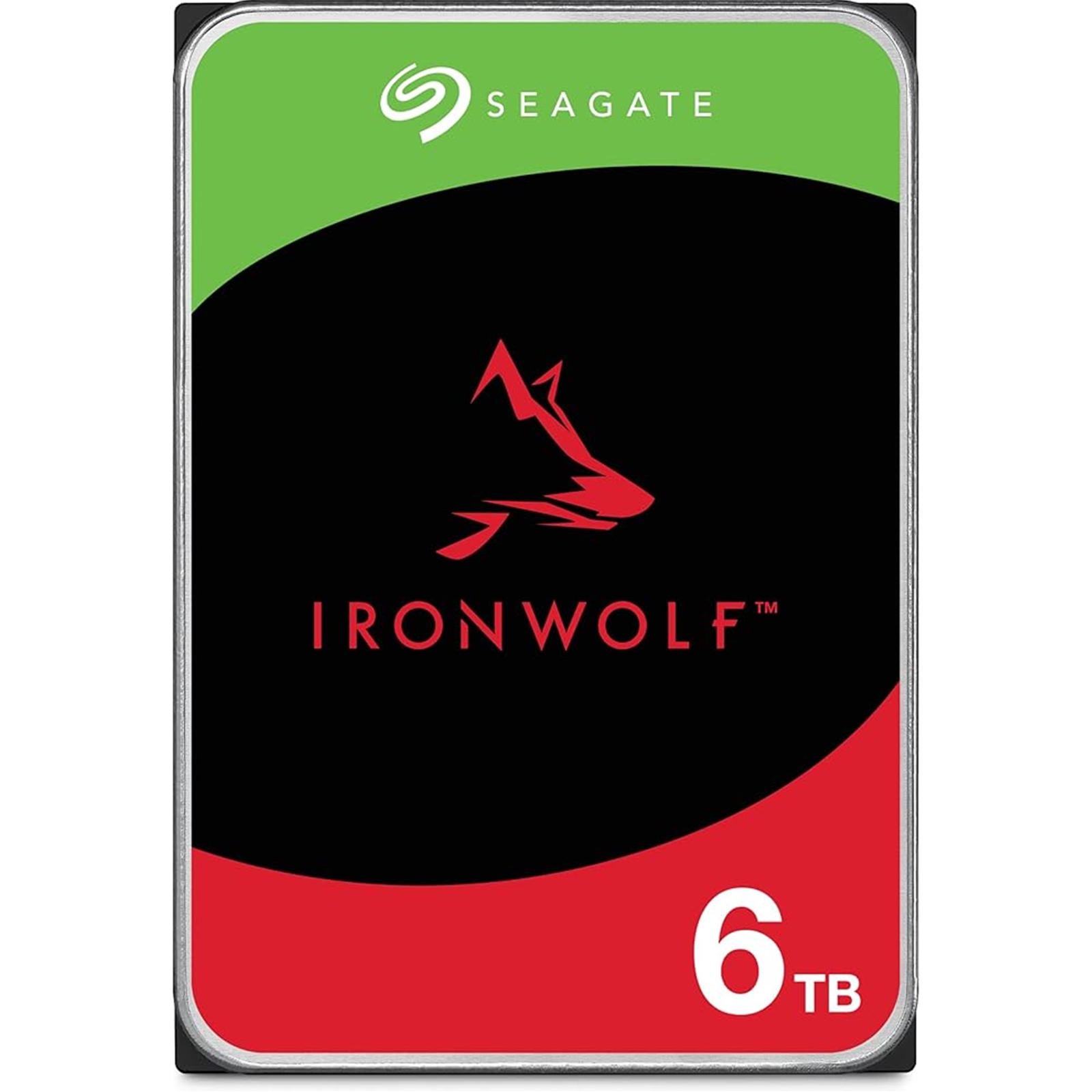

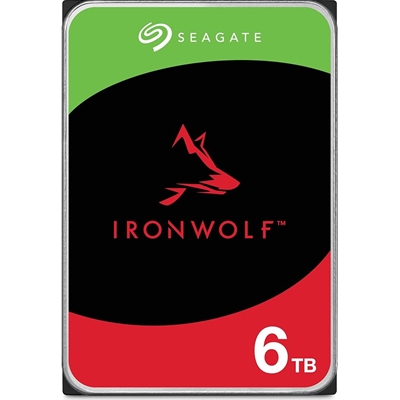

Seagate IronWolf NAS ST6000VN006 6TB 3.5" 5400RPM 256MB Cache Sata lll Internal Hard Drive

Capacity
6TB

Interface
SATA 6GB/s

Features and Performance

Drive Bays Supported
1-8 Bays

Recording Technology
CMR

Drive Design (Air or Helium)
Air

Workload Rate Limit (WRL)
180

Rotational Vibration (RV) Sensor
Yes

Dual-Plane Balance
Yes

Error Recovery Control
Yes

Max. Sustained Transfer Rate OD (MB/s)
190MB/s

Spindle Speed (RPM)
5400

Cache
256MB

Reliability

Load/Unload Cycles
600,000

Nonrecoverable Read Errors Rate, Max
1 per 10E14

Power-On Hours
8760

Mean Time Between Failures (MTBF, hours)
1,000,000

Rescue Data Recovery Services (years)
3

Warranty, Limited (years)
3

Power Management

Startup Current, Typical (12V, A)
1.8

Average Operating Power
5.3

Idle Power Average (W)
3.4W

Standby Mode/Sleep Mode, Typical (W)
0.25/0.25

Voltage Tolerance, Inc. Noise (5V / 12V
±5% / ±10%

Environmental/Temperature

Operating Temperature (ambient, min°C)
0

Operating Temperature (drive reported, max °C)
65

Nonoperating Temperature (ambient, min / max °C)
-40/70

Environmental/Shock

Shock, Operating/Nonoperating: 2ms (max)
80Gs/300Gs

Environmental/Acoustics

Acoustics, Idle (typical, measured in Idle 1 state) (dBA)
26

Acoustics, Seek (typical) (dBA)
28









Rotational Speed
5400RPM

Data Transfer
S
