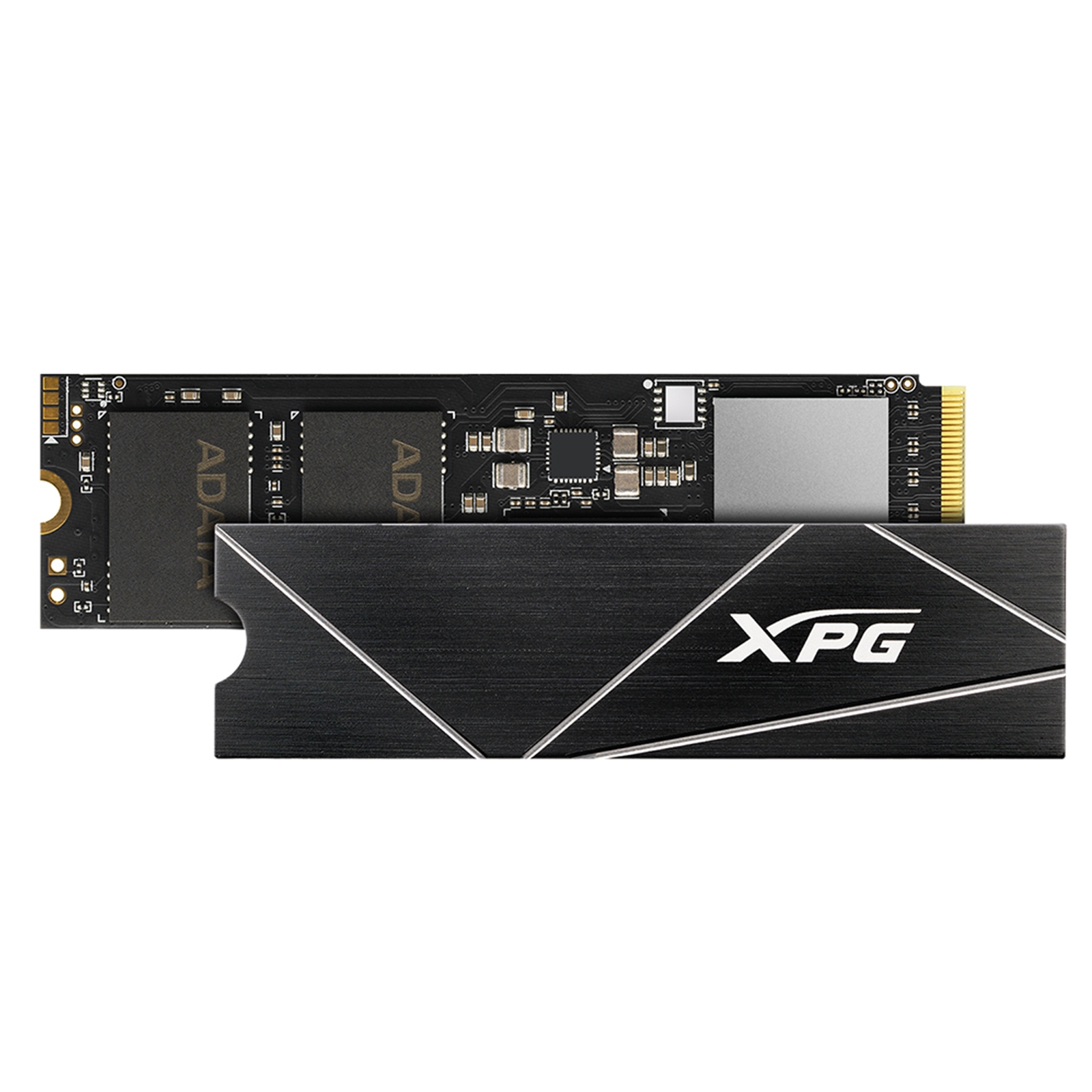

Enjoy next-gen performance with the XPG GAMMIX S70 BLADE PCIe Gen4x4 M.2 2280 solid state drive (SSD). Sporting the latest PCIe Gen4x4 interface and a host of other capabilities, this SSD is capable of reaching blazing-fast read/write speeds of up to 7,400/6,800MB per second.
Features
- R/W speed up to 7,400/6,800MB/s for PC/laptop
- Ultra-fast PCIe Gen4 x4 interface
- Compliant with NVMe 1.4
- Work with PS5
- Read speed up to 6,100MB/s for PS5
- High-temperature resistant aluminum heat sink which is able to reduce temperatures by up to 20%
- Capacity up to 4TB
- SLC Caching and DRAM cache buffer
- Advanced LDPC ECC Technology
- E2E Data Protection and RAID Engine
- AES 256-bit encryption support
- Compact M.2 2280 form factor – ideal for gaming and high-end desktops
Specifications
Capacity
1TB
Weight
10g / 0.35oz (with heat sink), 7g / 0.24oz (without heat sink)
NAND Flash
3D NAND
Interface
PCIe Gen4 x4
Form Factor
M.2 2280
Dimensions (L x W x T)
80 x 22 x 4.3mm (with heatsink), 80 x 22 x 3.3mm (without heatsink)
Controller
IG5236A1
Sequential read/write (Max.)
Write: 5500MB/s
Read: 7400MB/s
Terabytes Written (TBW)(Max. capacity)
740TB
MTBF
2,000,000 hours
4K random read/write IOPS (Max.)
740K/740K
Warranty
5-year limited
Operating Temperature
0C~70C
Certifications
CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS
Storage Temperature
-40C~85C
Shock Resistance
1500G/0.5ms
Warranty:
5 Years Return To Base Warranty
Return-to-Base warranty returns are processed within 14 business days of confirmed date of receipt - see our
Returns Policy for more information.
There are currently no data sheets available for this product.
