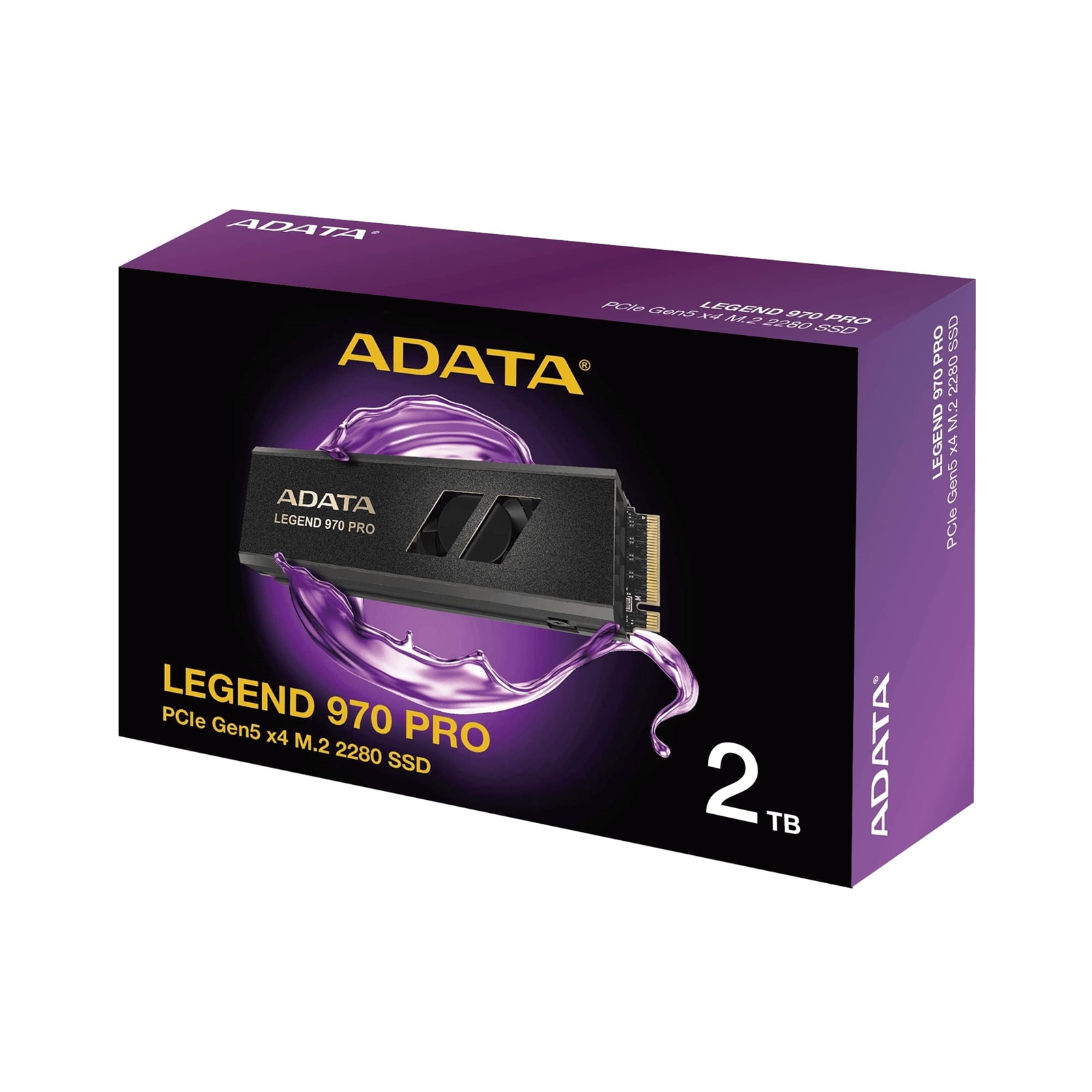

LEGEND 970 PRO PCIe Gen5 x4 M.2 2280 Solid State Drive
PCIe Gen5 x4 transmission interface
Up to 14,000/11,000MB/s sequential read/write speed
Dual-layer aluminum alloy and fan forms an active air cooling system
Compared with a fanless heat sink, temperatures significantly reduced by 20%
2TB capacity
Active cooling is powered directly from the M.2 slot, no additional charging cable needed
Operates long-term without slowing down or crashing
Supports latest Intel and AMD platforms
5-year warranty
Capacity
2TB
Form factor
M.2 2280
NAND Flash
3D TLC
Controller
IG5666
Dimensions (L x W x H)
80.6 x 24.2 x 17.9mm / 3.17 x 0.95 x 0.7inch
Weight
52.1g/1.84oz
Interface
PCIe Gen5 x4
Sequential Read (Max)
Up to 14,000MB/s*
Sequential Write (Max)
Up to 11,000MB/s*
4KB Random Read IOPS(Max)
Up to 1,800K*
4KB Random Write IOPS(Max)
Up to 1,300K*
Operating temperature
0°C - 70°C
Storage temperature
-40°C-85°C
Shock resistance
1,500G/0.5ms
MTBF
1,600,000 hours
Terabytes Written (TBW)
2,960TB**
Warranty
5-year limited warranty***
Warranty:
5 Years Return To Base Warranty
